Part Number: MAD7912BGR
/
Vendor ID Number: 90
/
Custom:

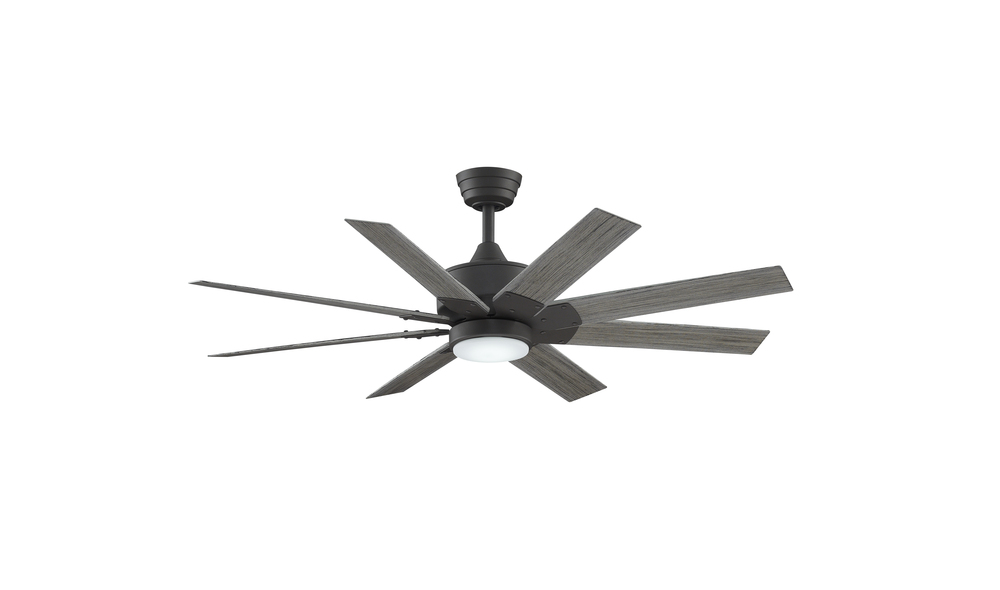

Levon Custom DC Motor - GR
by Fanimation
Call For Price
Call for Availability
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 15.58"
Width: 52.00"
Length: 52.00"
Product Overview
The Levon Custom by Fanimation is not only stylish, but also economically smart and environmentally friendly. The Levon Custom is in an elite class of fans that have earned the Energy Star rating by meeting strict energy efficiency guidelines. In essence, The Levon Custom will add contemporary sophistication to your home while conserving your financial resources and the environment. The Levon Customs eight blades can be operated on three forward and reverse speeds to create just the right breeze for any temperature. The Levon Custom is available in multiple damp rated finishes and can accommodate a ceiling slope up to 42 degrees. *Damp Rated for indoor or outdoor use *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use
The Levon by Fanimation is not only stylish, but also economically smart and environmentally friendly. The Levon is in an elite class of fans that have earned the Energy Star rating by meeting strict energy efficiency guidelines. In essence, The Levon will add contemporary sophistication to your home while conserving your financial resources and the environment. The Levons eight blades can be operated on three forward and reverse speeds to create just the right breeze for any temperature. The Levon is available in oil rubbed bronze finish with walnut blades and accommodates a ceiling slope up to 30 degrees. *Damp Rated for indoor or outdoor use *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use
Product Availability
-
Item is usually in stock, but we'll be in touch if there's a problem
Additional Information
3 Speed Dc Motor With Reverse Switch, Fan Speed, Light Controls, Sleep Timer, Home Away, Fresh Air And Safe Exit
8244 Cfm On High
Compatible With Most Smart Home Devices (required Controls Sold Separately)
Energy Star Most Efficient 2022
Set Of (8) Damp Rated Blades With Multiple Finish Options Available And 18 Watt Led Cct Select Light Kit Available (sold Separately)
Tr305 Handheld Remote With 23a Battery Included
Info & Guides
Technical Details
Energy Information at High Speed
Airflow:
8244 Cubic Feet per Minute
Electricity Rate:
31 Watts (excluded lights)
Airflow Efficiency:
270 Cubic Feet Per Minute Per Watt
Details
Category:
Fans
Subcategory:
Fan Motor Without Blades
Finish:
Gray /vendors/vendorImages gray.jpg
Miscellaneous /vendors/vendorImages miscellaneous.jpg
Style:
Traditional
Option:
Energy Star /vendors/vendorImages energy star.jpg
Damp Rated
Number of Blades:
8+ Blades
Location Rating:
Damp Rated
Category:
Fan-Multi
Finish:
Matte Greige
Option:
Damp
Family:
Levon Custom
Voltage:
120 V
Additional Info:
3 speed DC motor with reverse switch, fan speed, light controls, sleep timer,home away, fresh air an
7880 CFM on High
Compatible with most Smart home devices (required controls sold separately)
ENERGY STAR Most Efficient 2020
Set of (8) blades with Damp Rated optional finishes included; optional 18 watt LED light kit (sold s
TR205D handheld remote with CR2032 batteries included
Air Flow CFM:
8244
Air Flow Efficiency:
270
Amperage:
0.4
Blade Pitch:
14
Canopy:
5.75 Dia x 2.57 H
Diameter:
9.06
Down Rod Included:
6
Electricity Used:
31
Harmonized Codes:
8414.51.3000
Length:
52, 64, 72
Light Kit Included:
No
Max Length:
72
Max Width:
72
Motor Fan Speed:
16
Motor RPM:
95
Motor Size:
165nm
Motor Type:
DC
Remote Control Included:
TR205D
Ship Carton Height:
11.3
Ship Carton Length:
20
Ship Carton Width:
12.05
Ship Weight:
21.94
Sold By:
Each
Warranty:
Limited Lifetime
Weight:
19.67
Airflow Efficiency Low:
784
Airflow Efficiency Medium:
445
Avg Airflow Efficiency:
291
Avg CFM Energy:
6177
Avg Energy Use Watts:
21
Avg Estimated Yearly Energy Cost:
6
Avg Estimated Yearly Energy Cost on HIGH:
9
Canopy Diameter:
5.75 Dia
Canopy Height:
2.57 H
Cap Included:
No
Carton Cubic Feet:
1.58
Cartons Per Unit:
1
Case Height:
11.3
Case Length:
20
Case Quantity:
1
Case Weight Pounds:
21.94
Case Width:
12.05
CEC Uploaded:
Yes
Ceiling To Blade Edge:
14.4
Ceiling To Bottom:
15.58
16.27
CFM Low:
4090
CFM Medium:
6158
Compatible Accessories:
CCK8002GRW, DR1-12GR, DR1-18GR, DR1-24GR, DR1-36GR, DR1-48GR, DR1-60GR, DR1-72GR, DR1-CPGR, SCB1-52
Compatible Blades:
B7912N, B7912WA, B7912WP, B7913BN, B7913CYWA, B7914BN, B7914CYWA, BPW7912BL, BPW7912BN, BPW7912CY, BPW7912DWA, BPW7912MW, BPW7912N, BPW7912WE, BPW7912WP, BPW7912WW, BPW7913BL, BPW7913BN, BPW7913CY
BPW7913DWA, BPW7913MW, BPW7913N, BPW7913WE, BPW7913WP, BPW7913WW, BPW7914BL, BPW7914BN, BPW7914CY, BPW7914DWA, BPW7914MW, BPW7914N, BPW7914WE, BPW7914WP, BPW7914WW
Compatible Light Kits:
LK7912BGR
Compatible Wall Controls:
TW306
Country of Origin:
China
Current Draw High:
0.4
Current Draw Low:
0.08
Current Draw Medium:
0.21
Damp Rated:
Yes
DOE Classification:
LSSD
DOE-FTC Uploaded:
Yes
DOEFTC Uploaded:
Yes
Downrod Length:
6
Exempt from DOE Procedure:
No
Fan Energy Star:
Yes
Housing Diameter:
9.06
Included Control:
TR305
Included Control Type:
Handheld
Leadwire:
80
Max Ceiling Slope:
42
Max Watt:
31
Maximum Slope Degree:
27
Motor Finish Method Type:
Painted
Motor Reversible:
Yes
Number of Blades:
8
Number Of Speeds:
16
Regulated Product:
Yes
Reverse Switch Location:
Control
RPM High (VI):
95
RPM Low (II):
48
RPM Medium (IV):
72
RPM Medium IV:
124
Safety Rating:
UL Approved, cUL Approved
Voltage Cycles:
60 hz
Watts Low:
5
Watts Medium:
14
Manufactured By:
