Part Number: MAD8152BLW
/
Vendor ID Number: 90
/
Custom:

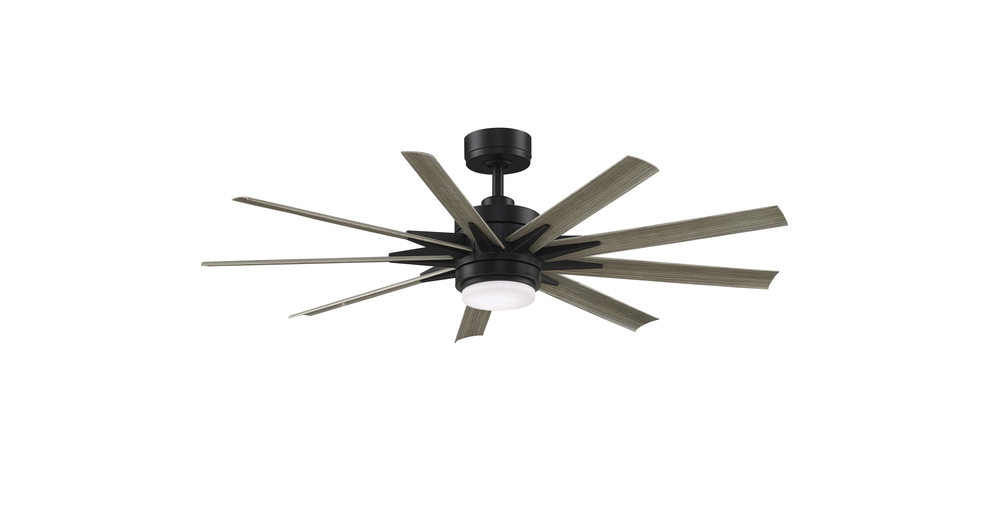

Odyn Custom Motor - BLW with LED Light Kit
by Fanimation
Call For Price
Call for Availability
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 22.64"
Width: 56.00"
Length: 56.00"
Product Overview
The Odyn, by Fanimation, knows its the boss whenever it enters a room. Its magnificence commands immediate attention and will surely dazzle onlookers. The Odyn's DC motor allows this fan to consume up to 70% less energy. The Odyn can accommodate up to an 84 inch blade sweep and operates on six forward and reverse speeds. The fan includes a remote control, integrated LED with CCT Select Temperature settings, and a cap for use without the light. Blades sold separately. *Wet Rated for indoor or outdoor use *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use
The Odyn, by Fanimation, knows its the boss whenever it enters a room. Its magnificence commands immediate attention and will surely dazzle onlookers. The Odyn's DC motor allows this fan to consume up to 70% less energy. The Odyn can accommodate up to an 84 inch blade sweep and operates on six forward and reverse speeds. The fan includes a remote control and a cap for use without light. Blades sold separately. *Wet Rated for indoor or outdoor use *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use
Product Availability
-
Item is usually in stock, but we'll be in touch if there's a problem
Additional Information
18 Watt Led Cct Select Light Kit With Cover And Bulb Included; Set Of (9) Wet Rated Blades With Multiple Finish Options Available (sold Separately)
8813 Cfm On High
Compatible With Most Smart Home Devices (required Controls Sold Separately)
Dc Motor With Reverse Switch, Variable Speeds, Light Controls, Sleep Timer, Home Away, Fresh Air And Safe Exit Features
Energy Star Most Efficient 2022
Tr305 Handheld Remote With 23a Battery Included
Info & Guides
Technical Details
Energy Information at High Speed
Airflow:
8741 Cubic Feet per Minute
Electricity Rate:
34 Watts (excluded lights)
Airflow Efficiency:
329 Cubic Feet Per Minute Per Watt
Details
Category:
Fans
Subcategory:
Fan Motor Without Blades
Finish:
Black /vendors/vendorImages black.jpg
Style:
Traditional
Option:
Energy Star /vendors/vendorImages energy star.jpg
Wet Rated
LED
Glass Finish or Style:
Frosted
Opal
Number of Blades:
8+ Blades
Location Rating:
Wet Rated
Wattage:
18w
Category:
Fan-Multi
Finish:
Black
Option:
Wet
Family:
Odyn Custom
Glass:
Opal Frosted
Voltage:
120 V
Number of Bulbs:
1 Bulbs
Additional Info:
18 watt LED light kit with cover and bulb included; Set of 9 Wet Rated blades with multiple finish o
8813 CFM on High
Compatible with most Smart home devices (required controls sold separately)
DC motor with reverse switch, variable speeds, light controls, sleep timer, home away, fresh air and
ENERGY STAR Most Efficient 2020
TR205D handheld remote with CR2032 batteries included
Air Flow CFM:
8741
Air Flow Efficiency:
329
Amperage:
0.44
Blade Pitch:
12
Bulb Type:
18 Watt LED Module
Canopy:
6.46 Dia x 2.58 H
Diameter:
8.27
Down Rod Included:
6
Electricity Used:
34
Harmonized Codes:
8414.51.3000
Kelvin:
3000
Length:
56, 64, 72
Light Kit Included:
Yes
Lumens / Light Output:
1500
Max Length:
72
Max Width:
72
Motor Fan Speed:
16
Motor RPM:
84
Motor Size:
DC165NM
Motor Type:
DC
Remote Control Included:
TR205D
Ship Carton Height:
10.91
Ship Carton Length:
27.48
Ship Carton Width:
14.8
Ship Weight:
28.89
Sold By:
Each
Warranty:
Limited Lifetime
Weight:
25.91
Airflow Efficiency Low:
978
Airflow Efficiency Medium:
581
Avg Airflow Efficiency:
347
Avg CFM Energy:
7476
Avg Energy Use Watts:
22
Avg Estimated Yearly Energy Cost:
6
Avg Estimated Yearly Energy Cost on HIGH:
8
Blade Reversible:
No
Bulb Base:
Connector Pin
Bulb CRI:
90
Bulb Wattage:
18
Canopy Diameter:
6.46 Dia
Canopy Height:
2.58 H
Cap Included:
Yes
Carton Cubic Feet:
2.57
Cartons Per Unit:
1
Case Height:
10.91
Case Length:
27.48
Case Quantity:
1
Case Weight Pounds:
28.89
Case Width:
14.8
CEC Uploaded:
Yes
Ceiling To Blade Edge:
18.46
Ceiling To Bottom:
22.33
22.64
CFM Low:
3138
CFM Medium:
6086
Compatible Accessories:
CCK8002BLW, DR1-CPBL, DR1SS-12BLW, DR1SS-18BLW, DR1SS-24BLW, DR1SS-36BLW, DR1SS-48BLW, DR1SS-60BLW, DR1SS-72BLW, SCB1-52
Compatible Blades:
BPW8152-56BLW, BPW8152-56BNW, BPW8152-56DWAW, BPW8152-56MWW, BPW8152-56WEW, BPW8152-64BLW, BPW8152-64BNW, BPW8152-64DWAW, BPW8152-64MWW, BPW8152-64WEW, BPW8152-72BLW, BPW8152-72BNW, BPW8152-72DWAW, BPW8152-72MWW, BPW8152-72WEW
Compatible Wall Controls:
TW306
Country of Origin:
China
CRI:
90
Current Draw High:
0.36
Current Draw Low:
0.06
Current Draw Medium:
0.16
DOE Classification:
LSSD
DOE-FTC Uploaded:
Yes
DOEFTC Uploaded:
Yes
Downrod Length:
12
Exempt from DOE Procedure:
No
Fan Energy Star:
Yes
Housing Diameter:
8.27
Included Control:
TR305
Included Control Type:
Handheld
Leadwire:
80
Light Kit Energy Star:
Yes
Max Ceiling Slope:
27
Max Watt:
27
Maximum Slope Degree:
27
Motor Finish Method Type:
Painted
Motor Reversible:
Yes
Number of Blades:
9
Number Of Speeds:
16
Regulated Product:
Yes
Reverse Switch Location:
Control
RPM High (VI):
78
RPM Low (II):
29
RPM Medium (IV):
56
Safety Rating:
UL Approved, cUL Approved
Voltage Cycles:
60 hz
Watts Low:
3
Watts Medium:
10
Watts Per Bulb:
18
Wet Rated:
Yes
Manufactured By:
