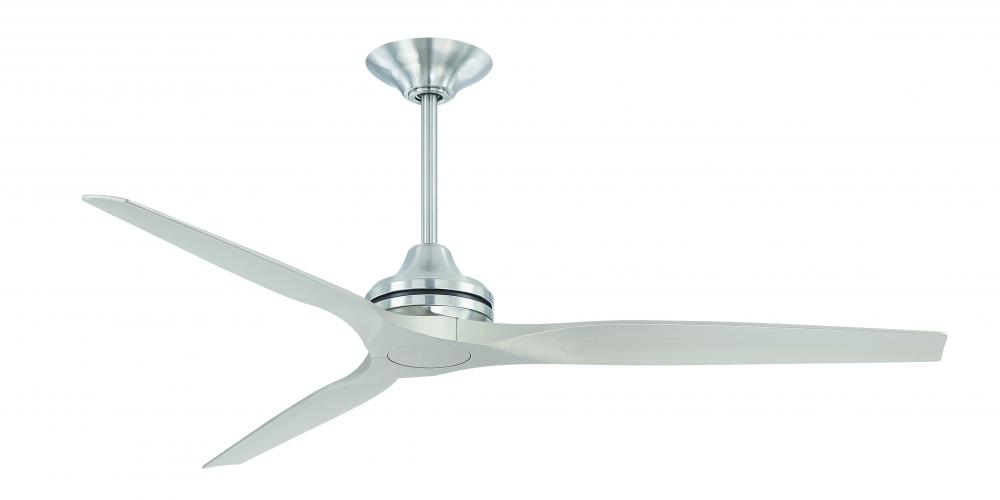

The Spitfire DC Custom features an exquisite three bladed design with many rich finish offerings to choose from. The Spitfire DC Custom is available in a 64, 72, 84 and 96 inch blade sweep (sold separately), and an optional LED light kit that features the correlated color temperature (CCT) Select functionality (sold separately). Handheld remote included. *Damp rated for indoor or outdoor use. *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use

Product Availability

Item appears to be in stock and ready to ship

Additional Information

12900 Cfm On High

16 Speed Dc Motor With Reverse Switch, Fan Speed, Light Controls, Fresh Air, Safe Exit, Sleep Timer And Home Away Features

Compatible With Most Smart Home Devices (recquired Controls Sold Separately)

Energy Star Most Efficient 2022

Set Of (3) Damp Rated Blades With Multiple Finishes Available And 18 Watt Cct Select Led Light Kit Available (sold Separately)

Tr305 Handheld Remote With 23a Battery Included

Info & Guides

Click Here to View Spec Sheet Details

Click Here to View Owners Manual

Technical Details

Energy Information at High Speed

Airflow:

12900 Cubic Feet per Minute

Electricity Rate:

33 Watts (excluded lights)

Airflow Efficiency:

386 Cubic Feet Per Minute Per Watt

Details

Category:

Fans

Subcategory:

Ceiling Fans

Finish:

Nickel /vendors/vendorImages nickel.jpg

Style:

Traditional

Option:

Damp Rated

Number of Blades:

3 Blades

Location Rating:

Damp Rated

Wattage:

Category:

Fan-Multi

Finish:

Brushed Nickel

Option:

Damp

Family:

Spitfire

Voltage:

120 V

Additional Info:

12900 CFM on High

16 speed DC motor with reverse switch, fan speed, light controls, Fresh Air, Safe Exit, Sleep Timer and Home Away features

CHINA

Compatible with most smart home devices (recquired controls sold separately)

Energy Star Most Efficient 2022

Set of (3) Damp rated blades with multiple finishes available and 18 watt CCT Select LED light kit available (sold separately)

TR305 handheld remote with 23A battery included

Air Flow CFM:

12900

Air Flow Efficiency:

386

Amperage:

0.47

Blade Pitch:

Canopy:

8.19 Dia x 2.2 H

Diameter:

8.07

Down Rod Included:

Electricity Used:

Harmonized Codes:

8414.51.3000

Length:

64, 72, 84, 96

Light Kit Included:

Max Length:

Max Width:

Motor Fan Speed:

Motor RPM:

112

Motor Size:

153 x 25

Motor Type:

Remote Control Included:

TR305

Ship Carton Height:

10.94

Ship Carton Length:

14.37

Ship Carton Width:

10.43

Ship Weight:

15.61

Sold By:

Each

Warranty:

Limited Lifetime

Weight:

14.18

Airflow Efficiency Low:

1049

Airflow Efficiency Medium:

880

Avg Airflow Efficiency:

376

Avg CFM Energy:

7429

Avg Energy Use Watts:

Avg Estimated Yearly Energy Cost:

Avg Estimated Yearly Energy Cost on HIGH:

Blade Pitch Degrees:

Canopy Diameter:

8.19 Dia

Canopy Height:

2.2 H

Cap Included:

Carton Cubic Feet:

0.95

Case Height:

10.94

Case Length:

14.37

Case Quantity:

Case Weight Pounds:

15.61

Case Width:

10.43

CEC Uploaded:

Yes

Ceiling To Blade Edge:

19.42

Ceiling To Bottom:

19.42

21.08

CFM Low:

2958

CFM Medium:

7355

Compatible Accessories:

CCK6721BN, DR1-12BN, DR1-18BN, DR1-24BN, DR1-36BN, DR1-48BN, DR1-60BN, DR1-72BN, DR1-CPBN, SCK1-52BN

Compatible Blades:

B6720-64BL, B6720-64BN, B6720-64DF, B6720-64DWA, B6720-64MW, B6720-64N, B6720-64WE, B6720-64WK, B6720-64WW, B6720-72BL, B6720-72BN, B6720-72DF, B6720-72DWA, B6720-72MW, B6720-72N, B6720-72WE, B6720-72WK, B6720-72WW

B6720-84BL, B6720-84BN, B6720-84DF, B6720-84DWA, B6720-84MW, B6720-84N, B6720-84WE, B6720-84WK, B6720-84WW, B6720-96BL, B6720-96BN, B6720-96DF, B6720-96DWA, B6720-96MW, B6720-96N, B6720-96WE, B6720-96WK, B6720-96WW

Compatible Light Kits:

LK6721BDCBN

Compatible Wall Controls:

TW306

Country of Origin:

China

Current Draw High:

0.47

Current Draw Low:

0.06

Current Draw Medium:

0.14

Damp Rated:

Yes

DOE Classification:

LSSD

DOEFTC Uploaded:

Yes

Downrod Length:

Exempt from DOE Procedure:

Fan Energy Star:

Yes

Housing Diameter:

8.07

Included Control:

TR305

Included Control Type:

Handheld

Leadwire:

Light Kit Energy Star:

Yes

Max Ceiling Slope:

Max Watt:

Maximum Slope Degree:

Motor Finish Method:

Plated

Motor Finish Method Type:

Plated

Motor Reversible:

Yes

Number of Blades:

Number Of Speeds:

Regulated Product:

Yes

Reverse Switch Location:

Control

RPM High (VI):

112

RPM Low (II):

RPM Medium (IV):

Safety Rating:

UL Approved, cUL Approved

Voltage Cycles:

60 hz

Watts Low:

Watts Medium:

Manufactured By:

Fanimation

Spitfire DC Motor - BN by Fanimation

Spitfire DC Motor - BN
by Fanimation
