Item Sales Info
Part Number: MAD8515DZW
/
Vendor ID Number: 90
/
Custom:

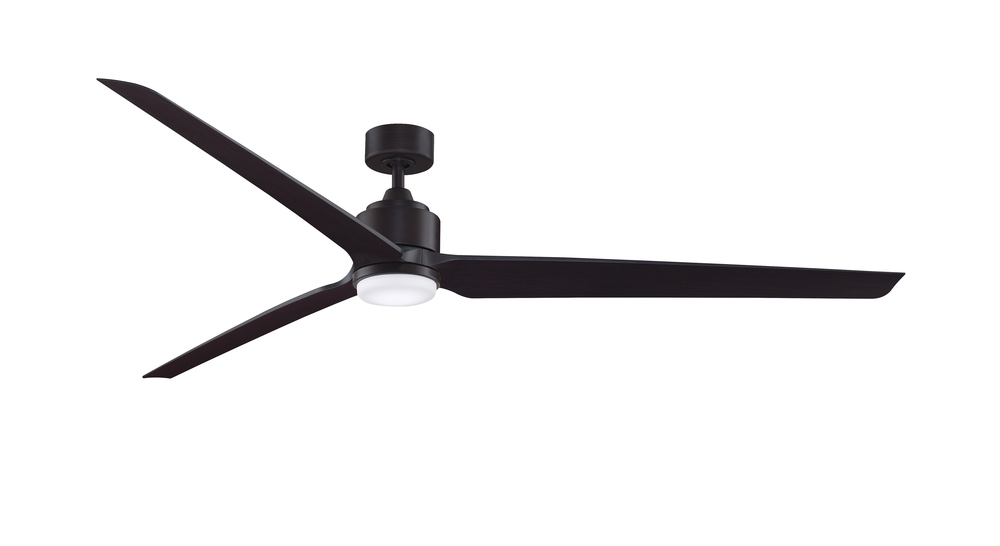

TriAire Custom Motor - DZW
by Fanimation
Call For Price
Call for Availability
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 15.92"
Width: 64.00"
Length: 64.00"
Product Overview
The TriAire Custom by Fanimation fits any style in any location. With eight different blade sweeps in multiple finishes, you can create the TriAire Custom that fits your space. This wet rated ceiling fan has a 31 speed DC motor. LED with CCT Select Light kit, blades and motor sold separately. *Wet rated for indoor or outdoor use *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use
The TriAire Custom by Fanimation fits any style in any location. With eight different blade sweeps in multiple finishes, you can create the TriAire Custom that fits your space. This wet rated ceiling fan has a 31 speed DC motor. Light kit, blades and motor sold separately. *Wet rated for indoor or outdoor use *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use
Product Availability
-
Item is usually in stock, but we'll be in touch if there's a problem
Additional Information
8666 Cfm On High
Compatible With Most Smart Home Devices (required Controls Sold Separately)
Dc Motor With Reverse Switch, Variable Speeds, Light Controls, Sleep Timer, Home Away, Fresh Air And Safe Exit Features
Energy Star Most Efficient 2022
Set Of (3) Wet Rated Blades With Multiple Finish Options Available And 18 Watt Led Cct Select Light Kit Available (sold Separately)
Tr305 Handheld Remote With 23a Battery Included
Info & Guides
Technical Details
Energy Information at High Speed
Airflow:
10387 Cubic Feet per Minute
Electricity Rate:
30 Watts (excluded lights)
Airflow Efficiency:
342 Cubic Feet Per Minute Per Watt
Details
Category:
Fans
Subcategory:
Fan Motor Without Blades
Finish:
Bronze /vendors/vendorImages bronze.jpg
Style:
Traditional
Option:
Energy Star /vendors/vendorImages energy star.jpg
Wet Rated
Number of Blades:
3 Blades
Subfinish:
Dark Bronze
Location Rating:
Wet Rated
Wattage:
9w
Category:
Fan-Multi
Finish:
Dark Bronze
Option:
Wet
Family:
TriAire Custom
Voltage:
120 V
Additional Info:
8666 CFM on High
Compatible with most Smart home devices (required controls sold separately)
DC motor with reverse switch, variable speeds, light controls, sleep timer, home away, fresh air and
ENERGY STAR Most Efficient 2020
Set of 3 Wet Rated blades with multiple finish options and 18 watt LED light kit (sold separately)
TR205D handheld remote with CR2032 batteries included
Air Flow CFM:
10387
Air Flow Efficiency:
342
Amperage:
0.43
Blade Pitch:
14
Canopy:
5.75 Dia x 2.57 H
Diameter:
7.09
Down Rod Included:
8
Electricity Used:
30
Harmonized Codes:
8414.51.3000
Length:
64, 72, 84
Light Kit Included:
No
Max Length:
84
Max Width:
84
Motor Fan Speed:
16
Motor RPM:
100
Motor Size:
153 x 25
Motor Type:
DC
Remote Control Included:
TR205D
Ship Carton Height:
8.35
Ship Carton Length:
15.94
Ship Carton Width:
8.86
Ship Weight:
15.08
Sold By:
Each
Warranty:
Limited Lifetime
Weight:
13.67
Airflow Efficiency Low:
723
Airflow Efficiency Medium:
757
Avg Airflow Efficiency:
378
Avg CFM Energy:
7827
Avg Energy Use Watts:
21
Avg Estimated Yearly Energy Cost:
6
Avg Estimated Yearly Energy Cost on HIGH:
8
Canopy Diameter:
5.75 Dia
Canopy Height:
2.57 H
Cap Included:
Yes
Carton Cubic Feet:
0.68
Cartons Per Unit:
1
Case Height:
8.35
Case Length:
15.94
Case Quantity:
1
Case Weight Pounds:
15.08
Case Width:
8.86
CEC Uploaded:
Yes
Ceiling To Blade Edge:
16.42
Ceiling To Bottom:
15.92
18.12
CFM Low:
1734
CFM Medium:
6891
Compatible Accessories:
CCK8002DZW, DR1-CPDZ, DR1SS-12DZW, DR1SS-18DZW, DR1SS-24DZW, DR1SS-36DZW, DR1SS-48DZW, DR1SS-60DZW, DR1SS-72DZW, SCB1-52
Compatible Blades:
BPW8515-64BLW, BPW8515-64DWAW, BPW8515-64MWW, BPW8515-64SLW, BPW8515-64WEW, BPW8515-72BLW, BPW8515-72DWAW, BPW8515-72MWW, BPW8515-72SLW, BPW8515-72WEW, BPW8515-84BLW, BPW8515-84DWAW, BPW8515-84MWW, BPW8515-84SLW, BPW8515-84WEW
Compatible Light Kits:
LK8514DZW
Compatible Wall Controls:
TW306
Country of Origin:
China
Current Draw High:
0.43
Current Draw Low:
0.05
Current Draw Medium:
0.14
DOE Classification:
LSSD
DOE-FTC Uploaded:
Yes
DOEFTC Uploaded:
Yes
Downrod Length:
8
Exempt from DOE Procedure:
No
Fan Energy Star:
Yes
Housing Diameter:
7.09
Included Control:
TR305
Included Control Type:
Handheld
Leadwire:
80
Max Ceiling Slope:
27
Max Watt:
30
Maximum Slope Degree:
27
Motor Finish Method Type:
Painted
Motor Reversible:
Yes
Number of Blades:
3
Number Of Speeds:
16
Regulated Product:
Yes
Reverse Switch Location:
Control
RPM High (VI):
100
RPM Low (II):
28
RPM Medium (IV):
66
Safety Rating:
UL Approved, cUL Approved
Voltage Cycles:
60 hz
Watts Low:
2
Watts Medium:
9
Wet Rated:
Yes
Manufactured By:
Fanimation
