Item Sales Info
Part Number: S11868
/
Vendor ID Number: 27
/
Custom:

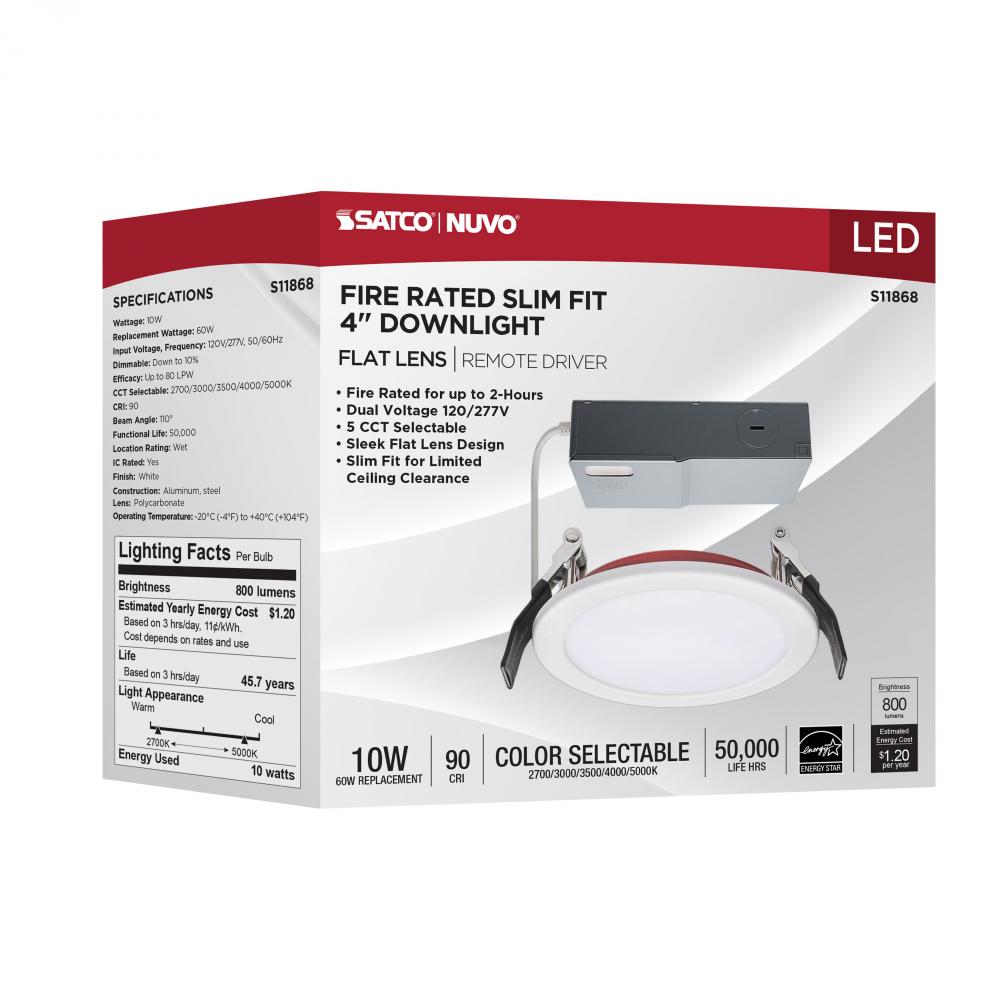

10 Watt LED; Fire Rated 4 Inch; Direct Wire Downlight; Round Shape; White Finish; CCT Selectable;
by Satco Products Inc.
Call For Price
4058 In Stock
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty

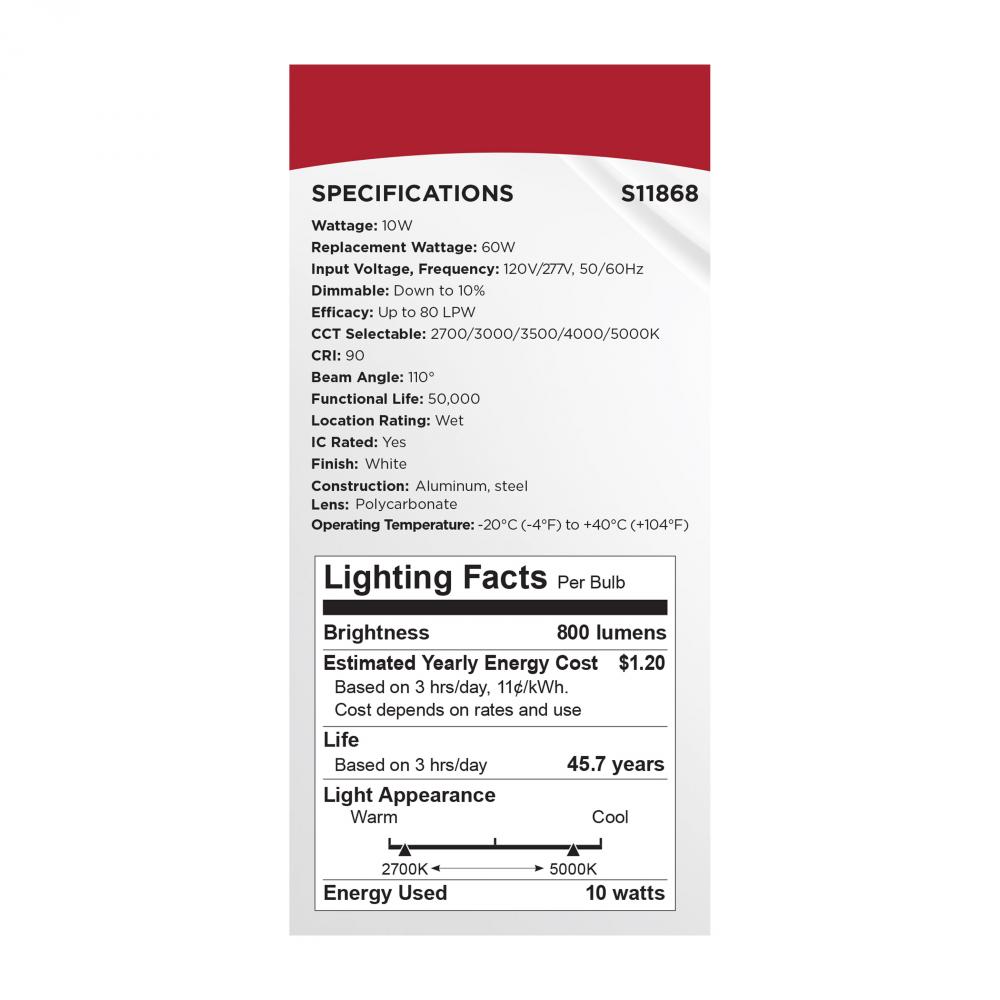

Product Specification
Dimensions
Height: 0.69"
Width: 4.75"
Finish
White / Red
Product Overview

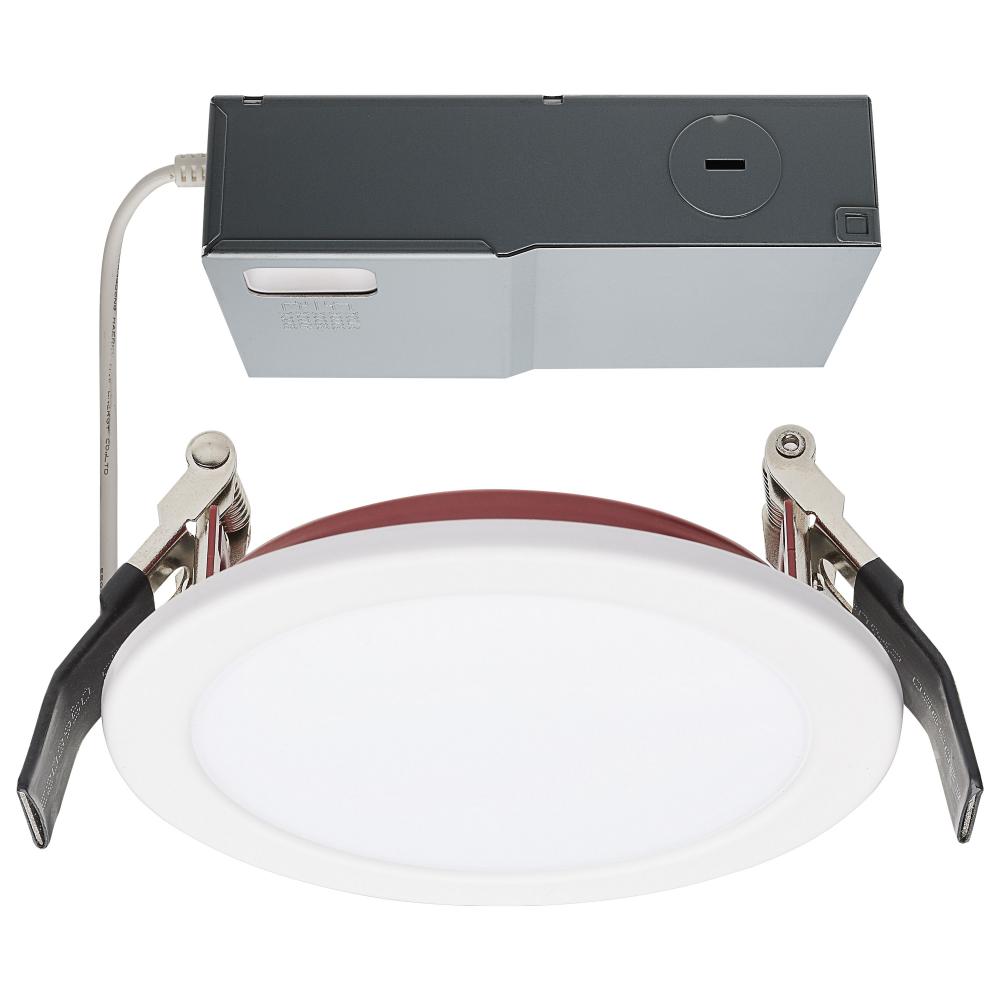

10 Watt LED; Fire Rated 4 Inch; Direct Wire Downlight; Round Shape; White Finish; CCT Selectable; 120-277 Volts; Dimmable
Product Availability
-
Item appears to be in stock and ready to ship
Technical Details
Details
Category:
Recessed Ltg.
Subcategory:
Other Recessed Ltg.
Finish:
Combination Finishes /vendors/vendorImages combinations_finishes.jpg
White /vendors/vendorImages white.jpg
Red /vendors/vendorImages red.jpg
Option:
Energy Star /vendors/vendorImages energy star.jpg
LED
Prop 65 /vendors/vendorImages prop65.png
Finish:
White / Red
Category:
Recessed
Sub Category:
Direct Wire
Style:
Specialty
Additional Info:
2HR Fire Rated: Tested to comply with UL 263/ASTM E119/CAN-ULC S101-07; White Trim/Red Backplate
Bulb Hours:
50000
Bulb Kelvin:
Warm White to Natural Light
Bulb Shape:
Integrated LED
Bulb Type:
LED
Diameter:
4.75
Dimmable:
Yes-Dimmable
Harmonized Codes:
9405.11.6010
Lumens:
800L
Ship Carton Height:
6.1
Ship Carton Length:
5.83
Ship Carton Width:
2.68
Warranty:
5 Year Limited - Fixtures
Air Tight:
Yes
Amps:
0.083-0.036A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Spread:
110
CA Prop-65:
Lead
Carton Cubic Feet:
0.0552
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
California T24 2016 - 2022 JA8 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
California T24 Listed
Ceiling Aperture:
3.875 in. Cutout
Clearance Height:
4.134
Connection:
Direct Wired
Country Of Origin:
Cambodia
CRI:
90
Dimmable Down To:
100 to 10 percent
Dimmable Function:
0-10V Dimming
Efficacy:
80.00 LPW
Enclosure Rating:
No
ES Category:
Downlight Recessed
ES Unique ID:
ESID-2473604
FCC Compliant:
Yes

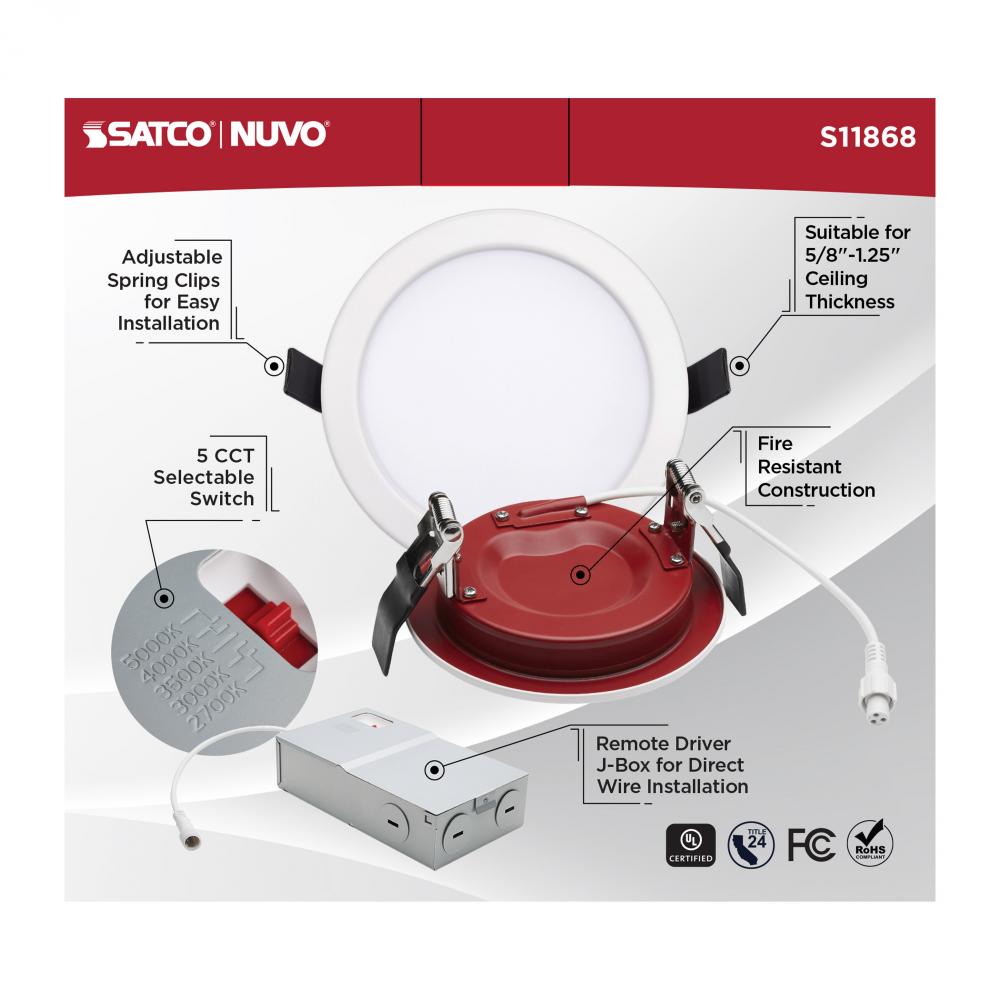

Feature 1:
Fire rated up to 2-hours
Feature 2:

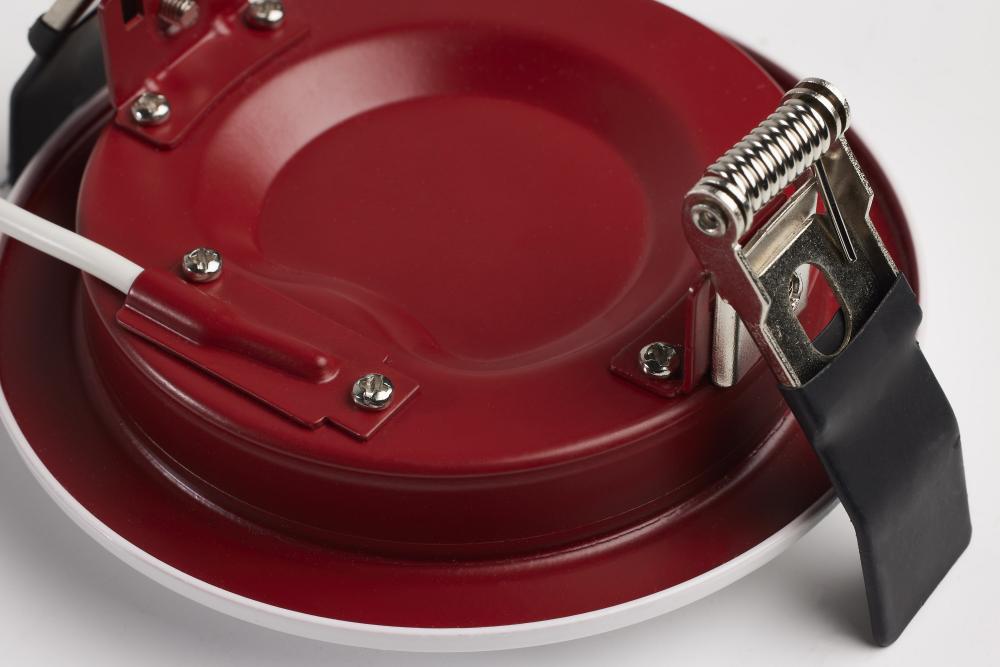

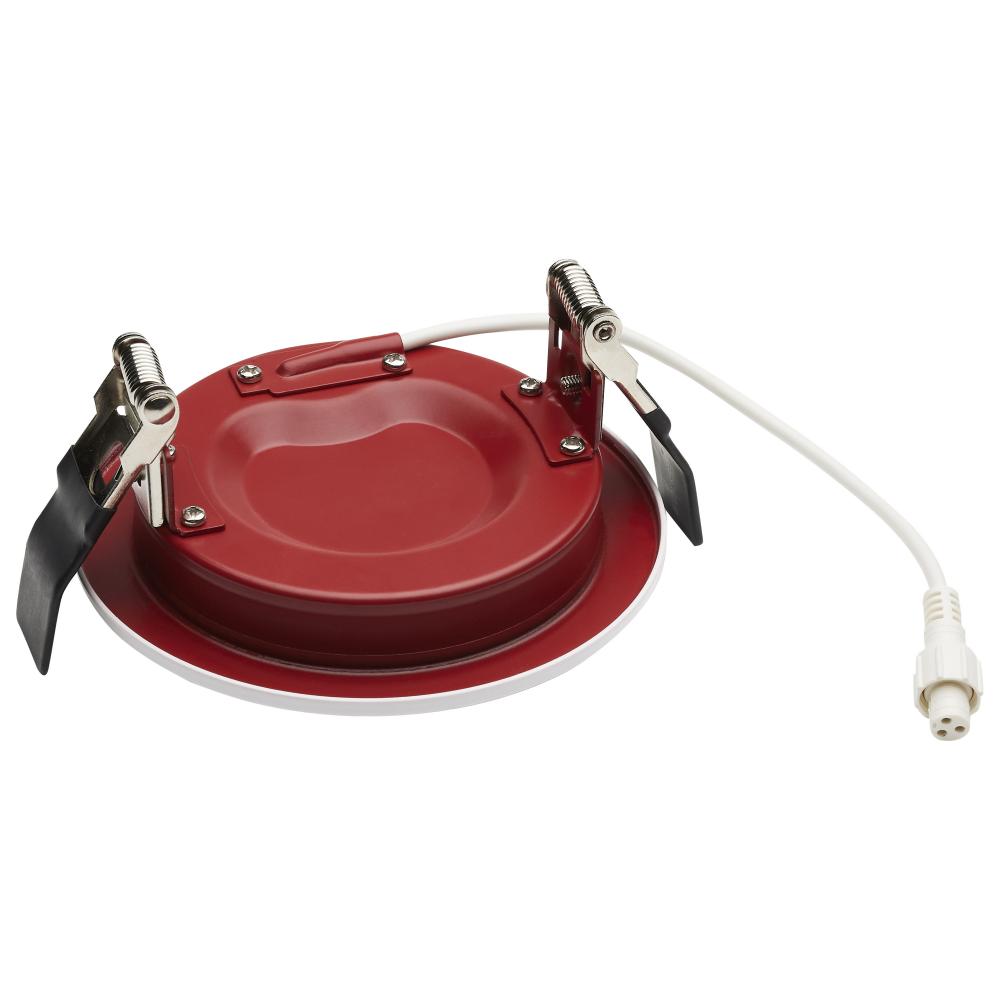

Red painted backplate for easy identification
Feature 3:
5 CCT Selectable
Feature 4:
90 CRI
Feature 5:
Wet Location Rated
Feature 6:
Dimmable
Feature 7:
IC Rated
Feature 8:
Air Tight Rated
Finish Family:
White
Fixture shape:
Round
IC Rated:
Yes
Incandescent Equivalent:
60W
Indoor Outdoor:
Indoor
IOT Enabled:
No
JA8 Compliant:
Yes

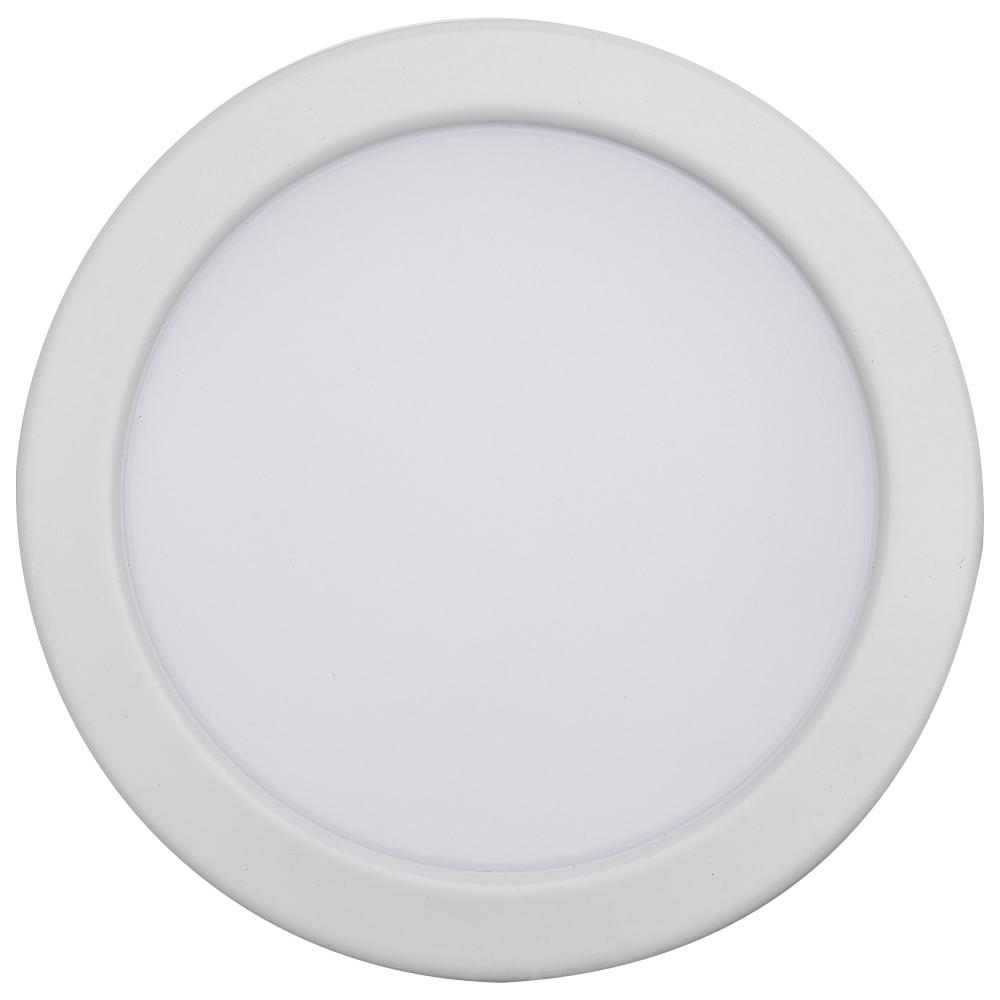

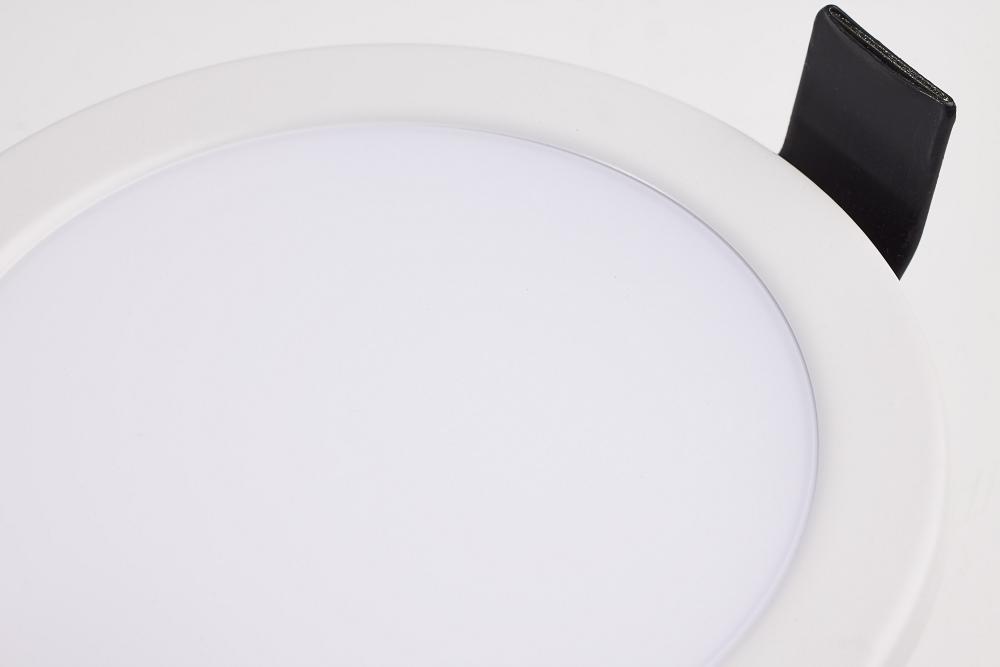

Lens Finish:
Frost
Lens Material:
Polycarbonate (PC)
Long Description:
SATCO|NUVO's Dual Mode 4 inch Flat Lens Fire Rated Downlight is the perfect solution for installations with low ceiling clearance. Designed to provide exceptional illumination, this downlight provides two hours of protection in the event of a fire. Inc
Material:
Aluminum / Steel
Max Drywall Thickness:
1.181 in.
Mounting Procedure:
Ceiling
NSF Approved:
No
Operating Frequency:
50/60Hz
Operating Temprature:
-20C (-4F) to +40C (+104F)
Pack Type:
Box
Power Factor:
>0.9
Quantity In Pack:
1
R9 Value:
61
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO's Fire Rated Downlights are the perfect solution for installations with low ceiling clearance. Designed to provide exceptional illumination, these downlights provide two hours of protection in the event of a fire. Increase safety and peace o
Safety Listing:
cULus - Certified
SDS class:
LED_Lamp
Short Description:
10WLED/4/CFR/CCT/SLF/RD/FL/RND
Sloped Ceiling Compatible:
No

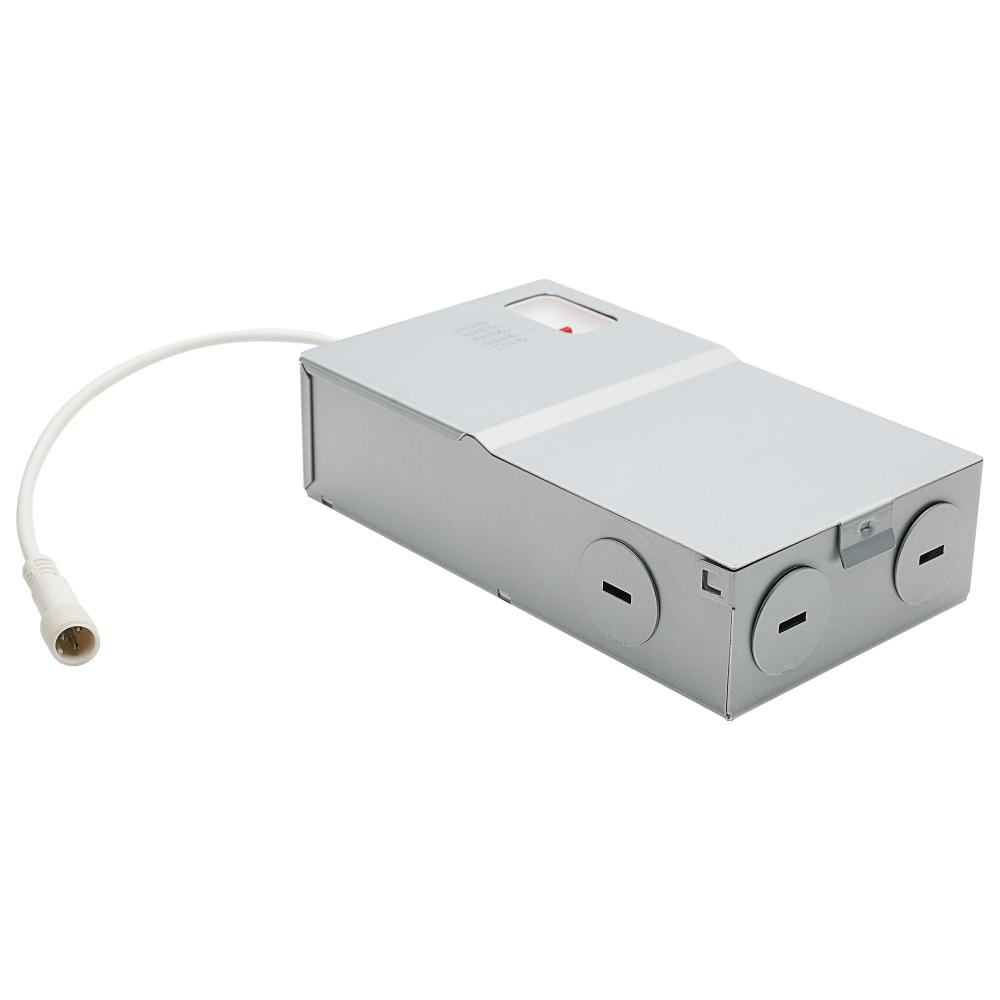

Specification Notes:
Driver Dimensions: 4.50" x 3.00" x 1.25"

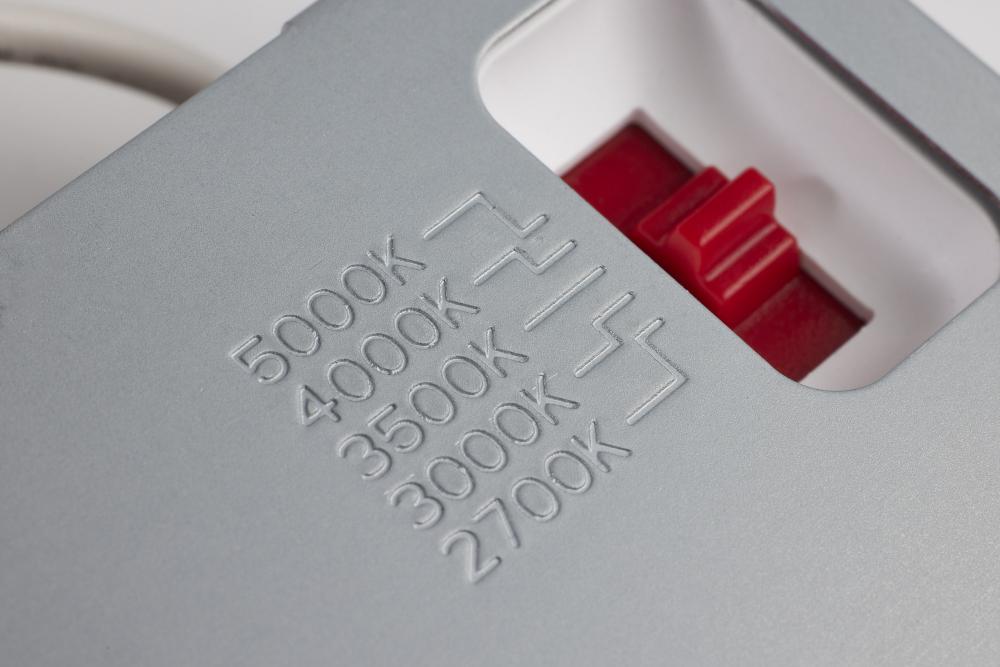

Temperature (CCT):
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant:
No
Title 24 Compliant:
Yes
Total Harmonic Distortion:
<20%
Trim Color:
White
Trim Material:
Metal
Wattage Selectable:
No
Weight Lb.:
1.2
Manufactured By:
Satco Products Inc.
