Item Sales Info
Part Number: S39059
/
Vendor ID Number: 27
/
Custom:

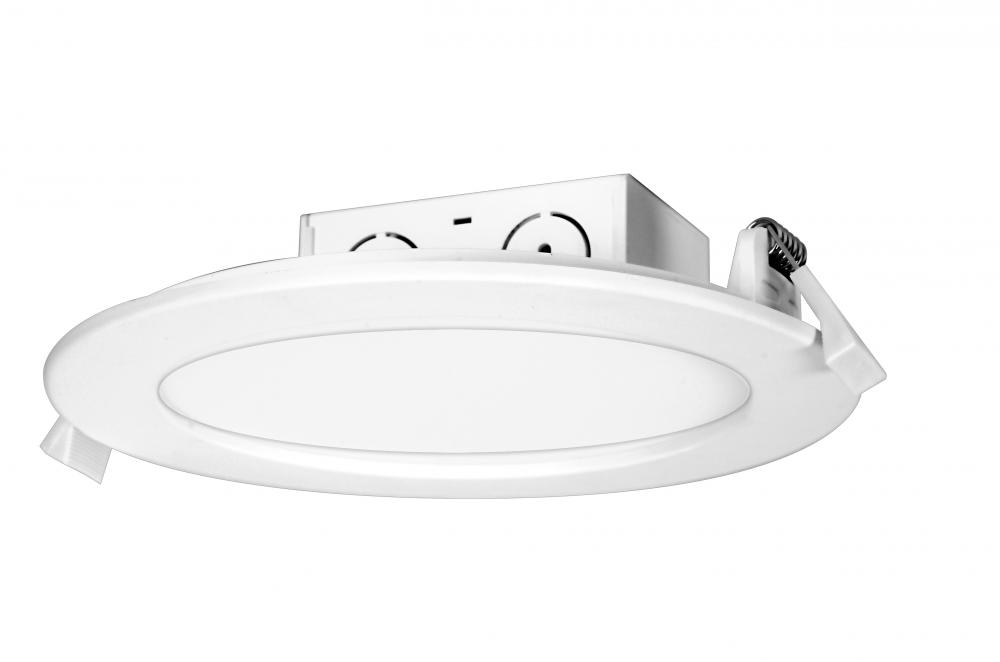

11.6 watt LED Direct Wire Downlight; Edge-lit; 5-6 inch; 5000K; 120 volt; Dimmable
by Satco Products Inc.
Call For Price
1330 In Stock
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 1.94"
Width: 7.13"
Finish
White
Product Overview
11.6 watt LED Direct Wire Downlight; Edge-lit; 5-6 inch; 5000K; 120 volt; Dimmable
Product Availability
-
Item appears to be in stock and ready to ship
Technical Details
Details
Category:
Recessed Ltg.
Subcategory:
Other Bulbs
Other Recessed Ltg.
Finish:
White /vendors/vendorImages white.jpg
Style:
Traditional
Option:
LED
Prop 65 /vendors/vendorImages prop65.png
Finish:
White /vendors/vendorImages white.jpg
Category:
Recessed
Sub Category:
Direct Wire
Style:
Utility
Bulb Hours:
40000
Bulb Kelvin:
Natural Light
Bulb Shape:
Integrated LED
Bulb Type:
LED
Diameter:
7.13
Dimmable:
Yes-Dimmable
Harmonized Codes:
9405.11.8010
Lumens:
780L
Ship Carton Height:
7.09
Ship Carton Length:
2.64
Ship Carton Width:
8.460000000000001
Warranty:
5 Year Limited - Fixtures
Air Tight:
Yes
Amps:
0.097A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Spread:
100
CA Prop-65:
Lead
Carton Cubic Feet:
0.0916
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Ceiling Aperture:
6.4375 in. Cutout
Clearance Height:
2.36
Connection:
Direct Wired
Country Of Origin:
China
CRI:
90
Dimmable Down To:
100 to 20 percent
Dimming Type:
Forward Phase or Reverse Phase or Phase Selectable
Efficacy:
67.24 LPW
FCC Compliant:
Yes
Feature 1:
Integrated J-Box for Direct Wire Installation
Feature 2:
Edge-lit Technology
Feature 3:
Damp rated for indoor use
Feature 4:
H:1.94 D:7.13
Feature 5:
H:1.94 D:7.13
Finish Family:
White
Fixture shape:
Round
IC Rated:
Yes
Incandescent Equivalent:
65W
Indoor Outdoor:
Indoor
Lens Finish:
Frost
Lens Material:
Plastic (PS)
Long Description:
SATCO|NUVO's S39059 11.6-watt, LED 5-6 inch recessed fixture is edge lit. The direct wired downlight offers natural light with a 100 degree beam spread. This LED downlight is an energy efficient lighting solution for retail spaces, offices, and drop ce
Material:
Thermal Conductive Plastics
Max Drywall Thickness:
3/4 in.
Mounting Procedure:
Ceiling
Operating Frequency:
60Hz
Operating Temprature:
-20C (-4F) to +45C (+113F)
Pack Type:
Box
Power Factor:
0.97
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO's 11.6-watt, LED 5-6 inch recessed fixture is edge lit. The direct wired downlight offers natural light with a 100 degree beam spread. This LED downlight is an energy efficient lighting solution for retail spaces, offices, and drop ceilings.
Safety Listing:
cETLus - Listed
SDS class:
LED_Lamp
Short Description:
11.6WLED/DW/EL/5-6/50K/120V
Temperature (CCT):
5000K
Title 20 Compliant:
No
Title 24 Compliant:
No
Trim Color:
White
Wattage Selectable:
No
Weight Lb.:
0.6
Manufactured By:
Satco Products Inc.
