Part Number: S11634
/
Vendor ID Number: 27
/
Custom:

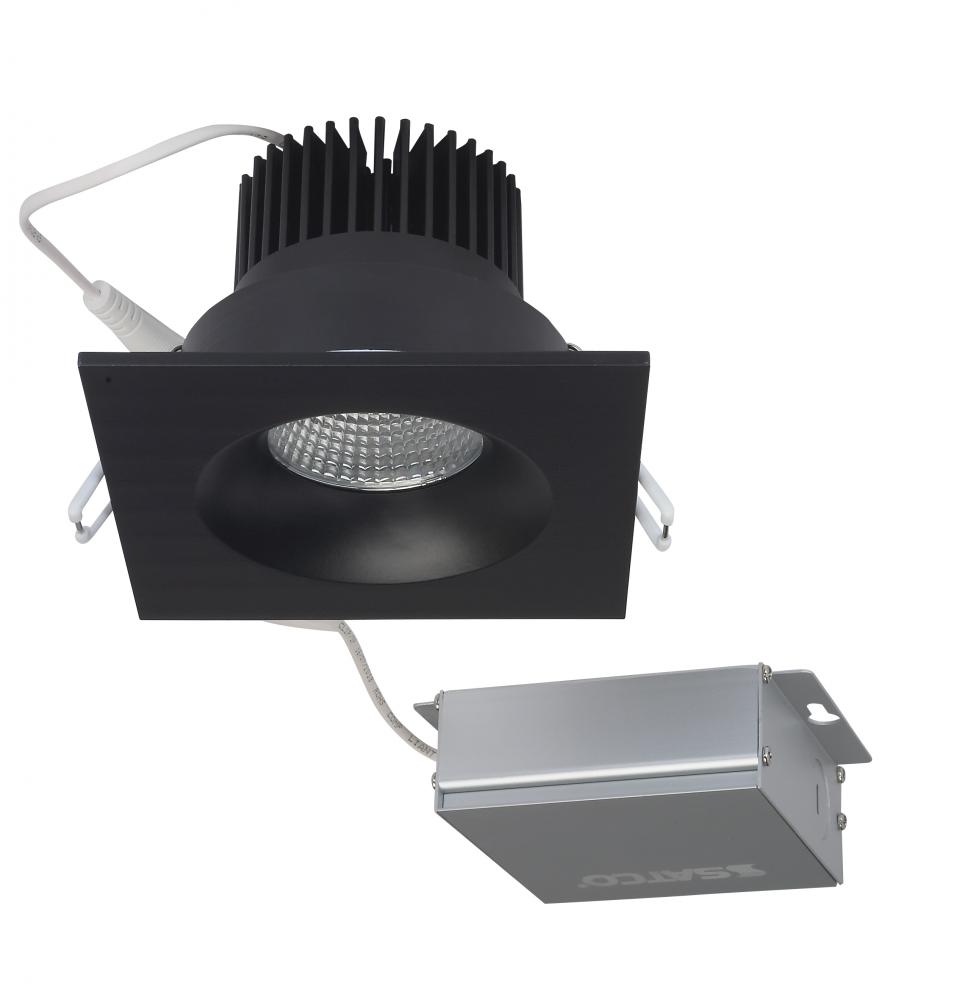

12 watt LED Direct Wire Downlight; 3.5 inch; 3000K; 120 volt; Dimmable; Square; Remote Driver; Black
by Satco Products Inc.
Call For Price
234 In Stock
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 3.00"
Width: 4.38"
Finish
Black
Product Overview
12 watt LED Direct Wire Downlight; 3.5 inch; 3000K; 120 volt; Dimmable; Square; Remote Driver; Black
Product Availability
-
Item appears to be in stock and ready to ship
Technical Details
Details
Category:
Recessed Ltg.
Subcategory:
Other Recessed Ltg.
Finish:
Black /vendors/vendorImages black.jpg
Style:
Traditional
Option:
Energy Star /vendors/vendorImages energy star.jpg
LED
Prop 65 /vendors/vendorImages prop65.png
Finish:
Black /vendors/vendorImages black.jpg
Category:
Recessed
Sub Category:
Direct Wire
Style:
Utility
Additional Info:
Integrated j-box for direct wire installation
Bulb Hours:
50000
Bulb Kelvin:
Warm White
Bulb Shape:
Integrated LED
Bulb Type:
LED
Dimmable:
Yes-Dimmable
Harmonized Codes:
9405.11.8010
Length:
4.38
Lumens:
840L
Ship Carton Height:
4.8
Ship Carton Length:
6.06
Ship Carton Width:
4.88
Warranty:
5 Year Limited - Fixtures
Air Tight:
Yes
Amps:
0.100A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Spread:
40
CA Prop-65:
Lead
Carton Cubic Feet:
0.08210000000000001
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
California T24 2016 - 2022 JA8 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
California T24 Listed
Ceiling Aperture:
3.5625 in. Cutout
Clearance Height:
4
Connection:
Direct Wired
Country Of Origin:
China
CRI:
90
Dimmable Down To:
100 to 10 percent
Dimming Type:
Forward Phase or Reverse Phase or Phase Selectable or Triac
Efficacy:
70.00 LPW
ES Category:
Downlight Recessed
ES Unique ID:
ESID-2337203
FCC Compliant:
Yes
Feature 1:
Length: 4.38 inches, Width: 4.38 inches, Height: 3.00 inches
Feature 2:
Dimmable
Feature 3:
Wet location rated for indoor use
Feature 4:
3000K Warm White Light
Feature 5:
Superior 90 CRI light quality
Feature 6:
5 year limited warranty
Feature 7:
840 lumens
Feature 8:
Rated for 50,000 hours
Feature 9:
FCC and RoHS Compliant
Finish Family:
Black
Fixture shape:
Square
Has Driver:
Yes
IC Rated:
Yes
Incandescent Equivalent:
75W
Indoor Outdoor:
Indoor
Installation Notes:
**If you purchase The 5W Emergency Driver (S8000) or the 10W Emergency Driver (S8002), you must also purchase the Emergency Driver Enclosure (80-973)
JA8 Compliant:
Yes
Lens Finish:
Clear
Lens Material:
Polycarbonate (PC) and Glass
Long Description:
Satco's S11634 12 watt, 3.5 inch LED, direct wire downlight is an easy to install, low maintenance lighting solution for residential or commercial use. Illuminate your kitchen, living room, or work space with this square downlight that fits into tight
Material:
Aluminum
Max Drywall Thickness:
7/8 in.
Mounting Procedure:
Ceiling
Operating Frequency:
60Hz
Operating Temprature:
-20C (-4F) to +45C (+113F)
Pack Type:
Box
Power Factor:
>0.9
Quantity In Pack:
1
R9 Value:
61
Rec Spacing Between Fixtures:
4 ft. to 6 ft.
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
Satco's 12 watt, 3.5 inch LED, direct wire downlight is an easy to install, low maintenance lighting solution for residential or commercial use. Illuminate your kitchen, living room, or work space with this square downlight that fits into tight and har
Safety Listing:
cETLus - Listed
SDS class:
LED_Lamp
Short Description:
12WLED/DW/DNL3/930/SQ/RD/BK
Sloped Ceiling Compatible:
No
Temperature (CCT):
3000K
Title 20 Compliant:
No
Title 24 Compliant:
Yes
Trim Color:
Black
Wattage Selectable:
No
Weight Lb.:
1.18
Manufactured By:
Satco Products Inc.
