Item Sales Info
Part Number: S11731
/
Vendor ID Number: 27
/
Custom:

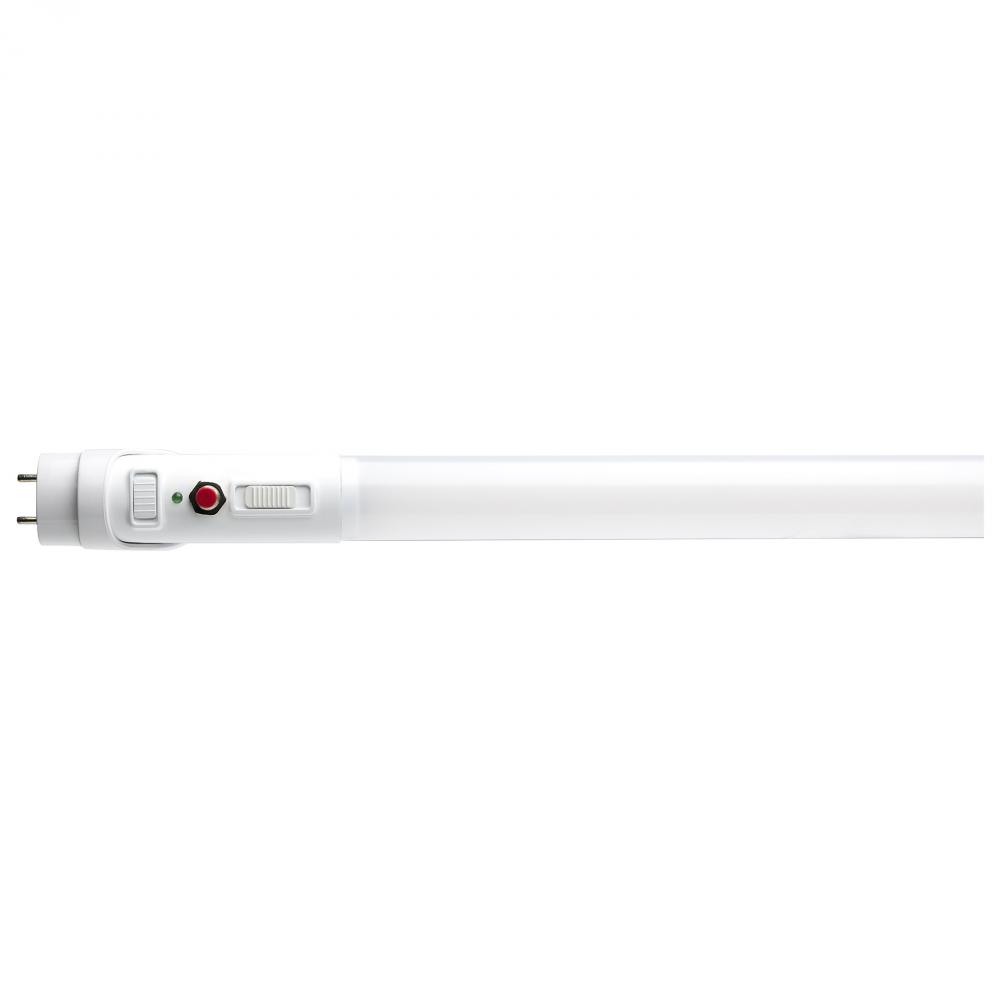

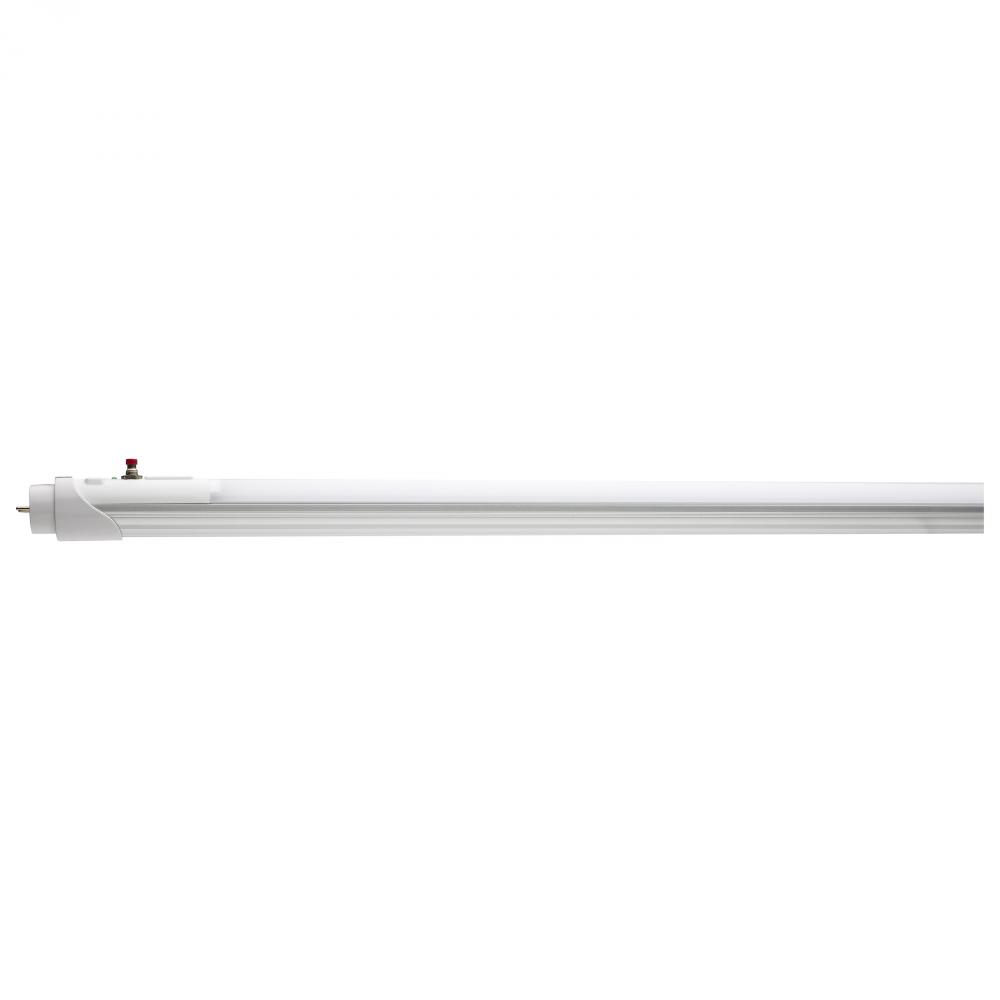

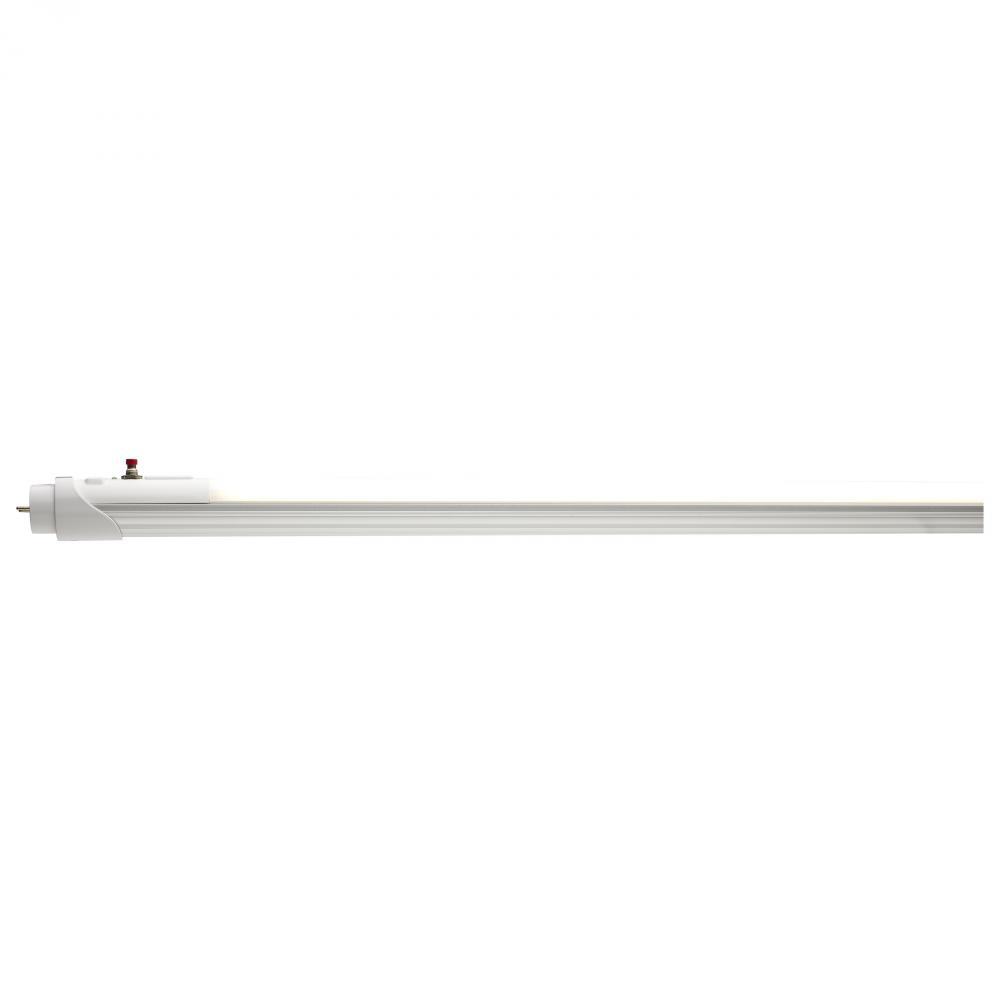

17 Watt 48 Inch T8 LED; 35K/40K/50K CCT Selectable; Ballast Bypass with Battery Backup; G13 Base;
by Satco Products Inc.
Call For Price
779 In Stock
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Width: 1.13"
Product Overview
17 Watt 48 Inch T8 LED; 35K/40K/50K CCT Selectable; Ballast Bypass with Battery Backup; G13 Base; 120-277 Volt
Product Availability
-
Item appears to be in stock and ready to ship
Technical Details
Details
Category:
Lamps
Subcategory:
LED Lamps
Finish Family:
White /vendors/vendorImages white.jpg
Category:
LED
Sub-Category:
LED T8
Volts:
120V-277V
Bulb Hours:
50000
Bulb Kelvin:
3500K/4000K/5000K
Bulb Shape:
T8
Diameter:
1.13
EA Length:
48.11
Harmonized Codes:
8539.52.0051
Length:
47.78
Lumens:
2100L/2300L/2200L
Shap Carton Width:
2.05
Ship Carton Height:
1.34
Ship Weight:
1.08
Warranty:
5 Year Limited - T8 LED Bulbs - Ballast Bypass
Weight:
0.99
Additional Info:
5 Watts and 700 Lumens in Emergency Mode
BAA Compliant:
No
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass
Battery Chemistry:
Lithium-ion (Li-ion)
Beam Spread:
140
Bulb ANSI Base:
G13
Bulb Base:
Medium Bi Pin
Bulb Finish:
White
Burning Position:
Horizontal
Carton Cubic Feet:
0.0765
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Neutral White to Natural Light
Country Of Origin:
China
CRI:
83
DLC Approved:
Yes
DLC Classification:
Standard
DLC ID:
S-MASCZT
DLC Primary Use:
Internal Driver/Line Voltage (UL Type B) Lamps
Efficacy:
123.53/135.29/129.41 LPW
Enclosed Fixture Use:
Yes
Enclosure Rating:
Not for use in fully enclosed vapor tight fixtures
FCC Compliant:
Yes
Feature 1:

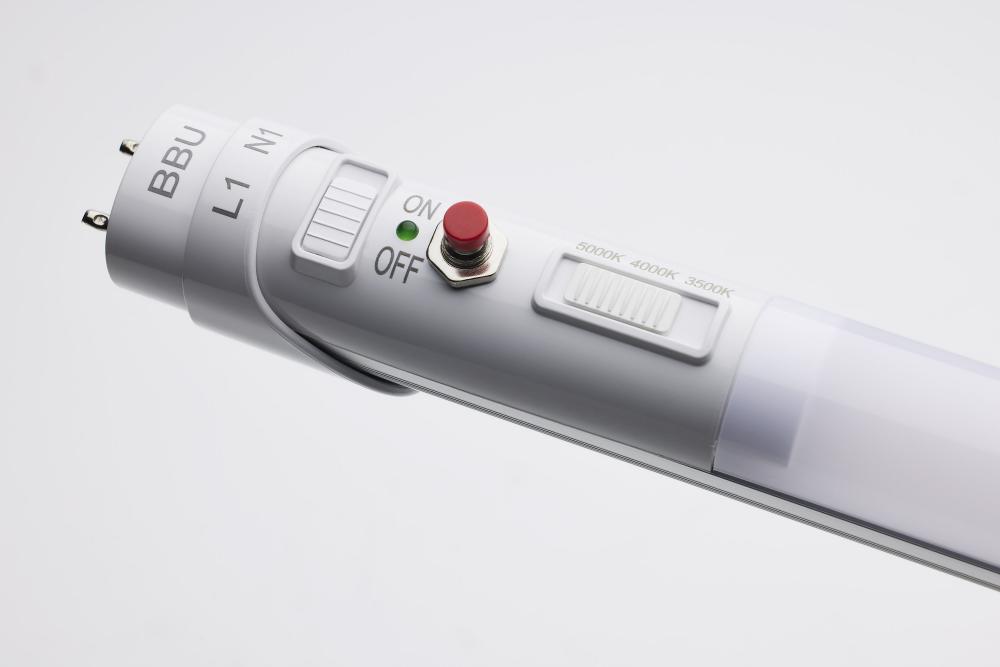

Provides up to 90 minutes of illumination during power outages
Feature 2:

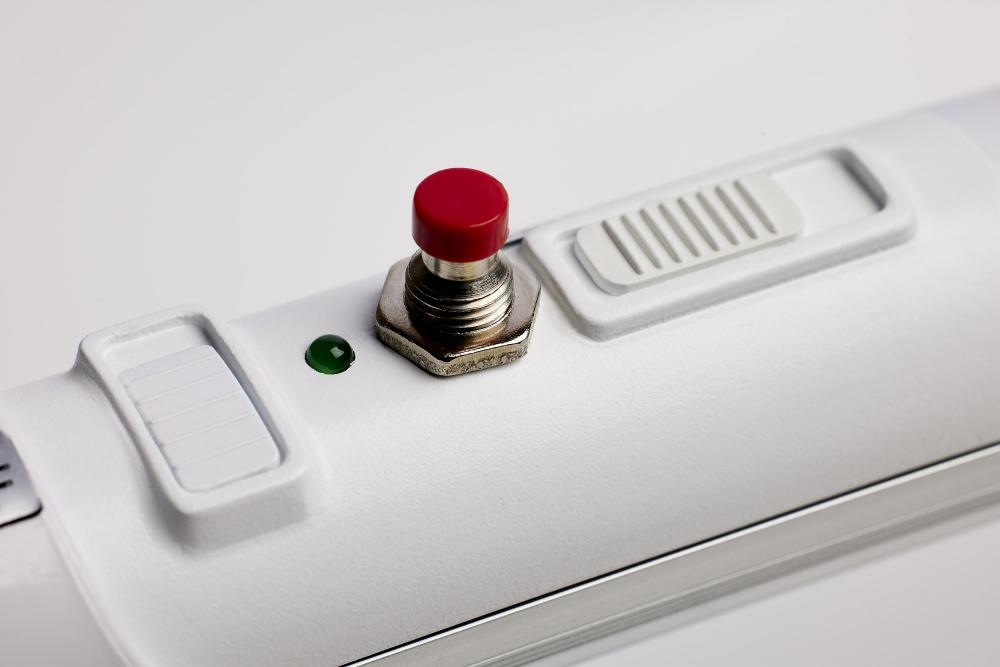

Battery On/Off switch conserves battery after installation
Feature 3:
Integrated aluminum heatsink to promote heat dissipation
Feature 4:
Features ColorQuick technology, allowing for easy selection of CCT at installation
Feature 5:
5 Year Warranty
Flourescent Equivalent:
32W
Has Driver:
Yes
Has Emergency Battery:
Yes
Housing Color:
White
Incandescent Equivalent:
90W
Indoor Outdoor:
Indoor
Installation Notes:
Not for use in vapor tight fixtures. Maximum Mounting Height: 13 Feet
IOT Enabled:
No
IP Rating:
IP20
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type B
Lamp End Type:
Single Ended
Lamp Filament:
LED
Lens Finish:
Frost
Lens Material:
Polycarbonate (PC)
Location Rating:
Damp
Material:
Aluminum
Nominal Length:
48
NSF Approved:
Yes
Operating Frequency:
60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Pack Type:
Box
Power Factor:
0.9
Quantity In Pack:
1
R9 Value:
12
RoHS Compliant:
Yes
Romance Copy:
Satco|Nuvo's T8 lamps with Battery Backup are the logical choice for commercial installations. Providing up to 90-minutes of illumination in the event of a power failure, these lamps are ideal for use where backup lighting is essential. Available in 15
SDS class:
LED_Lamp
Shatter Proof Text:
Yes
Short Description:
17T8/LED/48-CCT/BB/BP
Specification Notes:
Height at switch: 1.30 Inches; Work time after power failure: 90 Minutes; Battery Recharge Time is 24 hours
Style:
Utility
Surge Protection:
Built-in surge protection - 1KV
Technology:
LED
Title 20 Compliant:
No
Title 24 Compliant:
No
Total Harmonic Distortion:
<25%
Tube Guard Use:
No
Wattage Selectable:
No
Watts:
17W
Manufactured By:
Satco Products Inc.
