Item Sales Info
Part Number: S11838
/
Vendor ID Number: 27
/
Custom:
6.5 Watt LED Downlight Retrofit; 4 Inch Baffle; CCT Selectable; 12 Volts; Matte White Finish
by Satco Products Inc.
Call For Price
1597 In Stock
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 2.98"
Width: 5.31"
Finish
Matte White
Product Overview

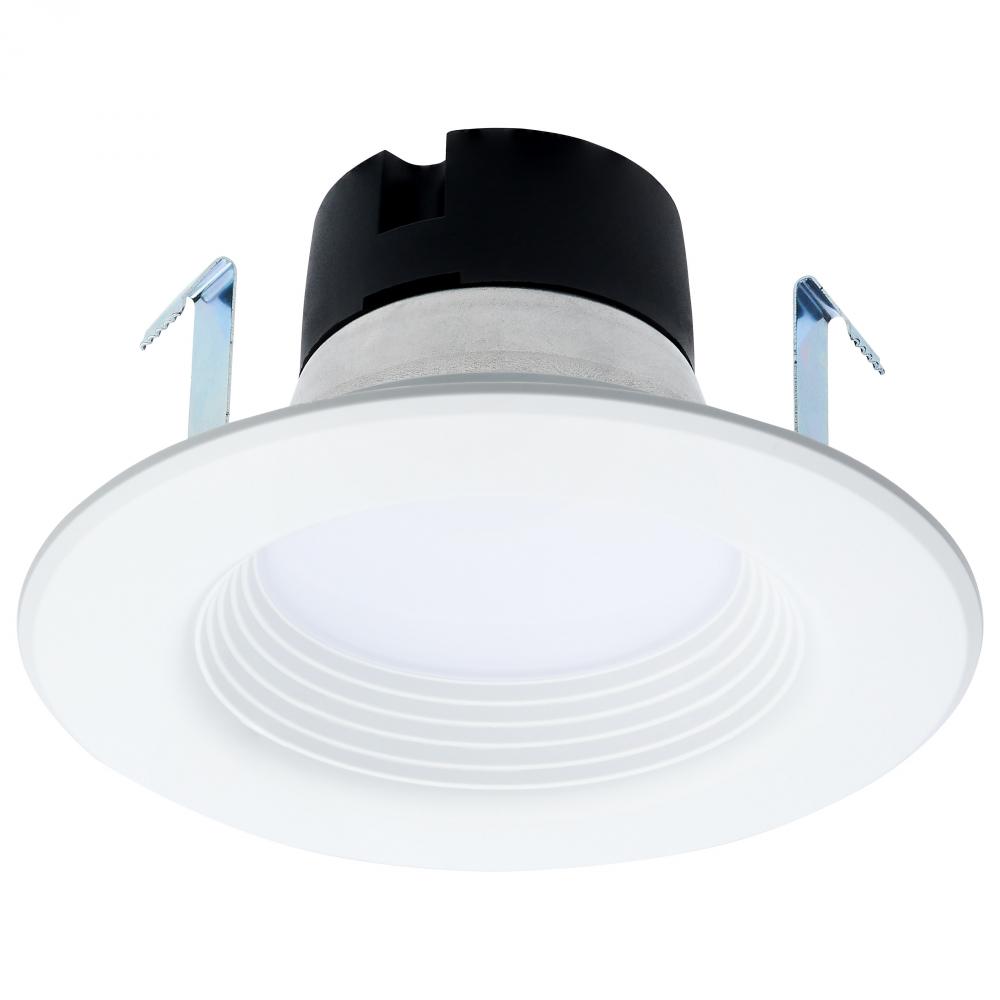

6.5 Watt LED Downlight Retrofit; 4 Inch Baffle; CCT Selectable; 12 Volts; Matte White Finish
Product Availability
-
Item appears to be in stock and ready to ship
Technical Details
Details
Category:
Recessed Ltg.
Subcategory:
Recessed Lighting Trims
Finish:
White /vendors/vendorImages white.jpg
Option:
LED
Prop 65 /vendors/vendorImages prop65.png
Finish:
Matte White
Category:
Recessed
Sub Category:
Retrofits
Style:
Utility
Bulb Hours:
50000
Bulb Kelvin:
Warm White to Natural Light
Bulb Shape:
Integrated LED
Bulb Type:
LED
Diameter:
5.31
Dimmable:
Yes-Dimmable
Harmonized Codes:
8539.52.0091
Lumens:
600L
Ship Carton Height:
5.51
Ship Carton Length:
5.51
Ship Carton Width:
3.15
Warranty:
3 Year Limited - Fixtures
Air Tight:
No
Amps:
0.560A
ANSI Base:
GU5.3
Beam Spread:
85
CA Prop-65:
Lead
Can Size:
4 in.
Carton Cubic Feet:
0.0553
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Connection:
Direct Wired
Country Of Origin:
China
CRI:
90
Dimmable Down To:
100 to 10 percent
Dimming Type:
Phase cut
Efficacy:
92.31 LPW
FCC Compliant:
Yes
Feature 1:
CCT Selectable
Feature 2:
Non-Conductive Dead-Front Trim
Feature 3:

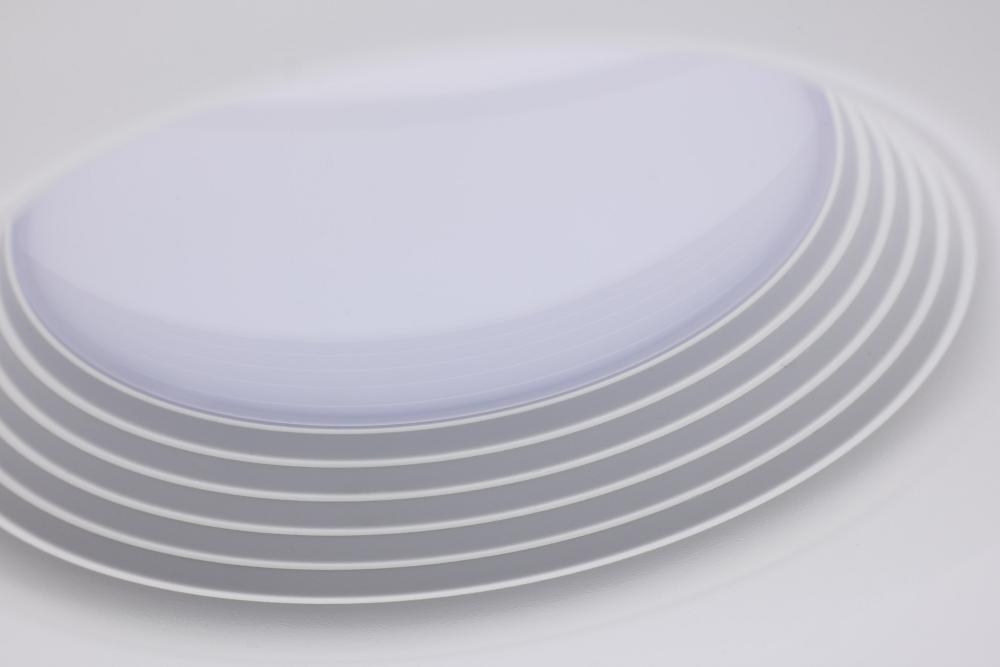

Stepped Baffle for Reduced Glare
Feature 4:
Dimmable
Feature 5:

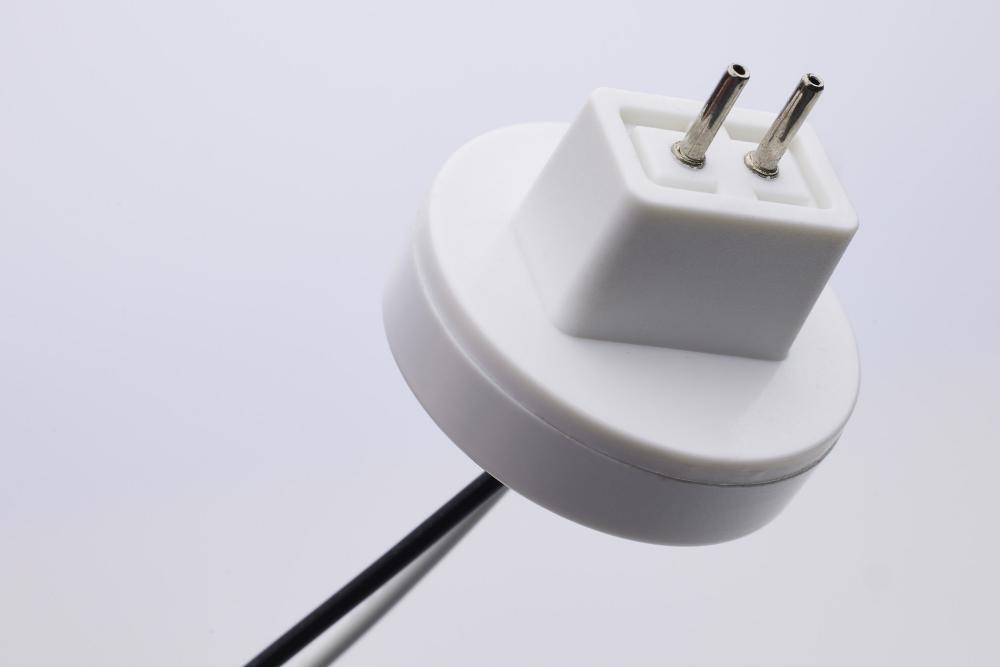

GU5.3 Bi-Pin Base for MR16 Retrofits
Feature 6:
Wet Location Rated
Feature 7:
50,000 Hour Functional Life
Finish Family:
White
IC Rated:
No
Incandescent Equivalent:
50W
Indoor Outdoor:
Indoor
Lens Material:
Polycarbonate (PC)
Long Description:

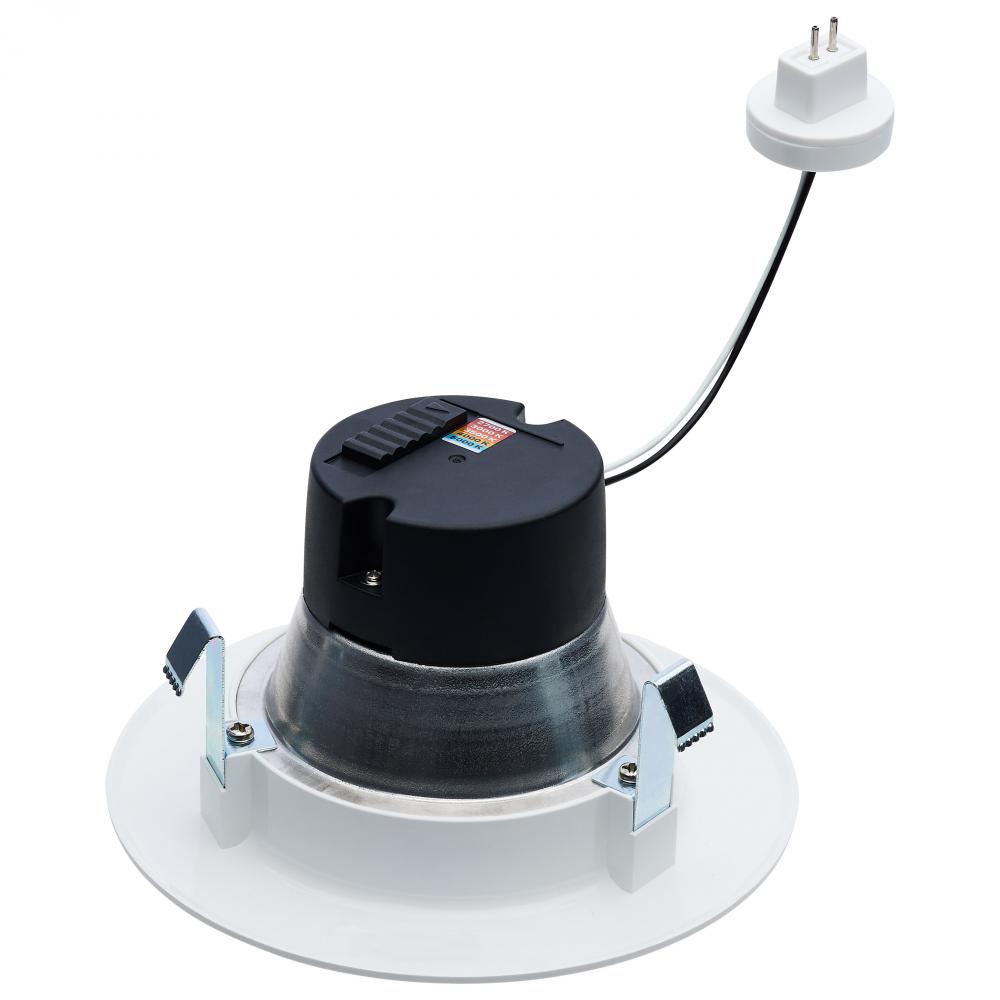

SATCO|NUVO's S11838 offers a hassle-free solution with its 12 volt, 4-inch Retrofit Downlight, ideal for upgrading MR16 recessed luminaries in any space. Engineered with low voltage and an attached GU5.3 base, this fixture is designed to replace older,
Material:
Polycarbonate (PC)
Mounting Procedure:
Ceiling
Operating Frequency:
60Hz
Operating Temprature:
-20C (-4F) to +40C (+104F)
Pack Type:
Color Box
Power Factor:
0.9
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO offers a hassle-free solution with its 12 volt, 4-inch Retrofit Downlight, ideal for upgrading MR16 recessed luminaries in any space. Engineered with low voltage and an attached GU5.3 base, this fixture is designed to replace older, higher watta
Safety Listing:
cETLus - Classified
Short Description:
6.5WLED/DLR/BFL/4/CCT-SEL/12V
Sloped Ceiling Compatible:
No
Temperature (CCT):

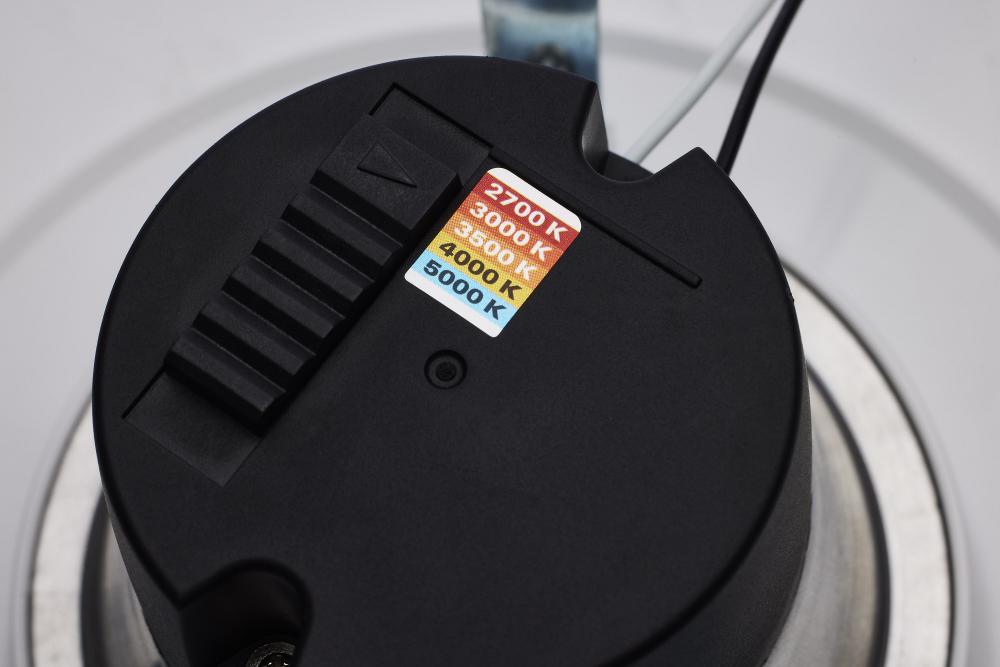

2700K/3000K/3500K/4000K/5000K
Title 20 Compliant:
No
Title 24 Compliant:
No
Total Harmonic Distortion:
34.03%
Trim Material:
Polycarbonate (PC)
Wattage Selectable:
No
Weight Lb.:
0.3
Manufactured By:
Satco Products Inc.
