Part Number: S11801R1
/
Vendor ID Number: 27
/
Custom:

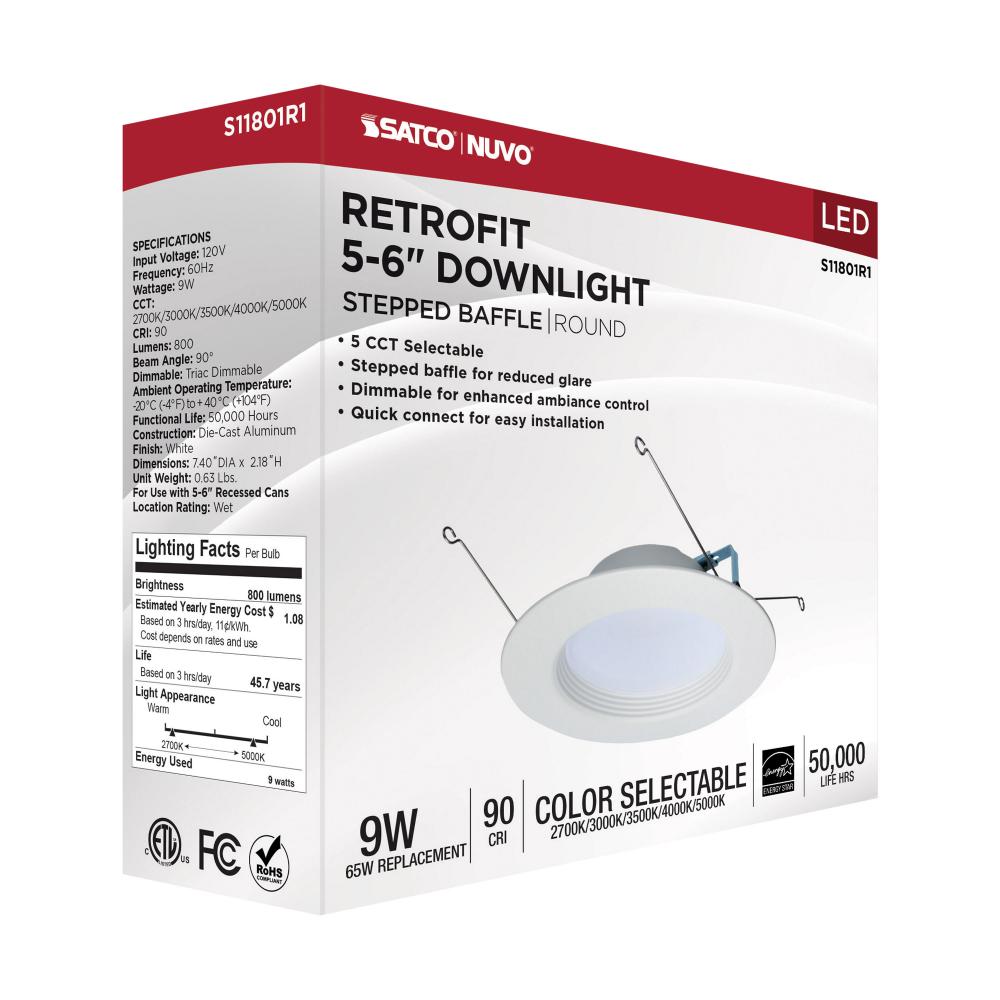

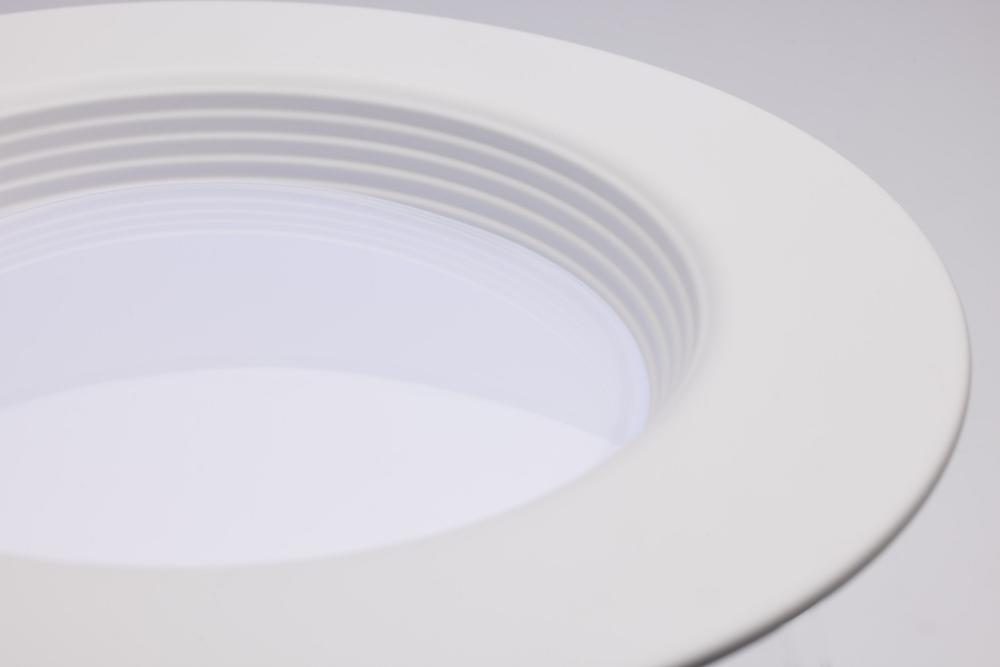

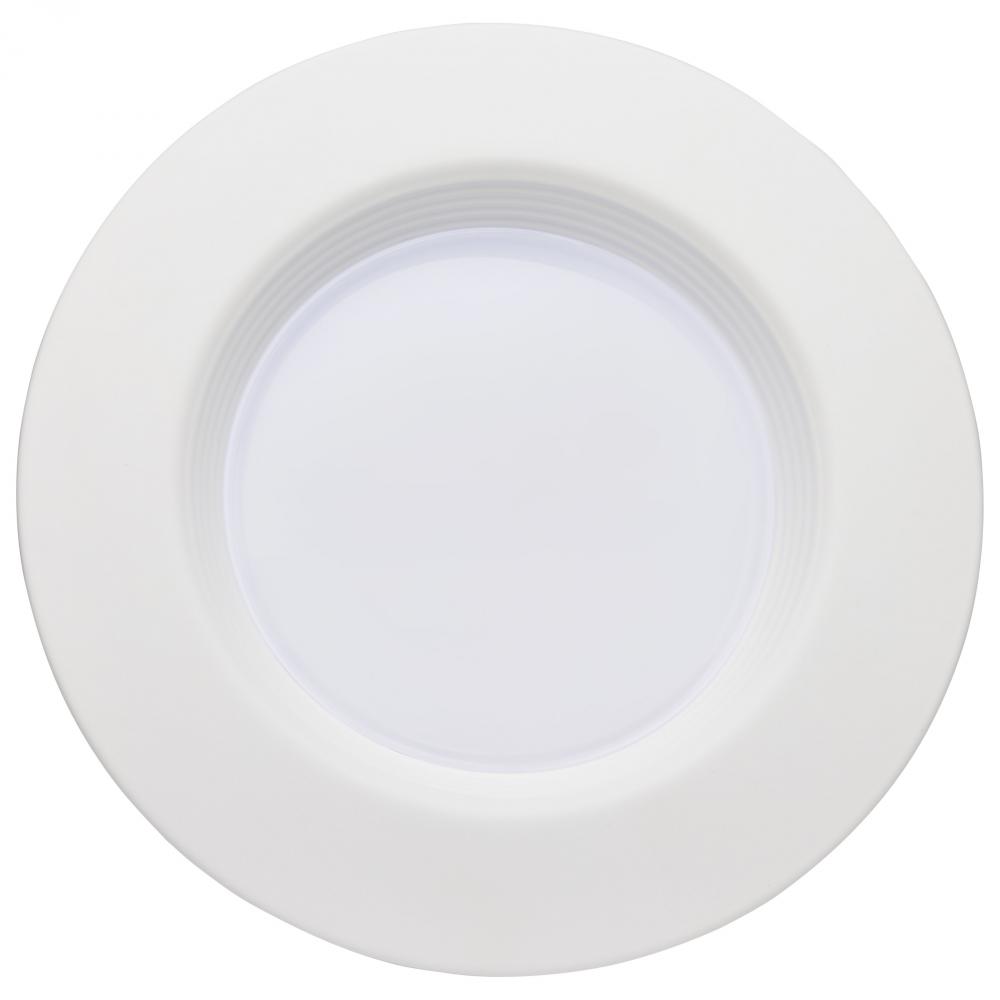

9 Watt LED Downlight Retrofit; 5-6 Inches; CCT Selectable; Round; White Finish; 120 Volt
by Satco Products Inc.
Call For Price
39276 In Stock
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty

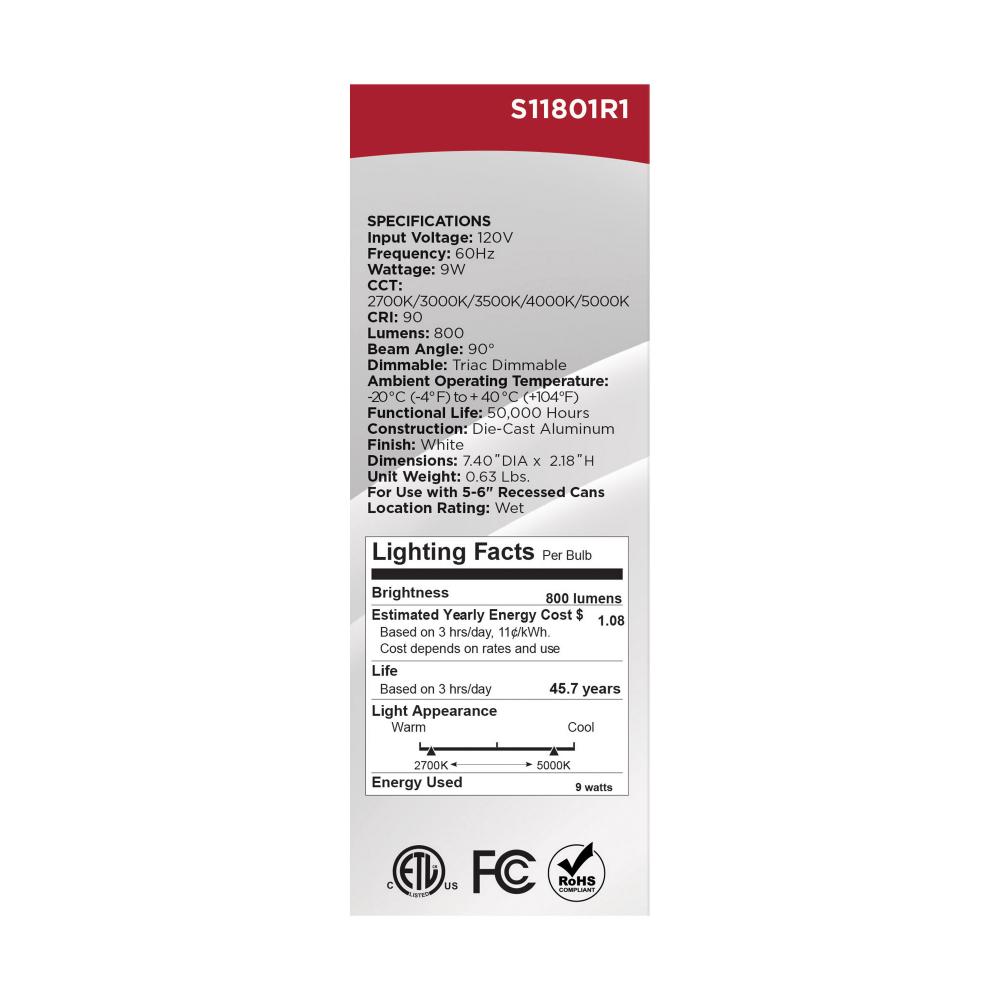

Product Specification
Dimensions
Height: 2.32"
Width: 7.40"
Finish
White
Product Overview
9 Watt LED Downlight Retrofit; 5-6 Inches; CCT Selectable; Round; White Finish; 120 Volt
Product Availability
-
Item appears to be in stock and ready to ship
Technical Details
Details
Category:
Recessed Ltg.
Subcategory:
Recessed Lighting Trims
Finish:
White /vendors/vendorImages white.jpg
Option:
Energy Star /vendors/vendorImages energy star.jpg
LED
Prop 65 /vendors/vendorImages prop65.png
Finish:
White /vendors/vendorImages white.jpg
Category:
Recessed
Sub Category:
Retrofits
Style:
Utility
Bulb Hours:
50000
Bulb Kelvin:
Warm White to Natural Light
Bulb Shape:
Integrated LED
Bulb Type:
LED
Diameter:
7.4
Dimmable:
Yes-Dimmable
Harmonized Codes:
8539.52.0091
Lumens:
800L
Ship Carton Height:
8.460000000000001
Ship Carton Length:
7.6
Ship Carton Width:
2.36
Warranty:
5 Year Limited - Fixtures
Air Tight:
No
Amps:
0.075A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Spread:
90
CA Prop-65:
Lead
Can Size:
5-6 in.
Carton Cubic Feet:
0.0878
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
California T24 2016 - 2022 JA8 Listed; T20 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
California T24 Listed
Ceiling Aperture:
5.36 in. Cutout
Connection:
Connector or Adapter
Country Of Origin:
China
CRI:
90
Dimmable Down To:
100 to 10 percent
Dimming Type:
Triac
Efficacy:
88.89 LPW
Enclosed Fixture Use:
Yes
ES Category:
Downlight Solid State Retrofit
ES Unique ID:
ESID-2607555
FCC Compliant:
Yes

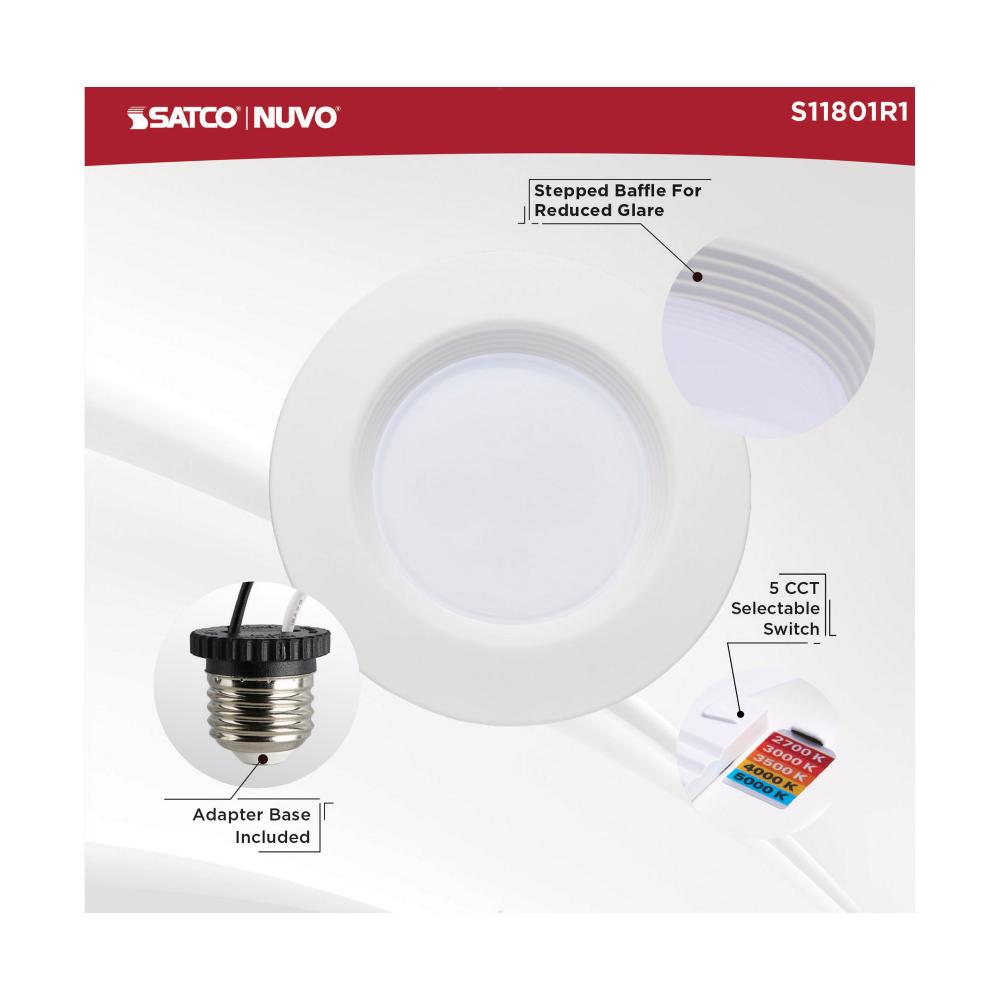

Feature 1:
5 CCT Selectable
Feature 10:
ENERGY STAR Certified
Feature 2:
White Trim
Feature 3:
90-Degree Beam Angle
Feature 4:
E26 Adapter Included
Feature 5:
90 CRI
Feature 6:
Wet Location Rated
Feature 7:
50,000 hour life
Feature 8:
Dimmable Down to 10%
Feature 9:
Suitable for Bathroom Applications
Finish Family:
White
Fixture shape:
Round
Incandescent Equivalent:
65W
Includes:

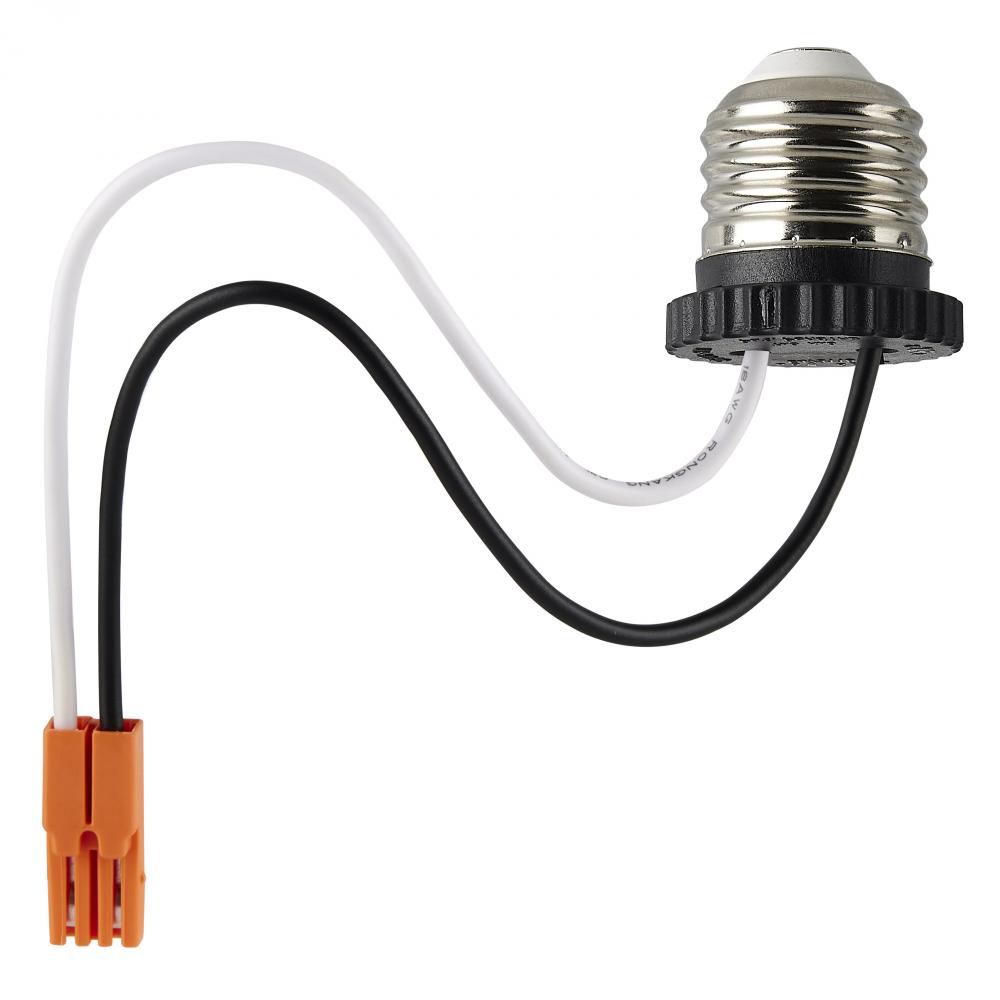

E26 Adapter included (S9001)
Indoor Outdoor:
Indoor
Installation Notes:
Can size minimum diameter: 5.36"; minimum height: 7.5"
IOT Enabled:
No
JA8 Compliant:
Yes
Lens Finish:
Frost
Lens Material:
Polycarbonate (PC)
Long Description:

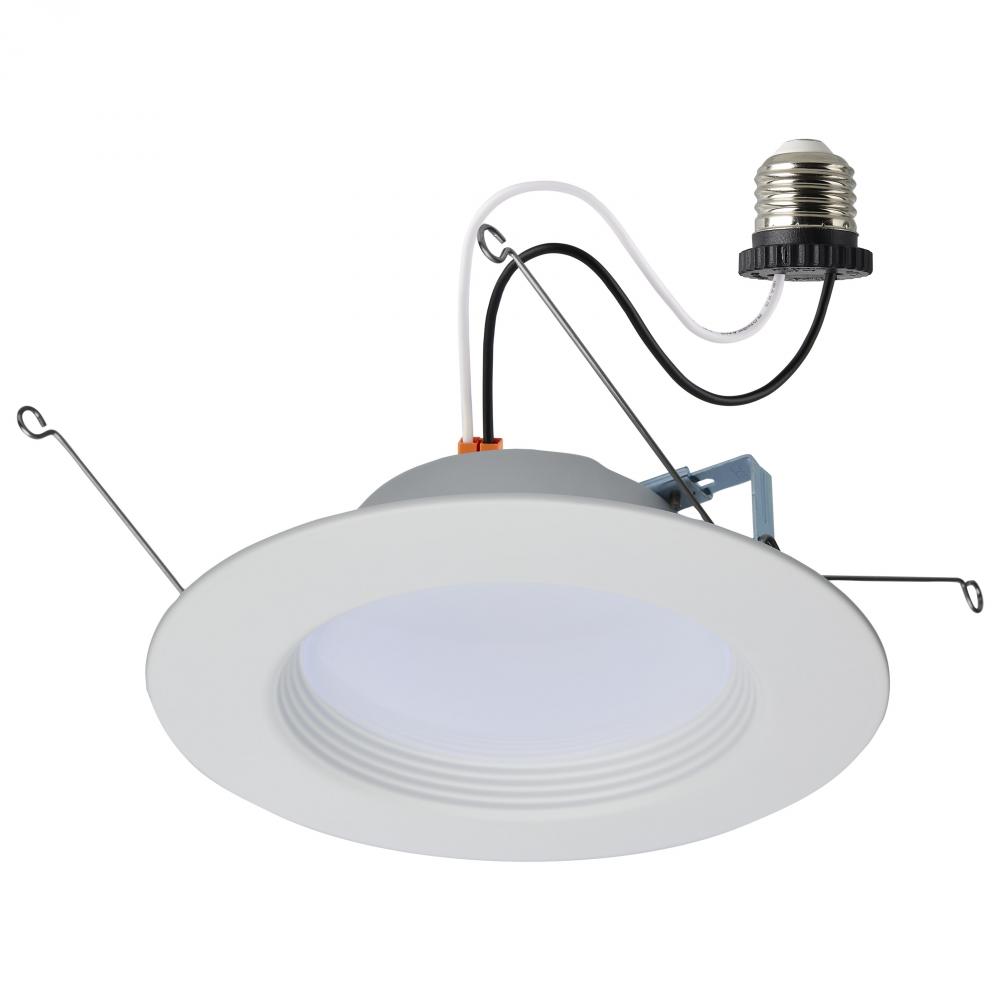

SATCO|NUVO’s S11801R1 LED Retrofit Downlight is the easy way to convert traditional recessed lighting to LED. This 5/6-inch round fixture is sized for, and comes ready with, an E26 base adapter for instant illumination when installed with existing cans.
Material:
Steel

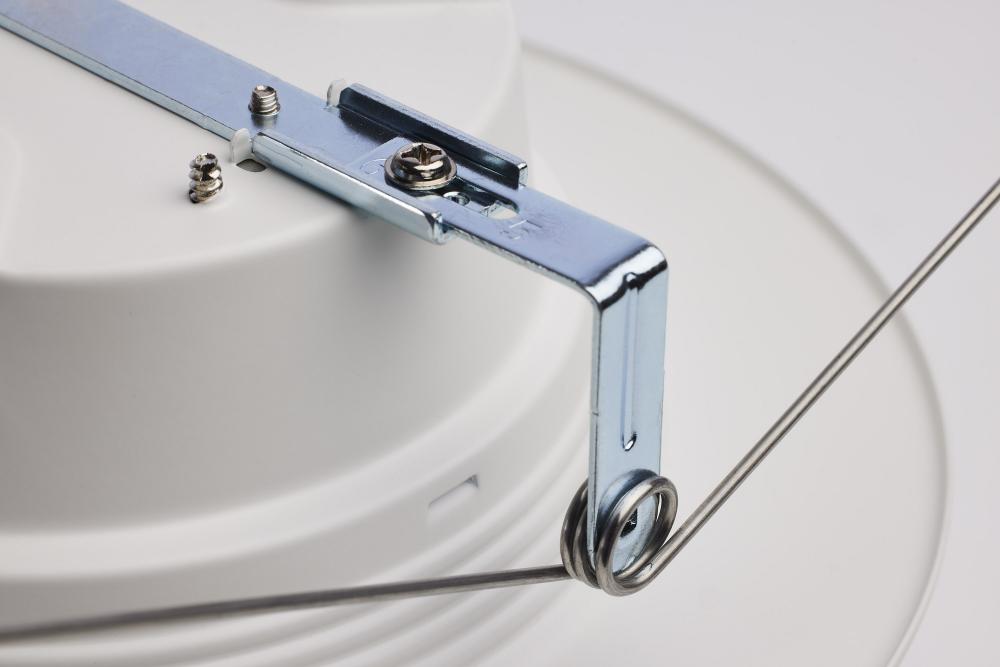

Mounting Procedure:
Recessed Retrofit
Operating Frequency:
60Hz
Operating Temprature:
-20C (-4F) to +40C (+104F)
Pack Type:
Box
Power Factor:
0.9
Quantity In Pack:
1
R9 Value:
51
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO’s LED Retrofit Downlights are the easy way to convert traditional recessed lighting to LED. Offered in 4-inch and 5/6-inch models, these fixtures are sized for, and come ready with, an E26 base adapter for instant illumination when installed w
Safety Listing:
cETLus - Listed
SDS class:
LED_Fixture
Short Description:
9WLED/RDL/5-6/5CCT-SEL/RD

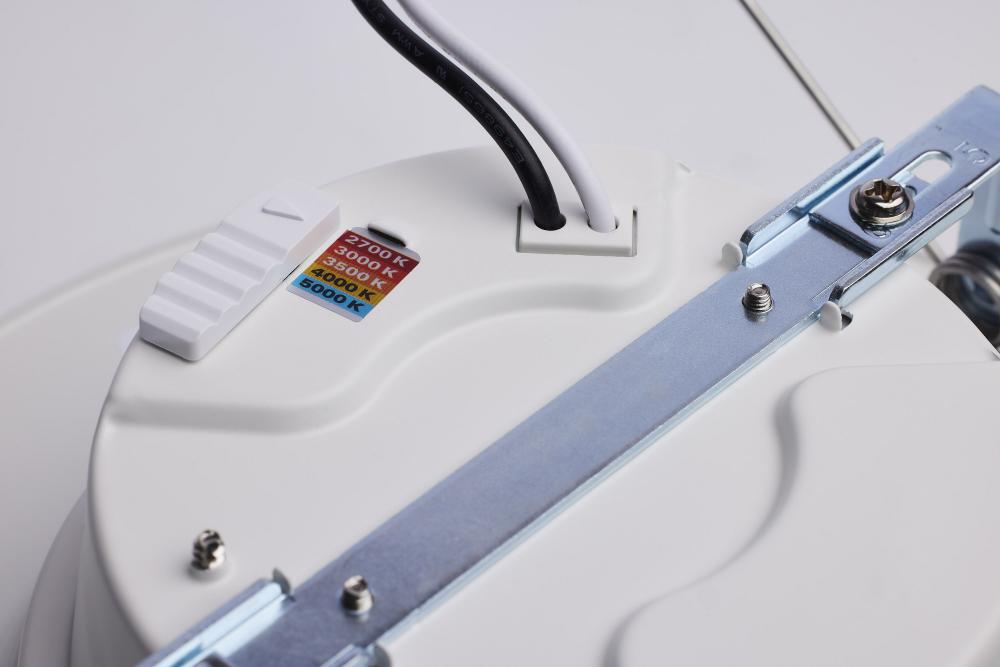

Temperature (CCT):
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant:
Yes
Title 24 Compliant:
Yes
Trim Color:
White
Wattage Selectable:
No
Weight Lb.:
0.63
Manufactured By:
Satco Products Inc.
