Part Number: S11882
/
Vendor ID Number: 27
/
Custom:
Field Selectable LED Downlight Retrofit; Deep Baffle; 5.8/7/9.5 Watts; 27K/30K/35K/40K/50K CCT; 4
by Satco Products Inc.
Call For Price
722 In Stock
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 3.25"
Width: 5.12"
Finish
White
Product Overview

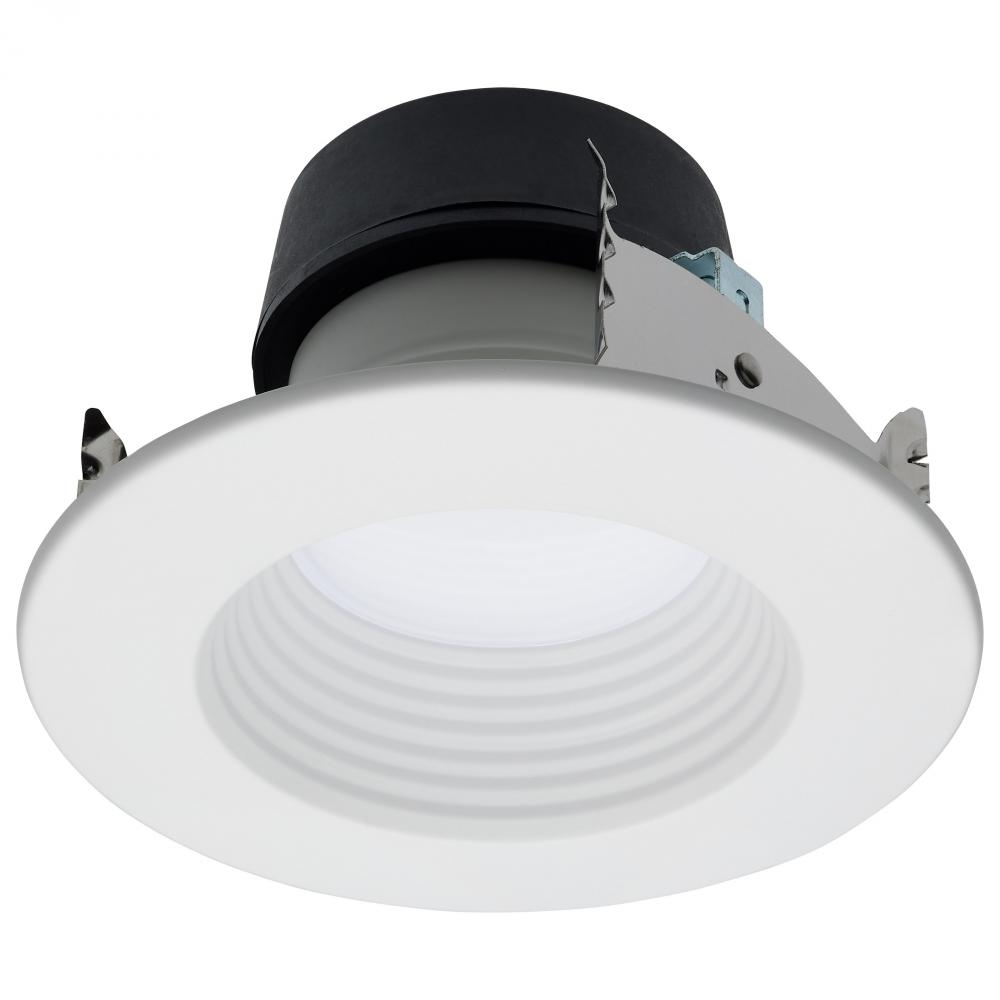

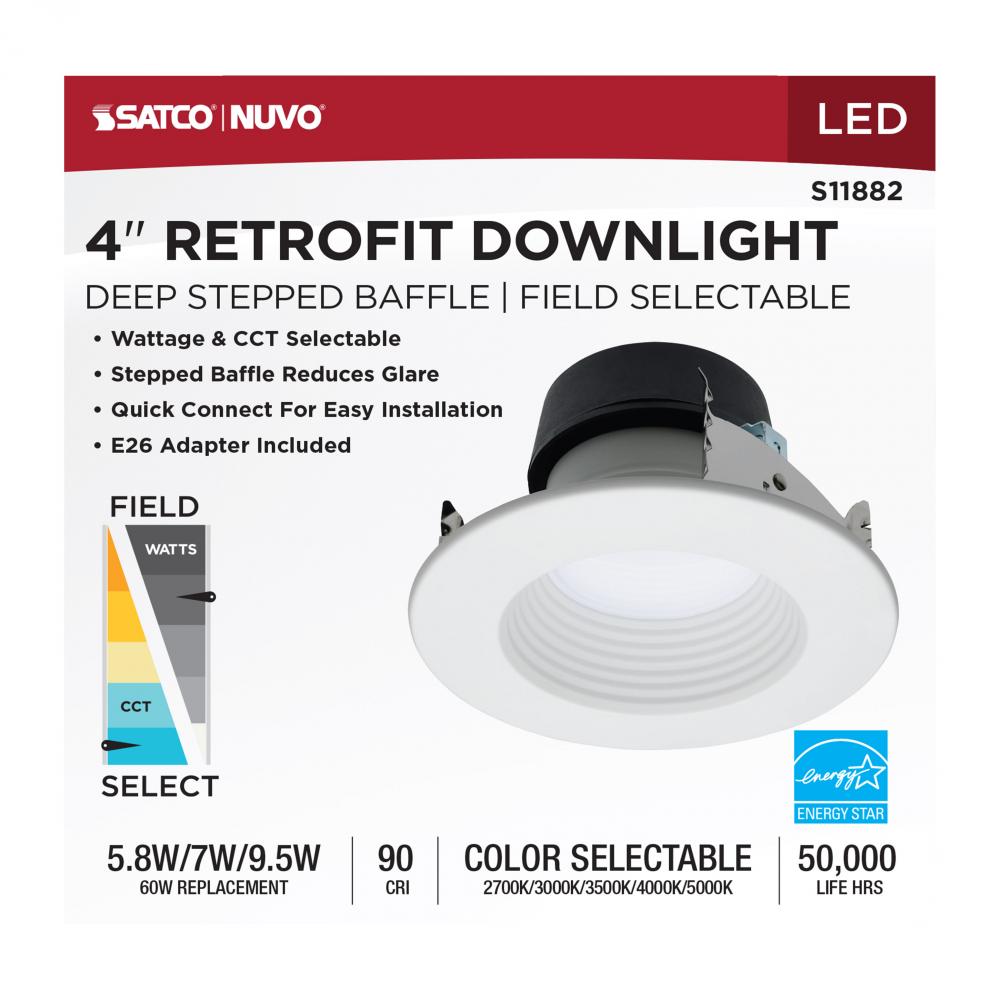

Field Selectable LED Downlight Retrofit; Deep Baffle; 5.8/7/9.5 Watts; 27K/30K/35K/40K/50K CCT; 4 Inch; Round Shape; White Finish; 120 Volts
Product Availability
-
Item appears to be in stock and ready to ship
Technical Details
Details
Category:
Recessed Ltg.
Subcategory:
Other Recessed Ltg.
Finish:
White /vendors/vendorImages white.jpg
Option:
Energy Star /vendors/vendorImages energy star.jpg
LED
Prop 65 /vendors/vendorImages prop65.png
Finish:
White /vendors/vendorImages white.jpg
Category:
Recessed
Sub Category:
Retrofits
Style:
Utility
Bulb Hours:
50000
Bulb Kelvin:
Warm White to Natural Light
Bulb Shape:
Integrated LED
Bulb Type:
LED
Diameter:
5.12
Dimmable:
Yes-Dimmable
Harmonized Codes:
8539.52.0091
Lumens:
600L/750L/900L
Ship Carton Height:
5.31
Ship Carton Length:
5.31
Ship Carton Width:
3.43
Warranty:
5 Year Limited - Fixtures
Air Tight:
No
Amps:
0.050/0.062/0.080A
ANSI Base:
E26 Adapter
Beam Spread:
75
CA Prop-65:
Lead
Can Size:
4 in.
Carton Cubic Feet:
0.056
Cartons Per Unit:
1

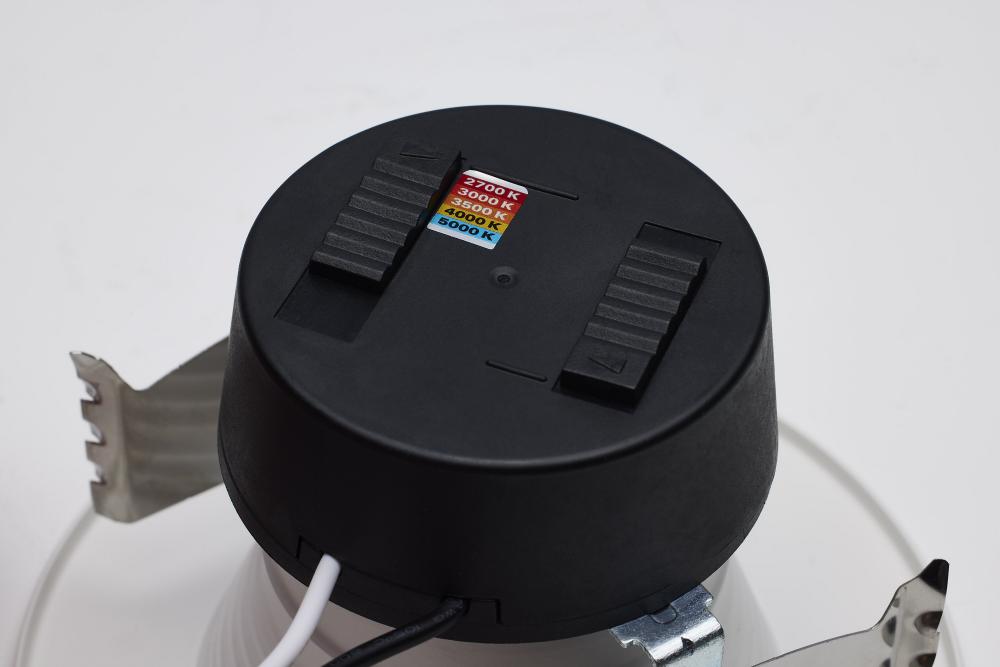

CCT Selectable:
Yes
CEC:
California T24 2016 - 2022 JA8 Listed; T20 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
California T24 Listed
Ceiling Aperture:
4.00 in. Cutout
Connection:
Connector or Adapter
Country Of Origin:
China
CRI:
90
Dimmable Down To:
100 to 10 percent
Dimming Type:
Phase cut
Efficacy:
103.45/107.14/94.74 LPW
ES Unique ID:
ESID-3354723
FCC Compliant:
Yes

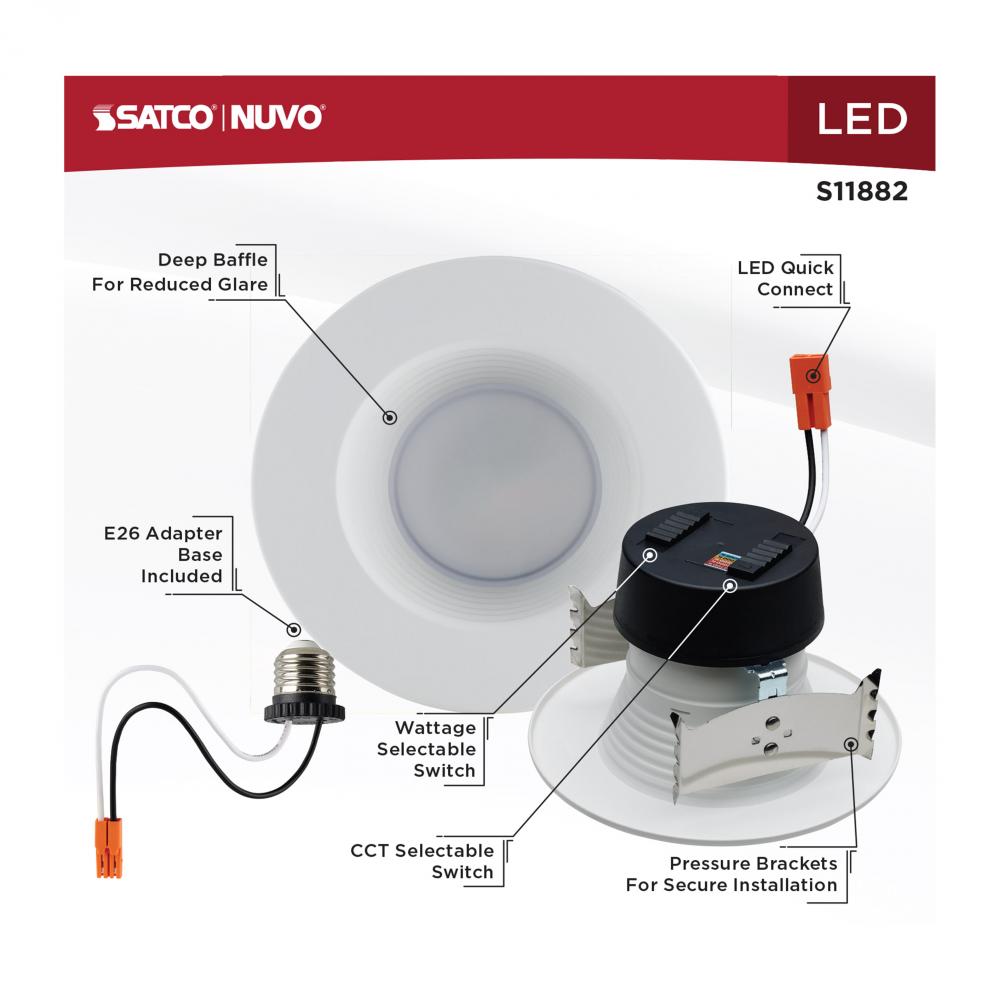

Feature 1:
CCT and Wattage Selectable
Feature 2:
Stepped Baffle for Reduced Glare
Feature 3:
Dimmable
Feature 4:

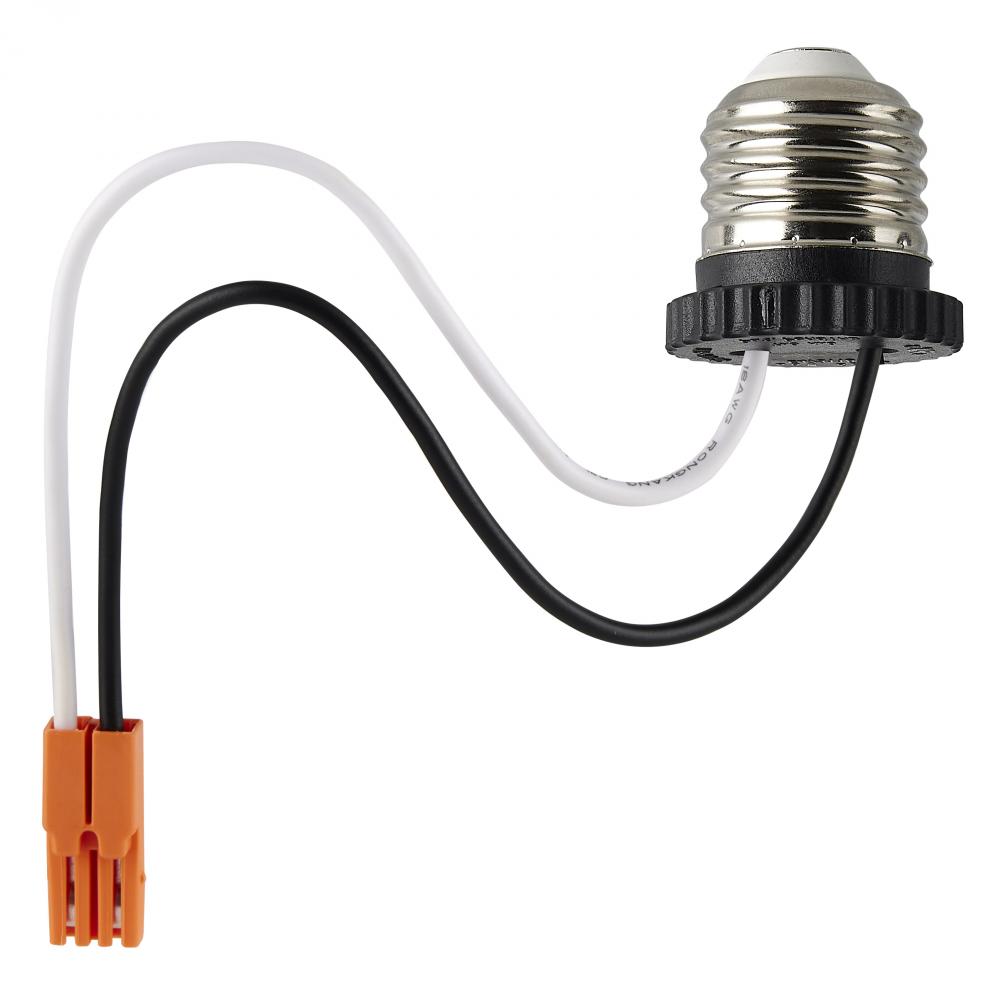

E26 Adapter Included
Feature 5:
90 CRI
Feature 6:
Wet Location Rated
Feature 7:
Accessories available to meet Non-Conductive "Dead-Front" Trim Requirements
Feature 8:
50,000 Hour Functional Life
Finish Family:
White
Fixture shape:
Round
IC Rated:
No
Incandescent Equivalent:
60W
Indoor Outdoor:
Indoor
JA8 Compliant:
Yes
Lens Material:
Polycarbonate (PC)
Long Description:
SATCO|NUVO’s S11882 4-inch round field selectable deep baffle retrofit downlight is designed with the look of sophistication in mind. The deep stepped baffle crafted on this downlight drastically reduces glare and with a high CRI rating of 90, users can
Material:
Aluminum
Mounting Procedure:
Ceiling
Operating Frequency:
60Hz
Operating Temprature:
-20C (-4F) to +40C (+104F)
Pack Type:
Color Box
Power Factor:
0.94
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO’s LED Field Selectable Deep Baffle Retrofit Downlights are designed with the look of sophistication in mind. The deep stepped baffle crafted on these downlights drastically reduces glare and with a high CRI rating of 90, users can enjoy enhanc
Safety Listing:
cETLus - Classified
Short Description:
9.5WLED/DLR/4/WS/5CCT/RD/DB
Temperature (CCT):
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant:
Yes
Title 24 Compliant:
Yes
Total Harmonic Distortion:
<25%
Wattage Selectable:
Yes
Weight Lb.:
0.39
Manufactured By:
Satco Products Inc.
