Gleam by Fanimation will take center stage in your home. This sleek fan is available in two finish combinations and comes with a 20 watt LED light kit with opal frosted glass. Gleam has a 3 speed AC motor. *Damp Rated for indoor or outdoor use *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use

Gleam by Fanimation will take center stage in your home. This sleek fan is available in two finish combinations and comes with an 18 watt LED light kit with opal frosted glass. Gleam has a 3 speed AC motor. *Damp Rated for indoor or outdoor use *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use

Product Availability

Item appears to be in stock and ready to ship

Additional Information

1531 Cfm On High

20 Watt Led Light Kit And Bulb Included

3 Speed Ac Motor With Reverse Switch, Fan Speed, Light Controls And Sleep Timer Features

Limited Lifetime Warranty

Tr500 Handheld Remote With 23a Battery Included

Wifi Or Bluetooth Compatible (required Controls Sold Separately)

Info & Guides

Click Here to View Spec Sheet Details

Click Here to View Owners Manual

Technical Details

Energy Information at High Speed

Airflow:

1531 Cubic Feet per Minute

Electricity Rate:

44.8 Watts (excluded lights)

Airflow Efficiency:

34 Cubic Feet Per Minute Per Watt

Details

Category:

Fans

Subcategory:

Ceiling Fans with Light

Finish:

Black /vendors/vendorImages black.jpg

Style:

Transitional

Option:

Damp Rated

LED

Glass Finish or Style:

Frosted

Opal

Number of Blades:

4 Blades

Location Rating:

Damp Rated

Wattage:

20w

Category:

Fan-Uni

Finish:

Black

Option:

Damp

Family:

Gleam

Glass:

Opal Frosted

Voltage:

120 V

Number of Bulbs:

1 Bulbs

Additional Info:

1531 CFM on High

20 watt LED light kit and bulb included

3 speed AC motor with reverse switch, fan speed, light controls and sleep timer features

Limited Lifetime Warranty

TR500 handheld remote with 23A battery included

WiFi or bluetooth compatible (required controls sold separately)

Air Flow CFM:

1531

Air Flow Efficiency:

Amperage:

0.38

Blade Finish:

Black

Blade Pitch:

Bulb Type:

20 Watt LED Module

Canopy:

5.75 Dia x 2.57 H

Diameter:

23.7

Down Rod Included:

4.5

Electricity Used:

44.8

Harmonized Codes:

8414.51.3000

Kelvin:

3000

Length:

23.7

Light Kit Included:

Yes

Lumens / Light Output:

2200

Material:

Composite

Motor Fan Speed:

Motor RPM:

563

Motor Size:

82 X 30

Motor Type:

Remote Control Included:

TR500

Ship Carton Height:

11.5

Ship Carton Length:

25.71

Ship Carton Width:

25.63

Ship Weight:

25.55

Sold By:

Each

Warranty:

Limited Lifetime

Weight:

20.9

Airflow Efficiency Low:

Airflow Efficiency Medium:

Avg Airflow Efficiency:

Avg CFM Energy:

1206

Avg Energy Use Watts:

Avg Estimated Yearly Energy Cost:

Avg Estimated Yearly Energy Cost on HIGH:

Blade Finish Method:

Painted

Blade Material:

Composite

Blade Reversible:

Blade Sweep:

Bulb Base:

Connector Pin

Bulb CRI:

Bulb Wattage:

Canopy Diameter:

5.75 Dia

Canopy Height:

2.57 H

Cap Included:

Carton Cubic Feet:

4.39

Cartons Per Unit:

Case Height:

11.5

Case Length:

25.71

Case Quantity:

Case Weight Pounds:

25.55

Case Width:

25.63

CEC Uploaded:

Yes

Ceiling To Blade Edge:

14.67

Ceiling To Bottom:

14.91

CFM Low:

839

CFM Medium:

1287

Compatible Accessories:

CCK8002BL, DR1-12BL, DR1-18BL, DR1-24BL, DR1-36BL, DR1-48BL, DR1-60BL, DR1-72BL, DR1-CPBL, SCB1-52

Compatible Controls:

BTCR9, BTR9, CRL4WH, WFR50

Compatible Wall Controls:

CWRL4LA, CWRL4WH, WC2WH, WR501WH

Country of Origin:

China

CRI:

Current Draw High:

0.38

Current Draw Low:

0.25

Current Draw Medium:

0.34

Damp Rated:

Yes

DOE Classification:

VSD

DOE-FTC Uploaded:

Yes

DOEFTC Uploaded:

Yes

Downrod Length:

4.5

Exempt from DOE Procedure:

Fan Energy Star:

Housing Diameter:

23.7

Included Control:

TR500

Included Control Type:

Handheld

Leadwire:

Light Kit Energy Star:

Max Ceiling Slope:

Max Watt:

44.8

Maximum Slope Degree:

Motor Finish Method Type:

Painted

Motor Reversible:

Yes

Number of Blades:

Number Of Speeds:

Regulated Product:

Yes

Reverse Switch Location:

Motor Housing

RPM High (VI):

563

RPM Low (II):

325

RPM Low II:

RPM Medium (IV):

461

Safety Rating:

UL Approved, cUL Approved

Voltage Cycles:

60 hz

Watts Low:

17.5

Watts Medium:

33.3

Watts Per Bulb:

Manufactured By:

Fanimation

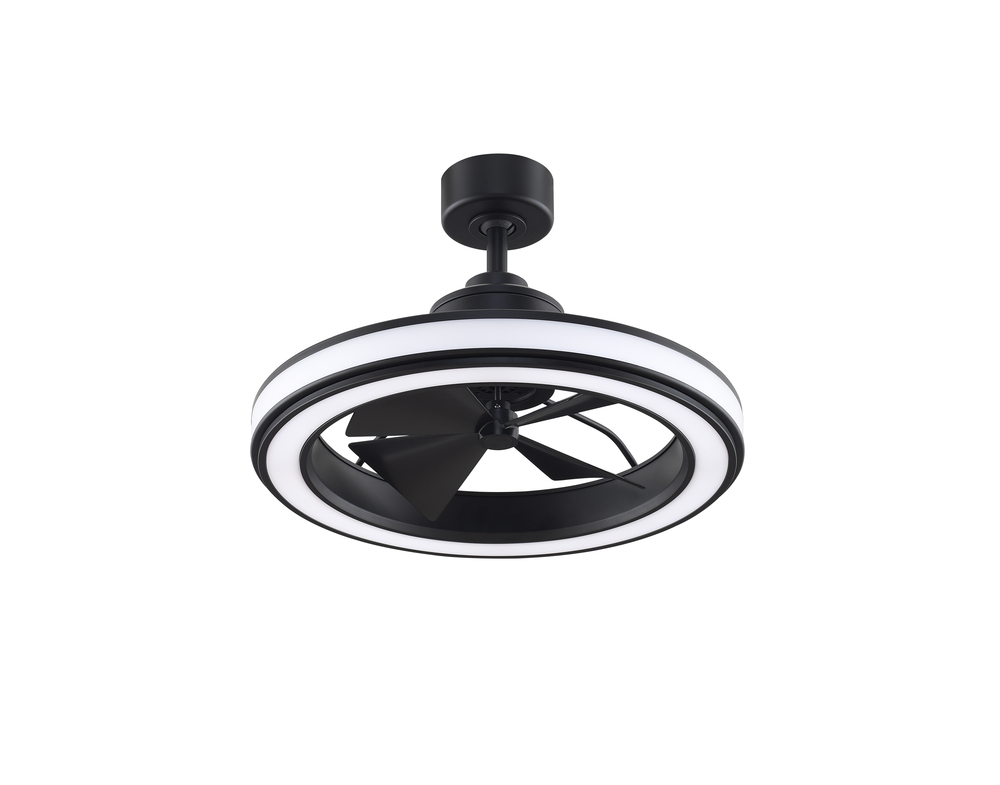

Gleam - 16 inch - BL with LED Light Kit by Fanimation

Gleam - 16 inch - BL with LED Light Kit
by Fanimation
