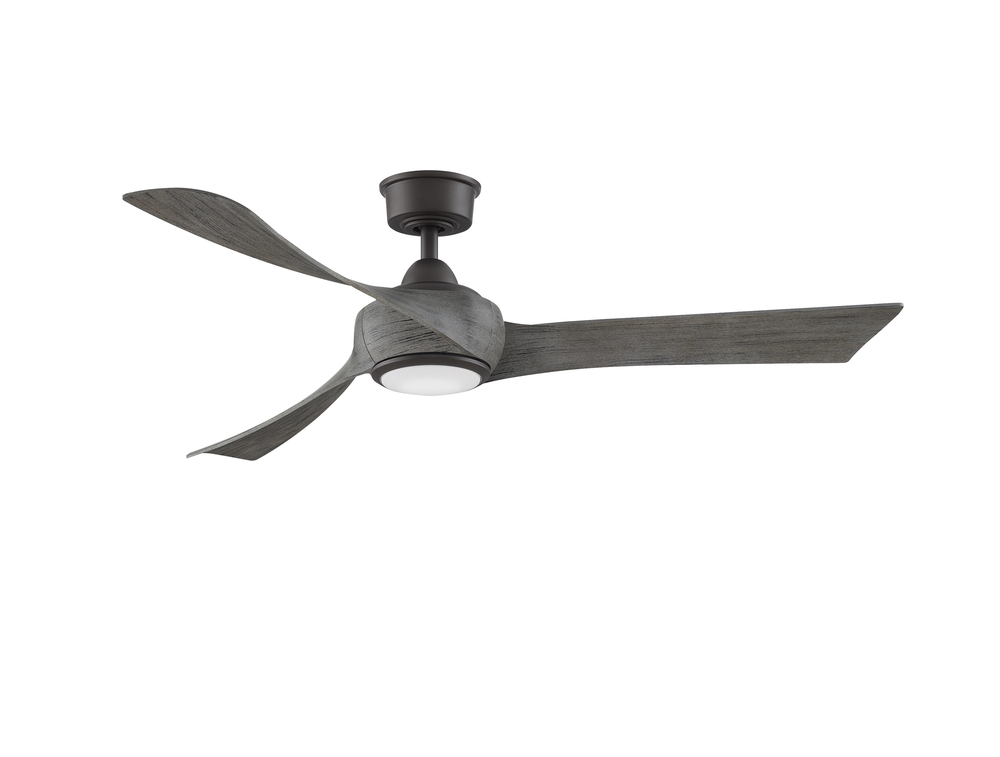

Wrap yourself in style with this sophisticated ceiling fan from Fanimation. With many motor and blade finish combinations available, Wrap Custom is a versatile ceiling fan. LED and CCT Select Light kit, blades and motor sold separately. *Damp Rated for indoor or outdoor use *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use

Wrap yourself in style with this sophisticated ceiling fan from Fanimation. With many motor and blade finish combinations available, Wrap Custom is a versatile ceiling fan. Light kit, blades and motor sold separately. *Damp Rated for indoor or outdoor use *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Additional Information

7141 Cfm On High

Compatible With Most Smart Home Devices (required Controls Sold Separately)

Dc Motor With Reverse Switch, Variable Speeds, Light Controls, Sleep Timer, Home Away, Fresh Air And Safe Exit Features

Energy Star Most Efficient 2022

Set Of (3) Damp Rated Blades With Multiple Finish Options Available And 18 Watt Led Cct Select Light Kit Available (sold Separately)

Tr305 Handheld Remote With 23a Battery Included

Info & Guides

Click Here to View Spec Sheet Details

Click Here to View Owners Manual

Technical Details

Energy Information at High Speed

Airflow:

7141 Cubic Feet per Minute

Electricity Rate:

36 Watts (excluded lights)

Airflow Efficiency:

200 Cubic Feet Per Minute Per Watt

Details

Category:

Fans

Subcategory:

Fan Motor Without Blades

Finish:

Gray /vendors/vendorImages gray.jpg

Miscellaneous /vendors/vendorImages miscellaneous.jpg

Style:

Traditional

Option:

Energy Star /vendors/vendorImages energy star.jpg

Damp Rated

Number of Blades:

3 Blades

Location Rating:

Damp Rated

Wattage:

Category:

Fan-Multi

Finish:

Matte Greige

Option:

Damp

Family:

Wrap Custom

Voltage:

120 V

Additional Info:

7141 CFM on High

Compatible with most Smart home devices (required controls sold separately)

DC motor with reverse switch, variable speeds, light controls, sleep timer, home away, fresh air and

ENERGY STAR Most Efficient 2020

Set of 3 Damp Rated blades with multiple finish options and 18 watt LED light kit (sold separately)

TR205D handheld remote with CR2032 batteries included

Air Flow CFM:

7141

Air Flow Efficiency:

200

Amperage:

0.49

Blade Pitch:

Varied

Canopy:

6.14 Dia x 2.55 H

Diameter:

8.88

Down Rod Included:

4.5

Electricity Used:

Harmonized Codes:

8414.51.3000

Length:

44, 48, 52, 56, 60

Light Kit Included:

Max Length:

Max Width:

Motor Fan Speed:

Motor RPM:

138

Motor Size:

158 X 22

Motor Type:

Remote Control Included:

TR205D

Ship Carton Height:

7.6

Ship Carton Length:

16.34

Ship Carton Width:

8.86

Ship Weight:

14.99

Sold By:

Each

Warranty:

Limited Lifetime

Weight:

12.13

Airflow Efficiency Low:

404

Airflow Efficiency Medium:

552

Avg Airflow Efficiency:

211

Avg CFM Energy:

5114

Avg Energy Use Watts:

Avg Estimated Yearly Energy Cost:

Avg Estimated Yearly Energy Cost on HIGH:

Canopy Diameter:

6.14 Dia

Canopy Height:

2.55 H

Cap Included:

Yes

Carton Cubic Feet:

0.64

Cartons Per Unit:

Case Height:

7.6

Case Length:

16.34

Case Quantity:

Case Weight Pounds:

14.99

Case Width:

8.86

CEC Uploaded:

Yes

Ceiling To Blade Edge:

11.83

Ceiling To Bottom:

12.46

13.05

CFM Low:

728

CFM Medium:

4359

Compatible Accessories:

CCK8002GRW, DR1-12GR, DR1-18GR, DR1-24GR, DR1-36GR, DR1-48GR, DR1-60GR, DR1-72GR, DR1-CPGR, SCB1-52

Compatible Blades:

BPW8530-44BL, BPW8530-44BN, BPW8530-44DWA, BPW8530-44N, BPW8530-44WE, BPW8530-44WW, BPW8530-48BL, BPW8530-48BN, BPW8530-48DWA, BPW8530-48N, BPW8530-48WE, BPW8530-48WW, BPW8530-52BL, BPW8530-52BN, BPW8530-52DWA

BPW8530-52N, BPW8530-52WE, BPW8530-52WW, BPW8530-56BL, BPW8530-56BN, BPW8530-56DWA, BPW8530-56N, BPW8530-56WE, BPW8530-56WW, BPW8530-60BL, BPW8530-60BN, BPW8530-60DWA, BPW8530-60N, BPW8530-60WE, BPW8530-60WW

Compatible Light Kits:

LK8530GR

Compatible Wall Controls:

TW306

Country of Origin:

China

Current Draw High:

0.49

Current Draw Low:

0.04

Current Draw Medium:

0.13

Damp Rated:

Yes

DOE Classification:

LSSD

DOE-FTC Uploaded:

Yes

DOEFTC Uploaded:

Yes

Downrod Length:

4.5

Exempt from DOE Procedure:

Fan Energy Star:

Yes

Housing Diameter:

8.88

Included Control:

TR305

Included Control Type:

Handheld

Leadwire:

Max Ceiling Slope:

Max Watt:

Maximum Slope Degree:

Motor Finish Method Type:

Painted

Motor Reversible:

Yes

Number of Blades:

Number Of Speeds:

Regulated Product:

Yes

Reverse Switch Location:

Control

RPM High (VI):

138

RPM Low (II):

RPM Medium (IV):

Safety Rating:

UL Approved, cUL Approved

Voltage Cycles:

60 hz

Watts Low:

Watts Medium:

Manufactured By:

Fanimation
