Part Number: 905360FMB-LWD / Vendor ID Number: 87 / Custom:

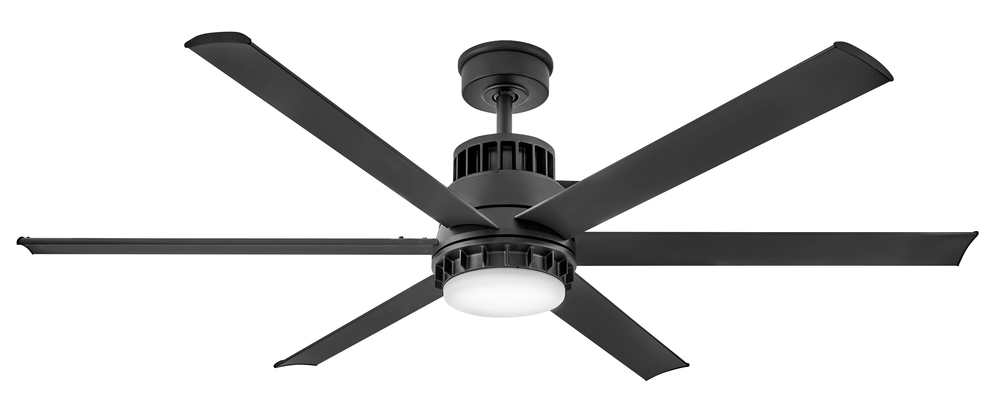

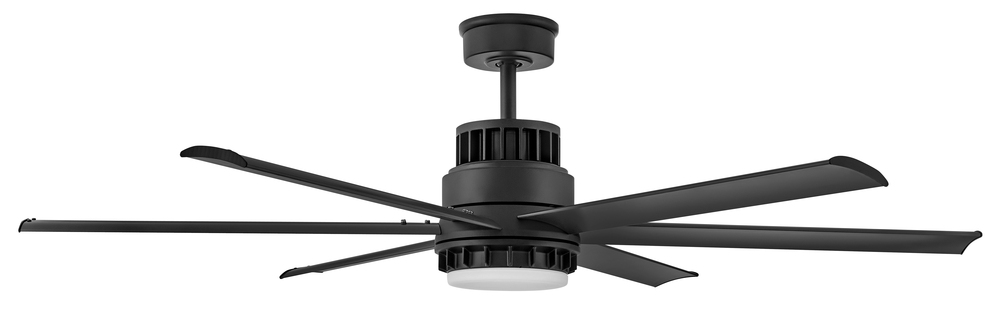

Draftsman 60" LED Smart Fan

Draftsman 60" LED Smart Fan
by Hinkley

Call For Price
44 In Stock
Qty
Product Specification

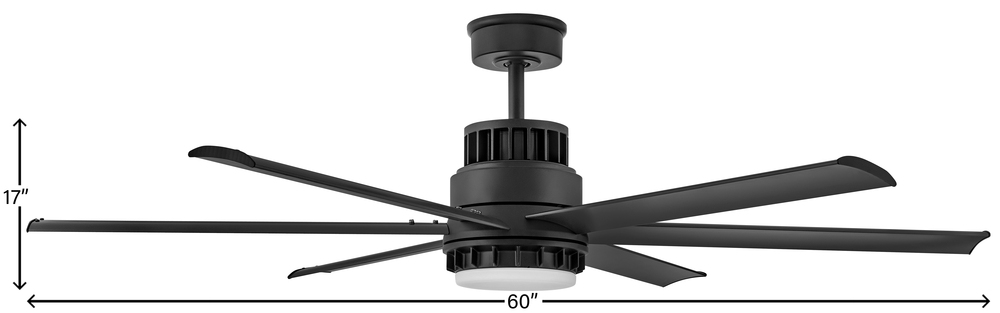

Dimensions
Height: 17.00"
Width: 60.00"
Length: 60.00"
Product Overview
Draftsman's updated transitional form ties perfectly into any space while delivering superior performance. Matte White and Matte Black finish options enhance Draftsman's industrial-inspired design to complement indoor and outdoor spaces alike. With integrated LED and DC motor technology, Draftsman delivers excellent energy efficiency. For lower ceilings, a flush mount kit is an accessory option for easy customization. Operated by the HIRO control or WiFi-compatible with the Hinkley app.
Product Availability
    Item appears to be in stock and ready to ship
Additional Information
Blades, controls, switches, capacitors and hardware carry a 1-year warranty

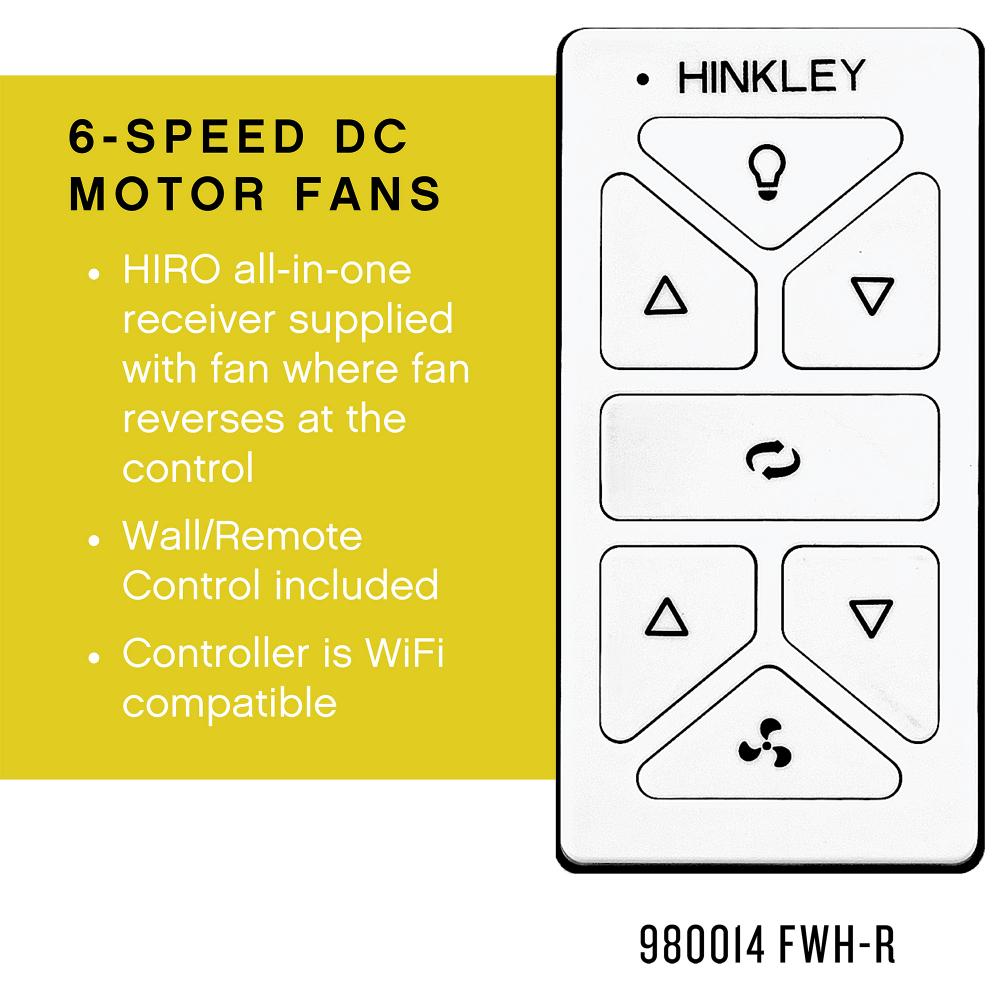

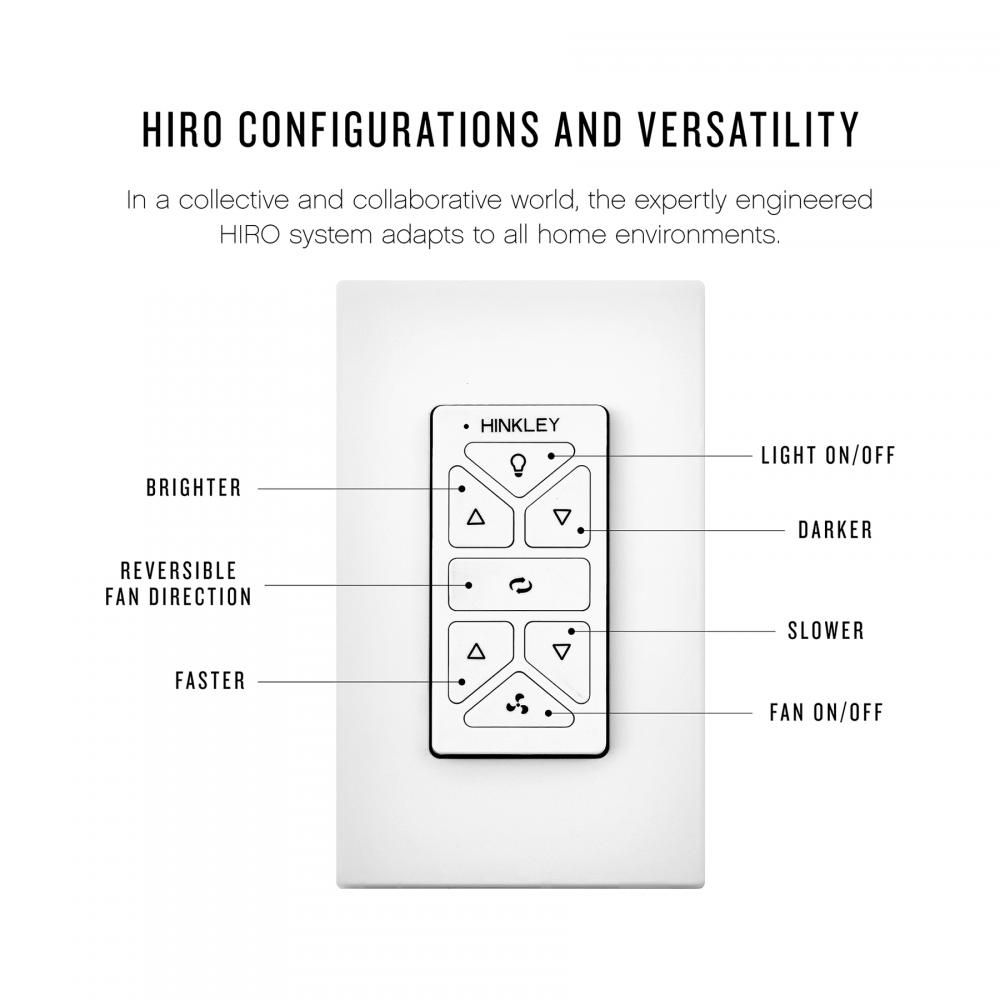

Fan Control included, HIRO Control - 6 Speed Reversing
Fans should be installed at a minimum of 7 feet from the floor
For more information on how to control your ceiling fan via the Hinkley Home Automation App, click here.
LED components carry a 5-year limited warranty
Merging the best of traditional and modern elements with a sophisticated and streamlined look
Motor carries a lifetime warranty
Powered by a highly efficient and quiet DC motor
Suitable for use in wet (outdoor direct rain) locations as defined by NEC and CEC. Meets United States UL Underwriters Laboratories & CSA Canadian Standards Association Product Safety Standards
This item includes a 6" down rod. Other various lengths of down rods are available and sold separately to customize the installation height.
This item may be hung on a sloped ceiling
This product uses recyclable or limited packaging materials to help reduce waste.
WiFi compatible with included fan control
Technical Details
Details
Category:
Exterior
Fans
Subcategory:
Exterior Fans
Ceiling Fans with Light
Finish:
Black /vendors/vendorImages black.jpg
Style:
Transitional
Industrial
Option:
Wet Rated
Prop 65 /vendors/vendorImages prop65.png

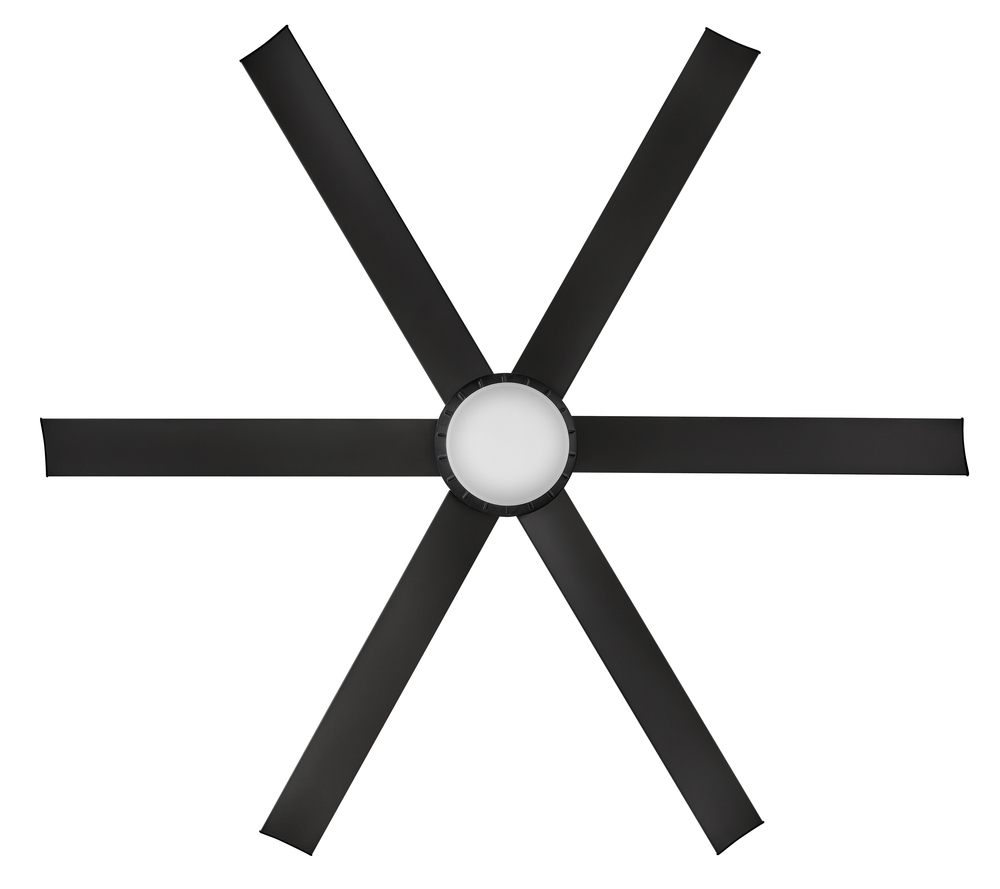

Number of Blades:
6 Blades
Subfinish:
Matte Black
Location Rating:
Wet Rated
Category:
Fan
Finish:
Matte Black
Style:
Industrial
Family:
Draftsman
Glass:
White Frosted
Voltage:
120 V
Number of Bulbs:
1 Bulbs
Air Flow Efficiency:
8389
Amperage:
0.51
Blade Finish:
Matte Black
Blade Pitch:
12
Blade Span:
60
Blades Included:
Yes
Bulb Dimmable:
Yes - CL Type Dimmer (SSL7A)
Bulb Hours:
50000
Bulb Type:
LED

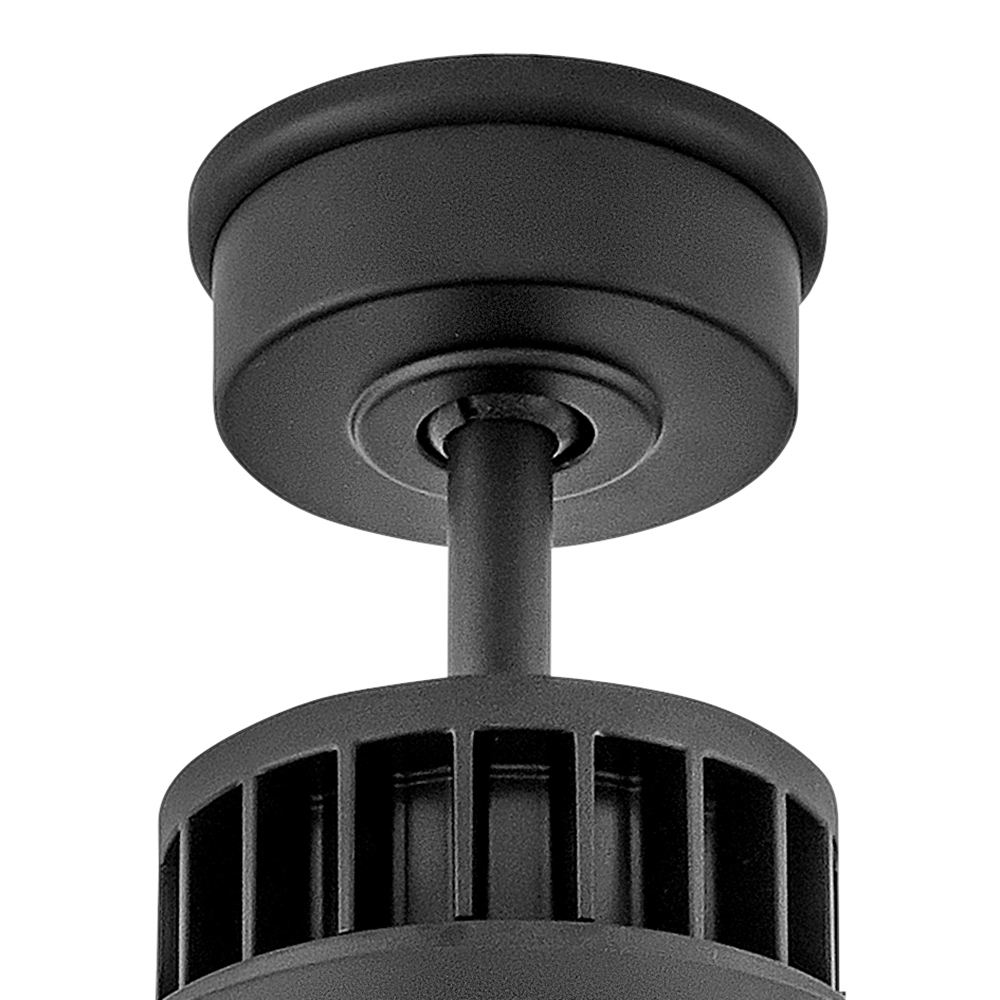

Canopy:
6.5 Dia. x 2.5 D
Introduction Date:
01/01/2023

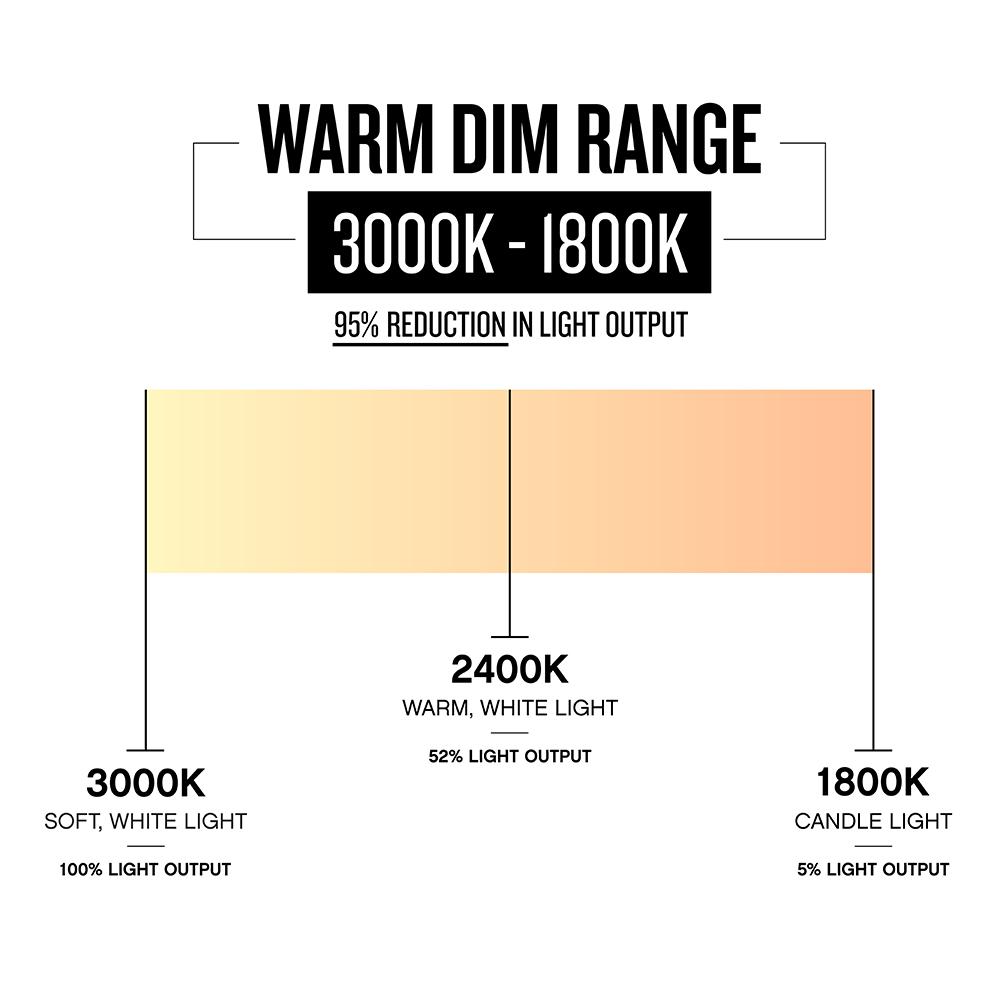

Kelvin:
3000
Light Kit Included:
Yes
Lumens / Light Output:
1320
Material:
Steel
Motor Size:
DC 155 x 22 (Ferrite)
Motor Type:
DC
Ship Carton Height:
9
Ship Carton Length:
34
Ship Carton Width:
17
Ship Weight:
33
Vendor Ship Method:
Parcel
Weight:
26
Airflow Avg:
5776
AMPS Avg:
0.3
Avg Energy Use:
23
Blade Material:
Aluminum
Blade Options Available:
No
Blade To Ceiling Height:
12.75
Blades Reversible:
No
Bulb CRI:
90
Bulb Included:
Yes
Control Type:
HIRO Control - 6 Speed Reversing
Country of Origin:
China
Dual Mount:
No
Efficiency Avg:
250
Efficiency High:
255
Energy Cost Avg:
6
Energy Cost High:
9
Energy Use High:
32.9
Fan Control:
Yes
Flush Mount Fan:
No
Incandescent Equivalency:
100 W
Light Kit Adaptable:
No

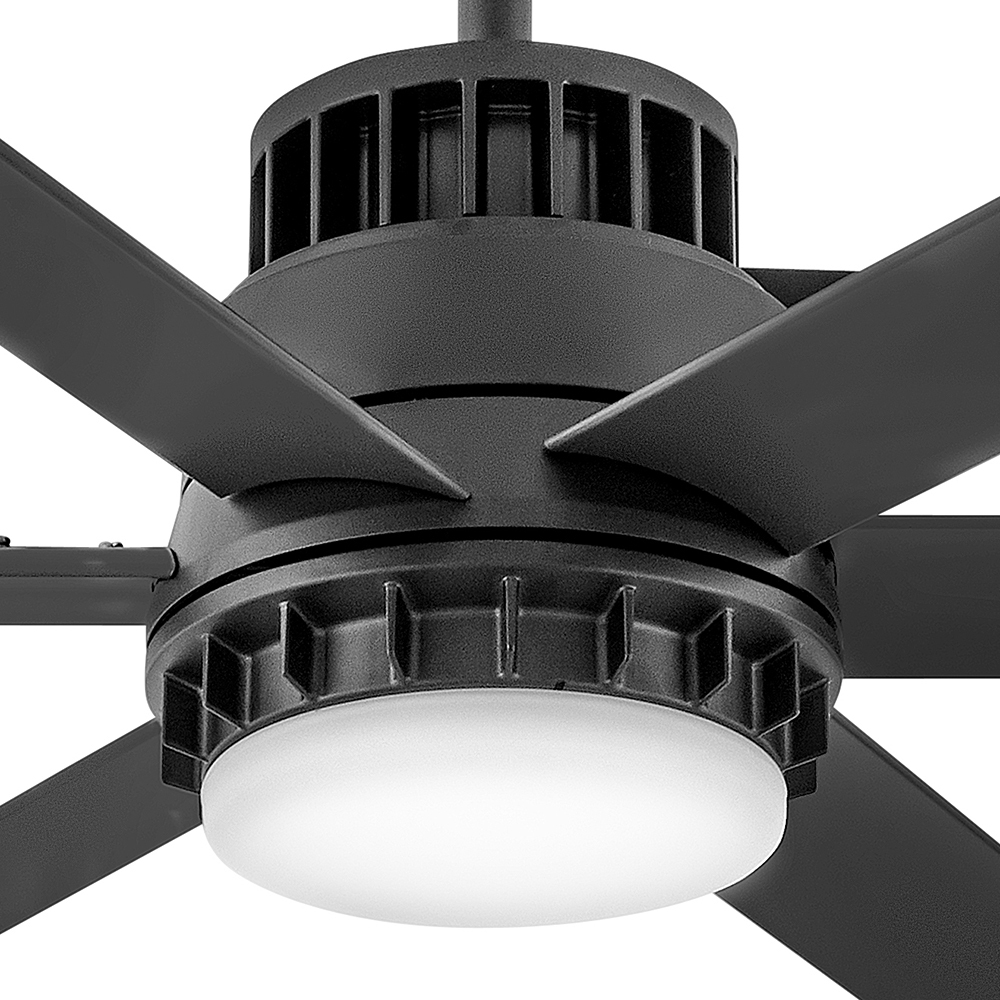

Light Source:
Integrated LED
Location Rating:
Wet Rated
Max Wattage:
16 W
Motor Fan Speed:
6
Number of Blades:
6
Operating Frequency:
60
Prop 65 Description:
View
Receiver Included:
Yes
Reversing Control:
Yes
RPMS Avg:
99
RPMS High:
147
Safety Rating:
UL Approved, C-US Approved
Single Power Switch:
No
Slope:
20
Sloped Ceiling Adaptable:
Yes
Stand By Power:
0.2
Style-2:
Transitional
Title 24:
No
WIFI Control Included:
Yes
WIFI Control Optional:
No
Manufactured By:
Hinkley
