Part Number: 902744FMM-LWD / Vendor ID Number: 87 / Custom:

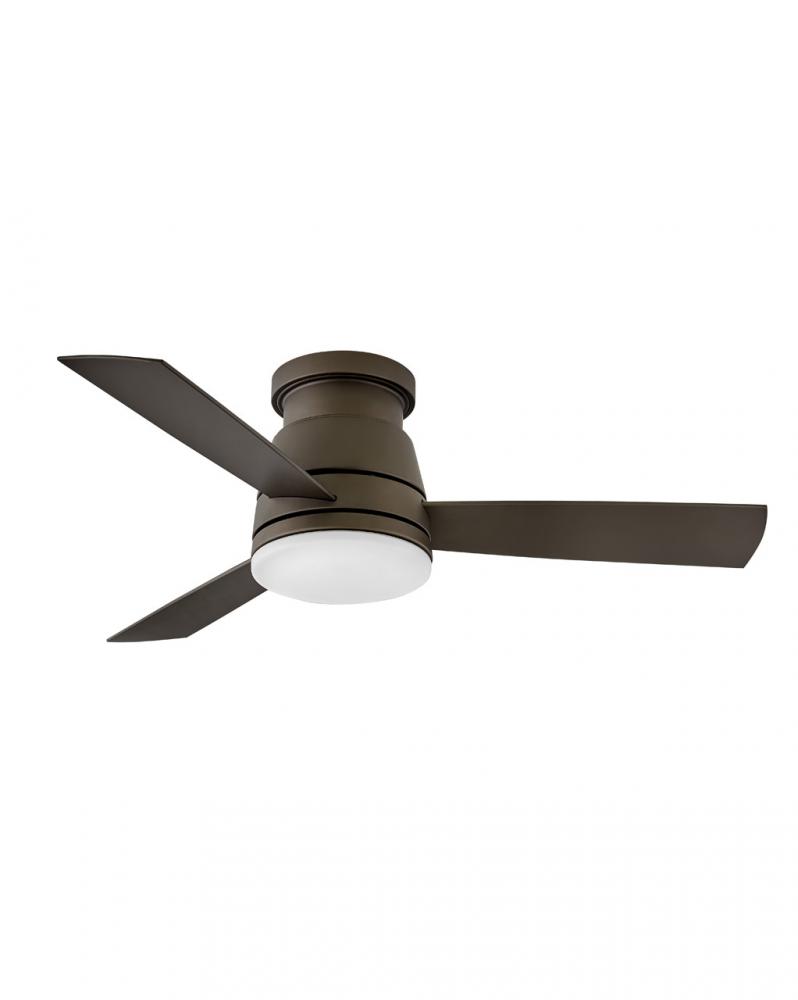

Trey 44" LED Smart Fan

Trey 44" LED Smart Fan
by Hinkley

Call For Price
Call for Availability
Qty
Product Specification

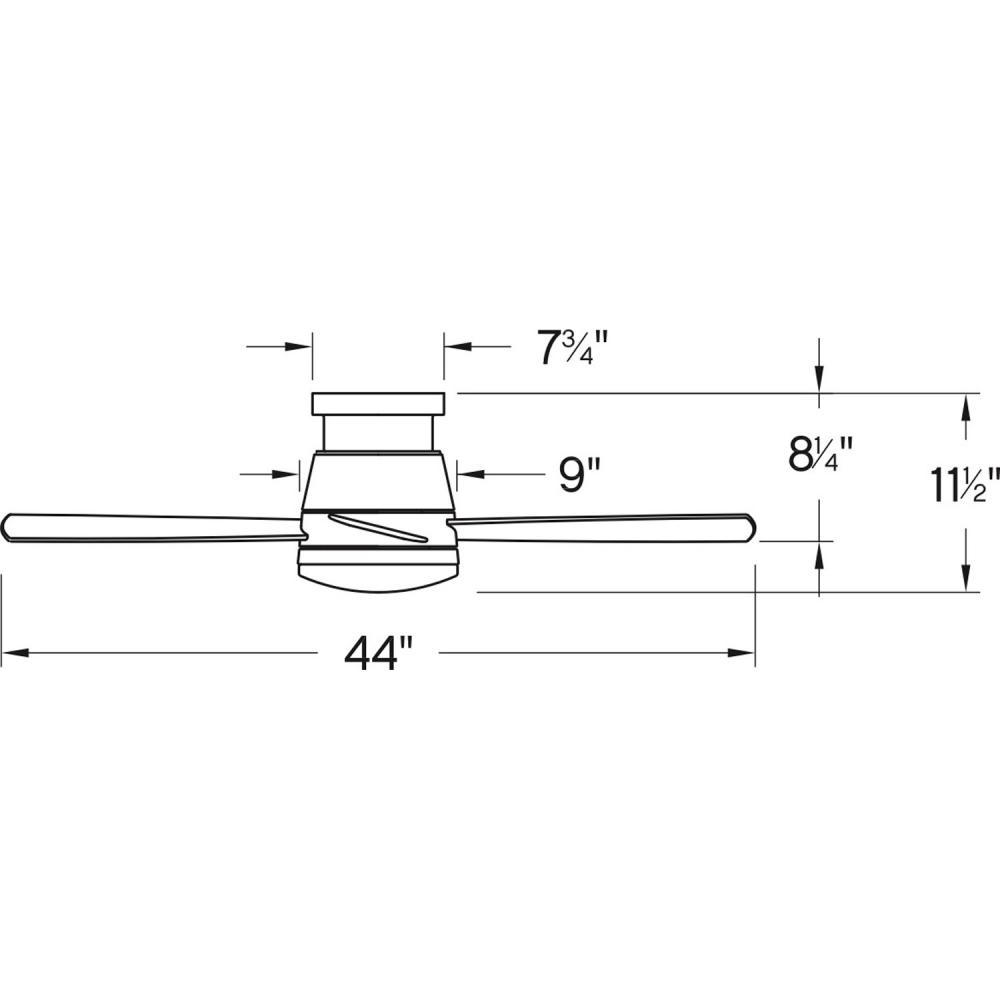

Dimensions
Height: 11.75"
Width: 44.00"
Length: 44.00"
Product Overview

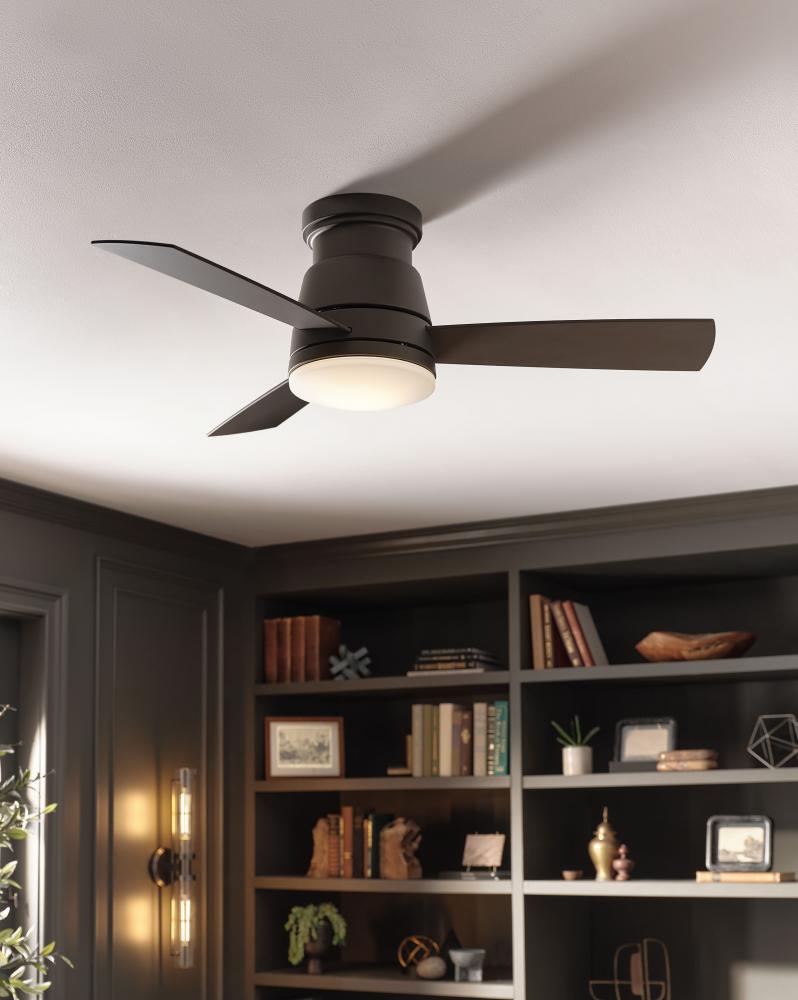

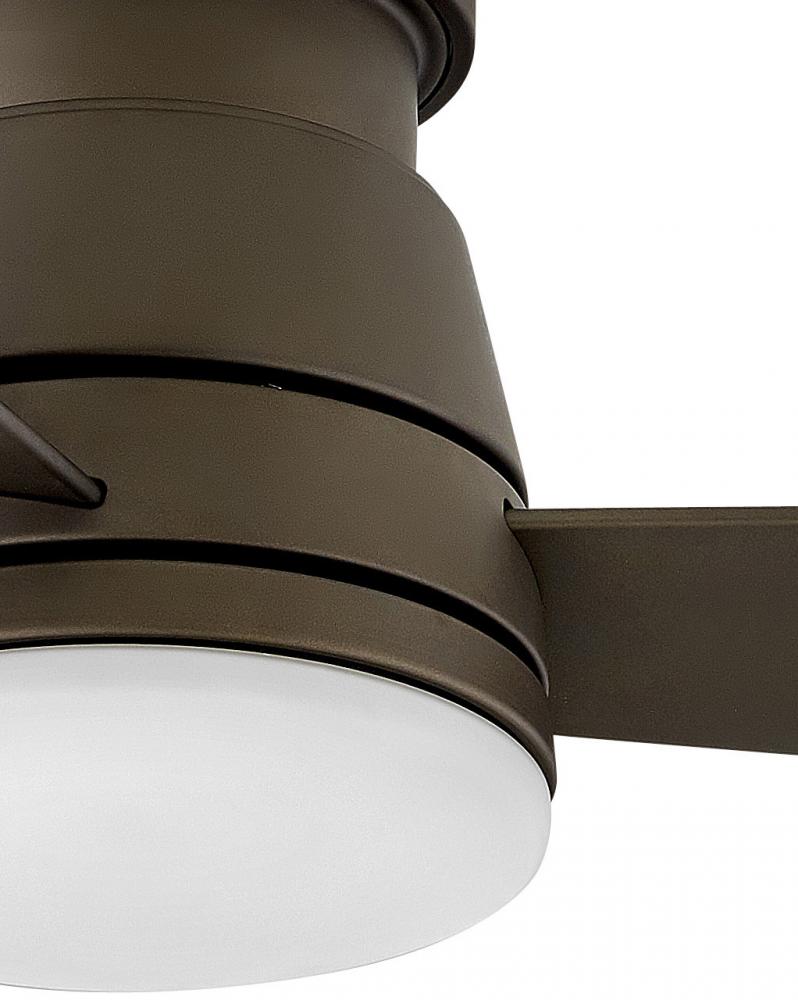

Trey features a sleek flush mount design that packs a powerful punch. Its transitional style comes equipped with robust blades that seamlessly pair performance and precision. Trey is offered in versatile Brushed Nickel, Metallic Matte Bronze and Matte White finish options, and its integrated LED lighting and DC motor technology deliver excellent energy efficiency. A timeless etched opal light kit completes the look for a refined appearance. Trey is so versatile; it can be used for both indoor and outdoor spaces. Blades are included with every fan.
Product Availability
Additional Information
Blades, controls, switches, capacitors and hardware carry a 1-year warranty

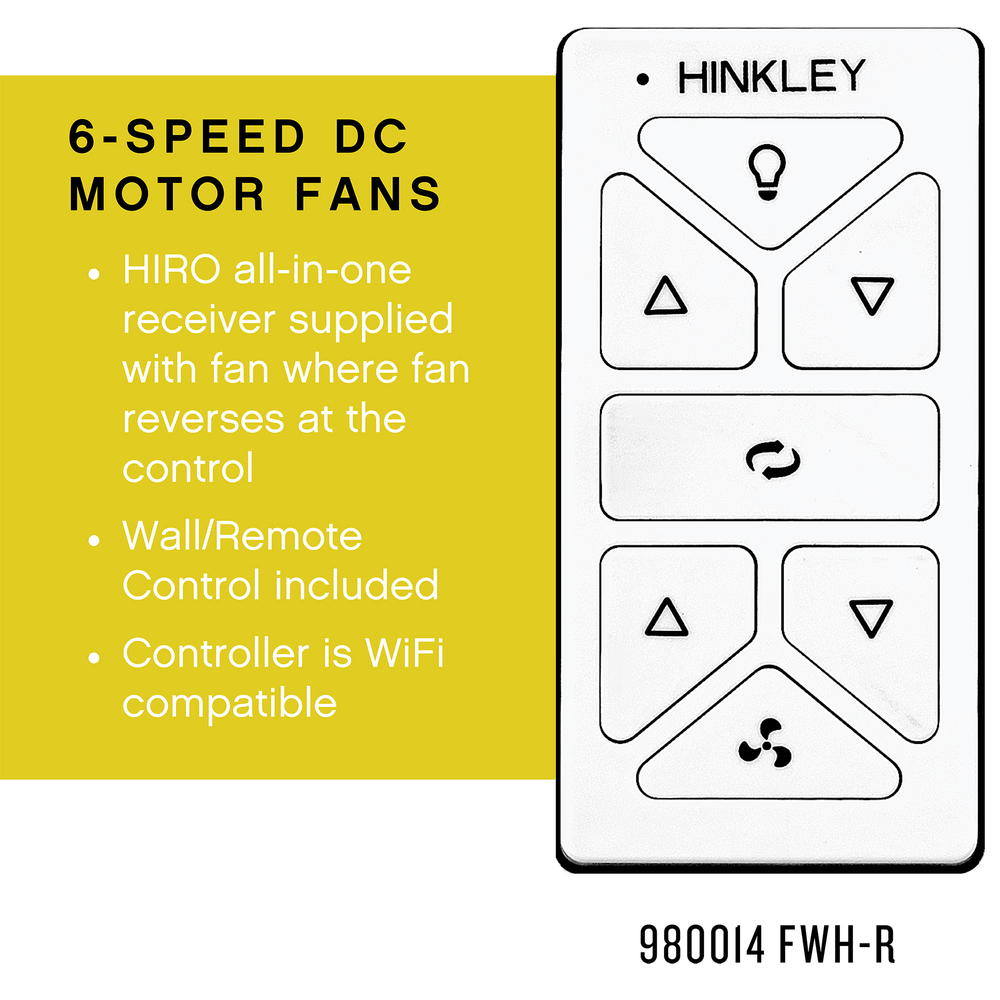

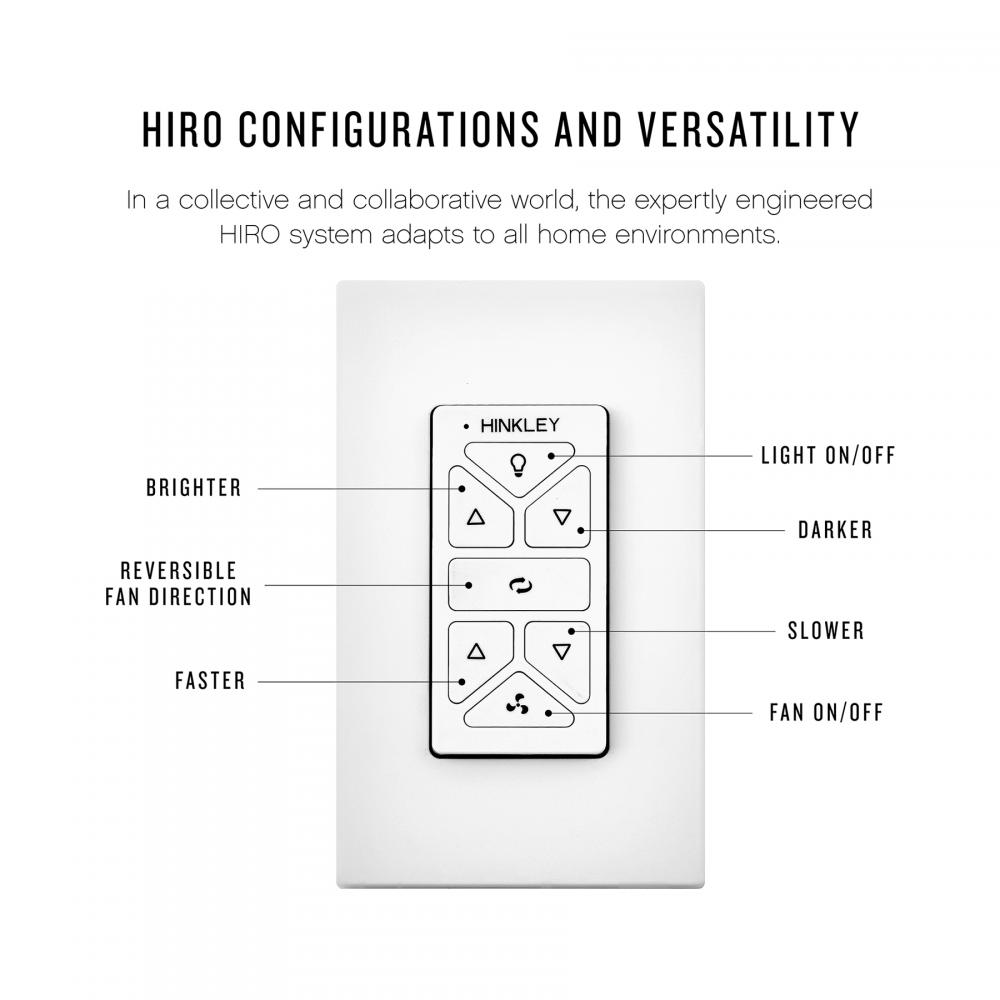

Fan Control included, HIRO Control - 6 Speed Reversing
Fans should be installed at a minimum of 7 feet from the floor
For more information on how to control your ceiling fan via the Hinkley Home Automation App, click here.
LED components carry a 5-year limited warranty
Merging the best of traditional and modern elements with a sophisticated and streamlined look
Motor carries a lifetime warranty
Suitable for use in wet (outdoor direct rain) locations as defined by NEC and CEC. Meets United States UL Underwriters Laboratories & CSA Canadian Standards Association Product Safety Standards
WiFi compatible with included fan control
Technical Details
Details
Category:
Exterior
Fans
Subcategory:
Exterior Fans
Outdoor Fans
Finish:
Bronze /vendors/vendorImages bronze.jpg
Style:
Transitional
Option:
Title 24 /vendors/vendorImages ca title 24 compliant.jpg
Wet Rated
LED
Prop 65 /vendors/vendorImages prop65.png
Glass Finish or Style:
Etched
Opal
Number of Blades:
3 Blades
Location Rating:
Wet Rated
Category:
Fan
Finish:
Metallic Matte Bronze
Style:
Transitional
Family:
Trey
Glass:
Etched Opal
Voltage:
120 V
Number of Bulbs:
1 Bulbs
Air Flow Efficiency:
4842
Amperage:
0.43
Blade Finish:
Metallic Matte Bronze
Blade Pitch:
14
Blade Span:
44
Blades Included:
Yes
Bulb Dimmable:
Yes - CL Type Dimmer (SSL7A)
Bulb Hours:
50000
Bulb Type:
LED
Canopy:
8 Dia.
Introduction Date:
06/01/2020
Kelvin:
3000
Light Kit Included:
Yes
Lumens / Light Output:
1320
Material:
Aluminum
Motor Size:
153 x 10
Motor Type:
DC
Ship Carton Height:
11.75
Ship Carton Length:
26
Ship Carton Width:
10.75
Ship Weight:
17.75
Vendor Ship Method:
Parcel
Weight:
14.82

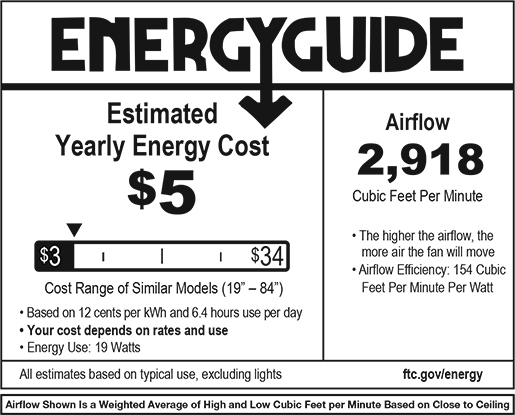

Airflow Avg:
2918
AMPS Avg:
0.24
Avg Energy Use:
19
Blade Material:
Composite
Blade Options Available:
No
Blade To Ceiling Height:
8.25
Blades Reversible:
No
Bulb CRI:
90
Bulb Included:
Yes
Control Type:
HIRO Control - 6 Speed Reversing
Country of Origin:
China
Dual Mount:
No
Efficiency Avg:
154
Efficiency High:
152
Energy Cost Avg:
5
Energy Cost High:
9
Energy Use High:
31.6
Fan Control:
Yes
Flush Mount Fan:
Yes
Incandescent Equivalency:
100 W
Light Kit Adaptable:
No
Light Source:
Integrated LED
Location Rating:
Wet Rated
Max Wattage:
16 W
Motor Fan Speed:
6
Number of Blades:
3
Operating Frequency:
60
Prop 65 Description:
View
Receiver Included:
Yes
Reversing Control:
Yes
RPMS Avg:
153
RPMS High:
260
Safety Rating:
UL Approved, C-US Approved
Single Power Switch:
Yes
Sloped Ceiling Adaptable:
No
Stand By Power:
0.2
Title 24:
No
WIFI Control Included:
Yes
WIFI Control Optional:
No
Manufactured By:
Hinkley
