Item Sales Info

Part Number: 902466FGT-LWD / Vendor ID Number: 87 / Custom:

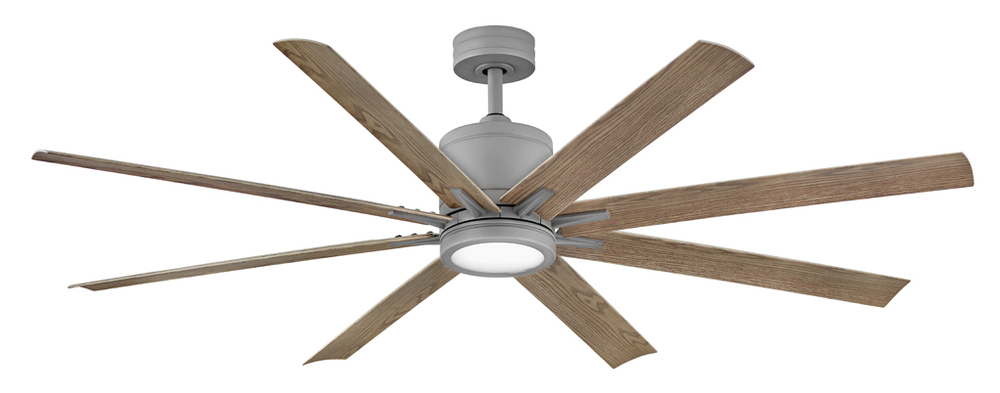

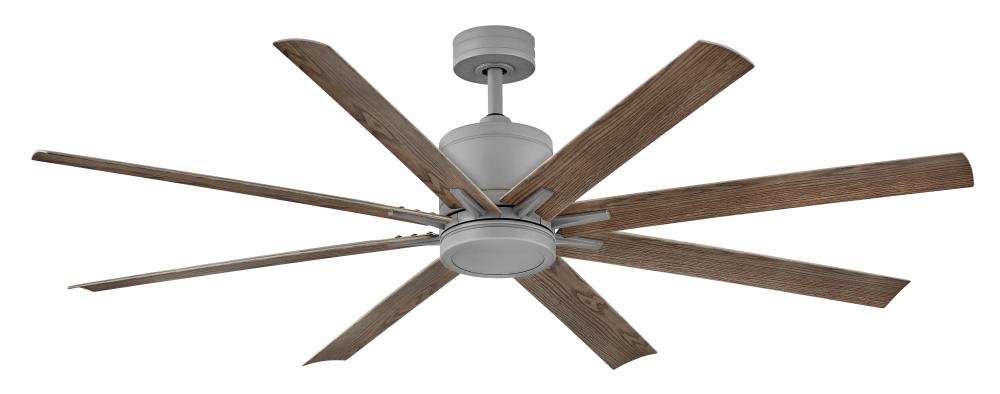

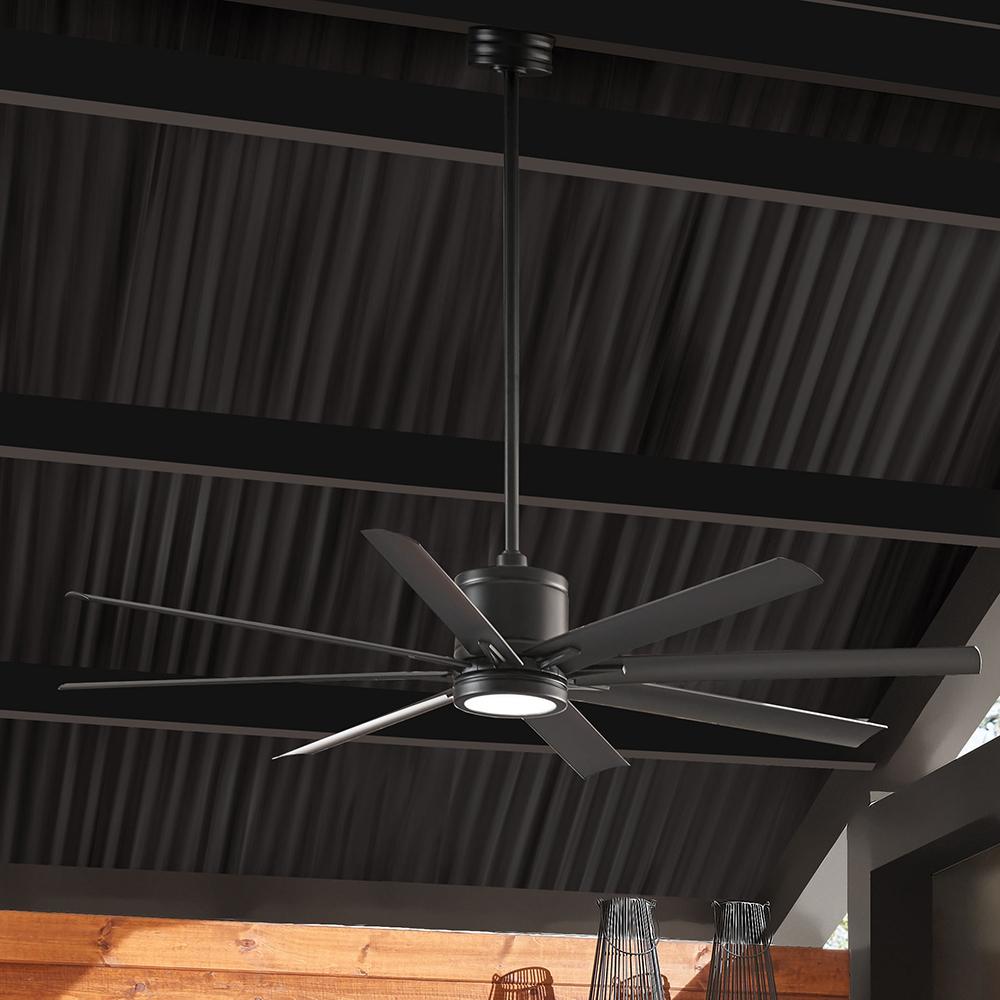

Vantage 66" LED Smart Fan
by Hinkley

Call For Price

188 In Stock

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Specification

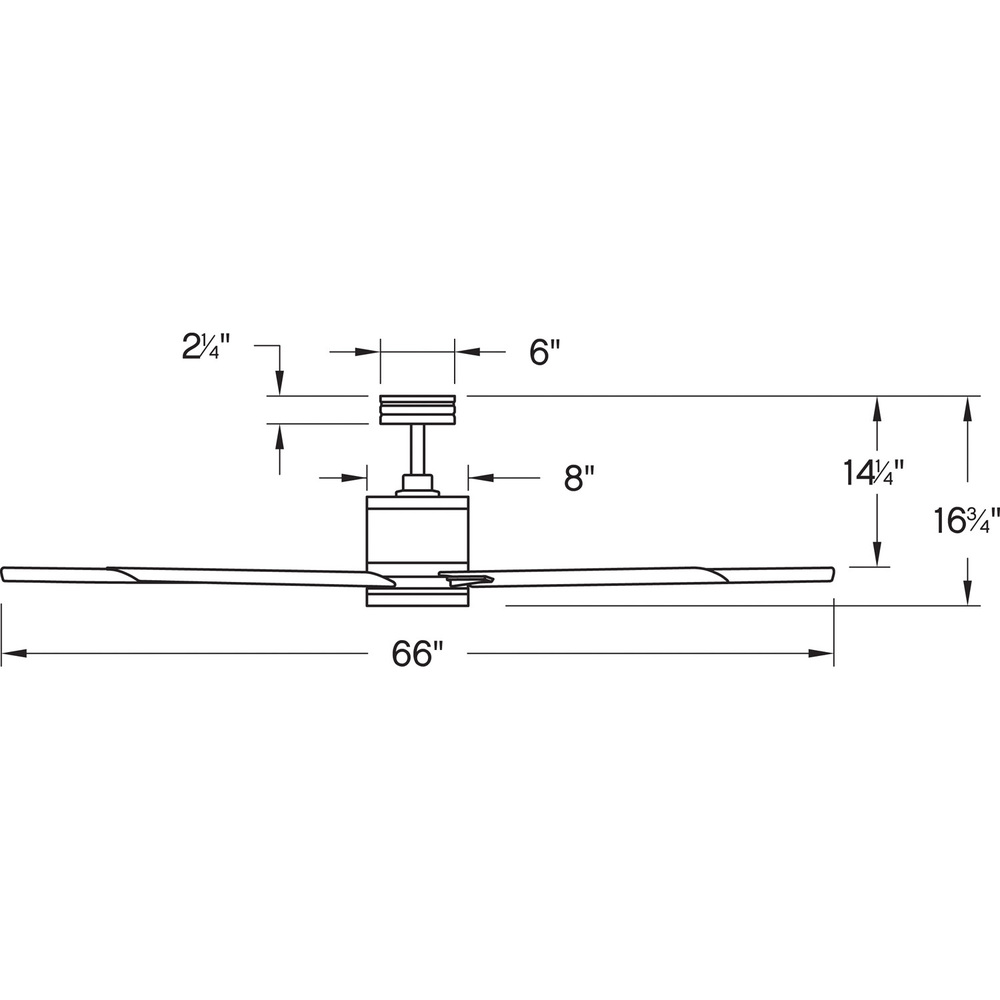

Dimensions

Height: 16.75"

Width: 66.00"

Length: 66.00"

Product Overview

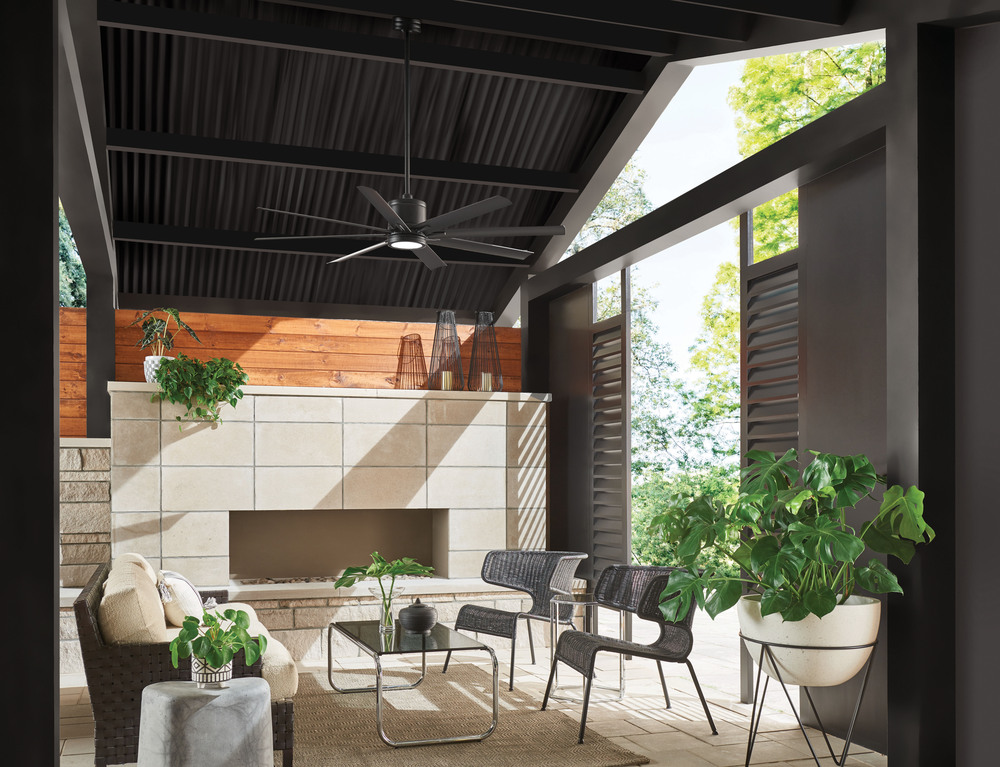

Create a major aesthetic statement with Vantage's modern industrial design featuring gently curved blades. Available in a variety of finish options, Vantage can be applied to a range of spaces. Equipped with integrated LED and DC motor technology to deliver excellent energy efficiency. Vantage is so versatile; it can be used for both indoor and outdoor spaces.

Product Availability

Item appears to be in stock and ready to ship

Finish:

Additional Information

Blades, controls, switches, capacitors and hardware carry a 1-year warranty

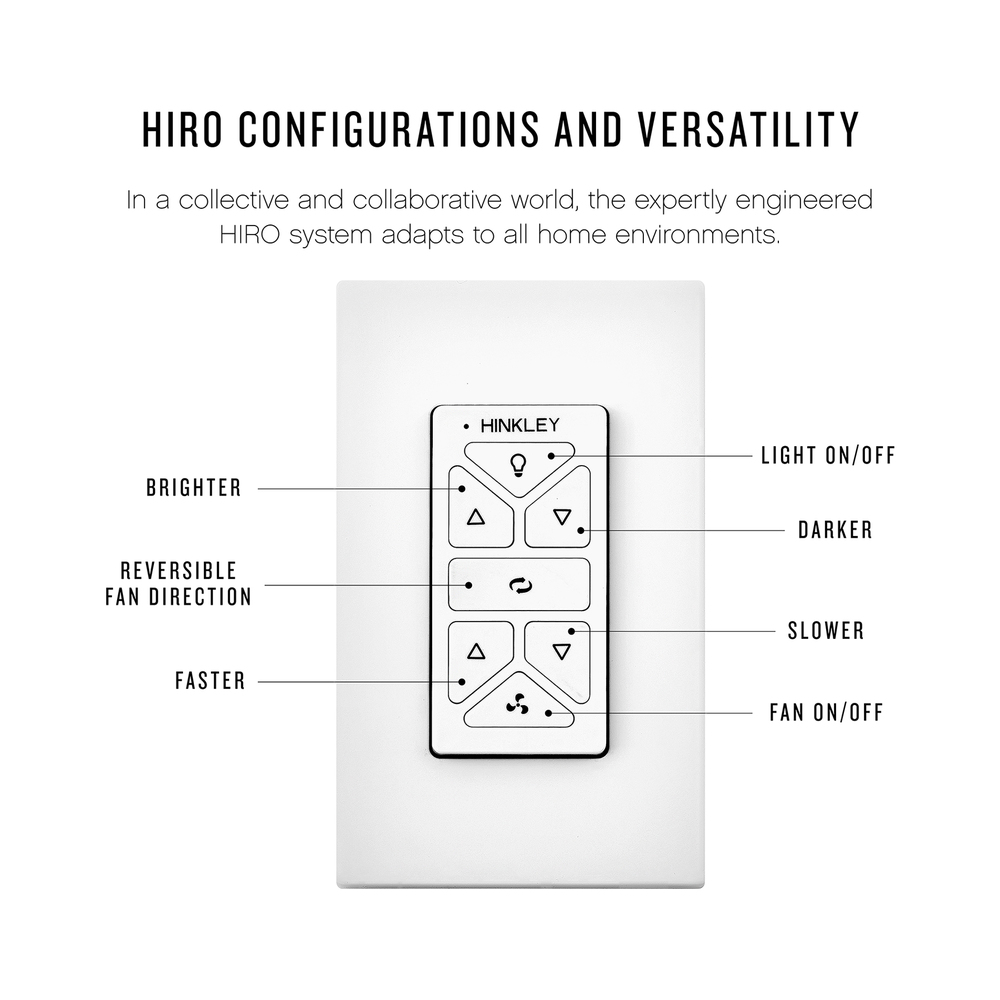

Fan Control included, HIRO Control - 6 Speed Reversing

Fans should be installed at a minimum of 7 feet from the floor

For more information on how to control your ceiling fan via the Hinkley Home Automation App, click here.

LED components carry a 5-year limited warranty

Merging the best of traditional and modern elements with a sophisticated and streamlined look

Motor carries a lifetime warranty

Suitable for use in wet (outdoor direct rain) locations as defined by NEC and CEC. Meets United States UL Underwriters Laboratories & CSA Canadian Standards Association Product Safety Standards

This item includes a 6" down rod. Other various lengths of down rods are available and sold separately to customize the installation height.

This item includes a light kit cover

WiFi compatible with included fan control

Technical Details

Details

Category:

Exterior

Fans

Subcategory:

Exterior Fans

Outdoor Fans

Finish:

Gray /vendors/vendorImages gray.jpg

Miscellaneous /vendors/vendorImages miscellaneous.jpg

Style:

Transitional

Option:

Title 24 /vendors/vendorImages ca title 24 compliant.jpg

Wet Rated

LED

Prop 65 /vendors/vendorImages prop65.png

Number of Blades:

8+ Blades

Location Rating:

Wet Rated

Category:

Fan

Finish:

Graphite

Style:

Transitional

Family:

Vantage

Glass:

Etched Opal

Voltage:

120 V

Number of Bulbs:

1 Bulbs

Air Flow Efficiency:

9087

Amperage:

0.41

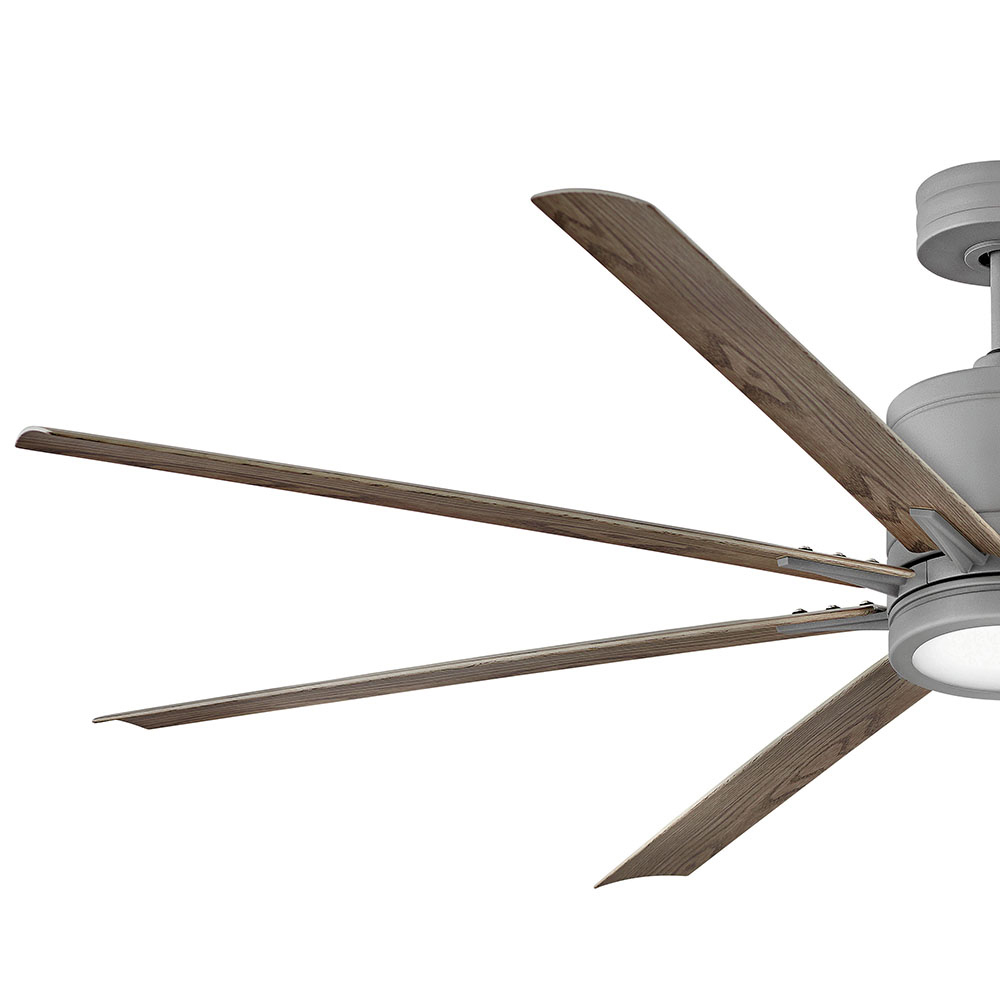

Blade Finish:

Driftwood

Blade Pitch:

12.5

Blade Span:

Blades Included:

Yes

Bulb Dimmable:

Yes - CL Type Dimmer (SSL7A)

Bulb Hours:

50000

Bulb Type:

LED

Canopy:

6 Dia. x 2.25 D

Introduction Date:

01/01/2020

Kelvin:

3000

Light Kit Included:

Yes

Lumens / Light Output:

1320

Material:

Steel

Motor Size:

DC-165

Motor Type:

Ship Carton Height:

Ship Carton Length:

31.5

Ship Carton Width:

10.5

Ship Weight:

26.5

Vendor Ship Method:

Parcel

Weight:

24.5

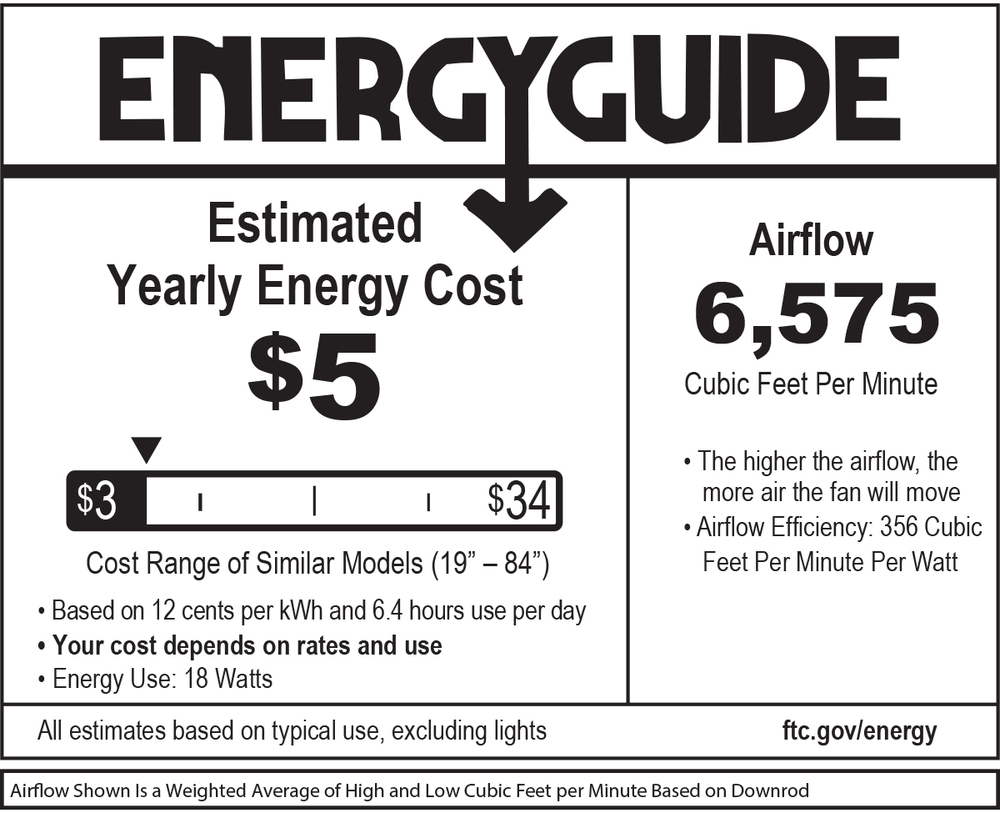

Airflow Avg:

6575

AMPS Avg:

0.24

Avg Energy Use:

Blade Material:

Composite

Blade Options Available:

Blade To Ceiling Height:

14.75

Blades Reversible:

Bulb CRI:

Bulb Included:

Yes

Control Type:

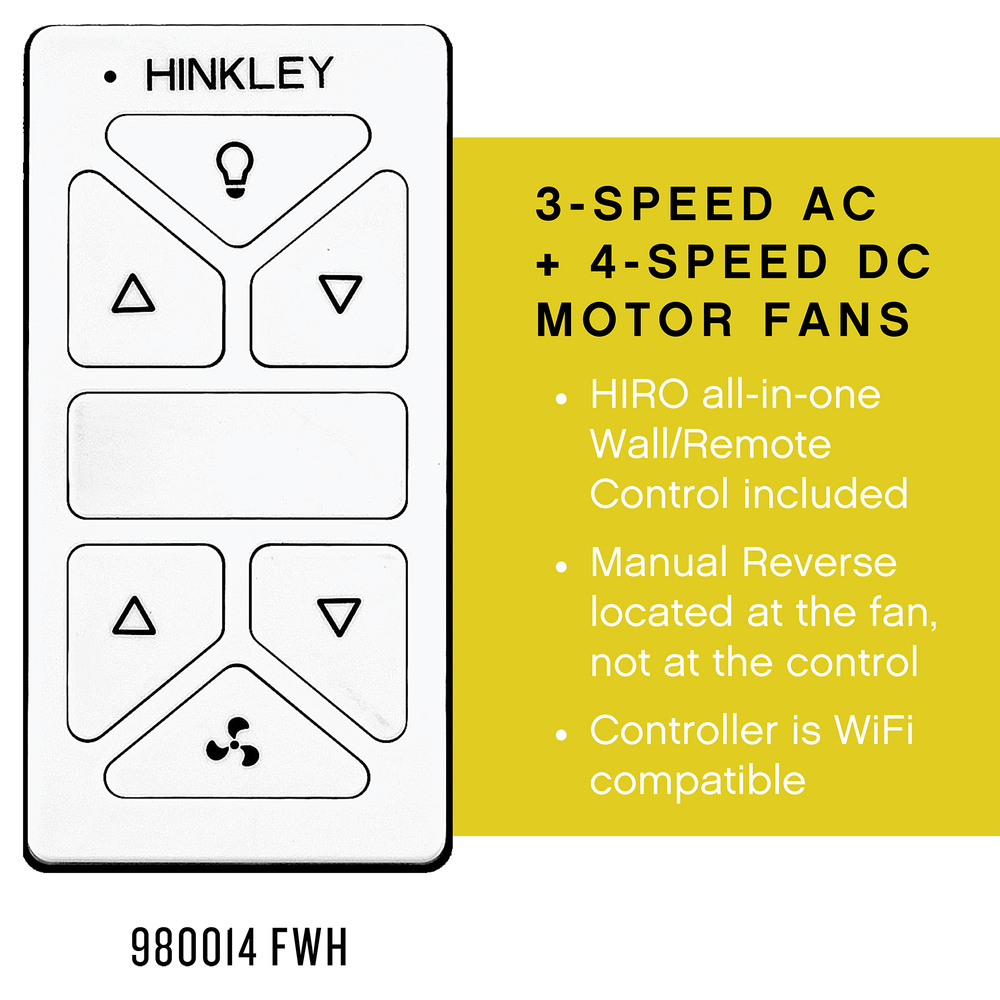

HIRO Control - 6 Speed Reversing

Country of Origin:

China

Dual Mount:

Efficiency Avg:

356

Efficiency High:

312

Energy Cost Avg:

Energy Cost High:

Energy Use High:

29.2

Fan Control:

Yes

Flush Mount Fan:

Incandescent Equivalency:

100 W

Light Kit Adaptable:

Light Source:

Integrated LED

Location Rating:

Wet Rated

Max Wattage:

16 W

Motor Fan Speed:

Number of Blades:

Operating Frequency:

Prop 65 Description:

View

Receiver Included:

Yes

Reversing Control:

Yes

RPMS Avg:

RPMS High:

108

Safety Rating:

ETL Approved, C-US Approved

Single Power Switch:

Yes

Slope:

Sloped Ceiling Adaptable:

Yes

Stand By Power:

0.2

Title 24:

Yes

WIFI Control Included:

Yes

WIFI Control Optional:

Manufactured By:

Hinkley
