Part Number: 902352FMW-LWA / Vendor ID Number: 87 / Custom:

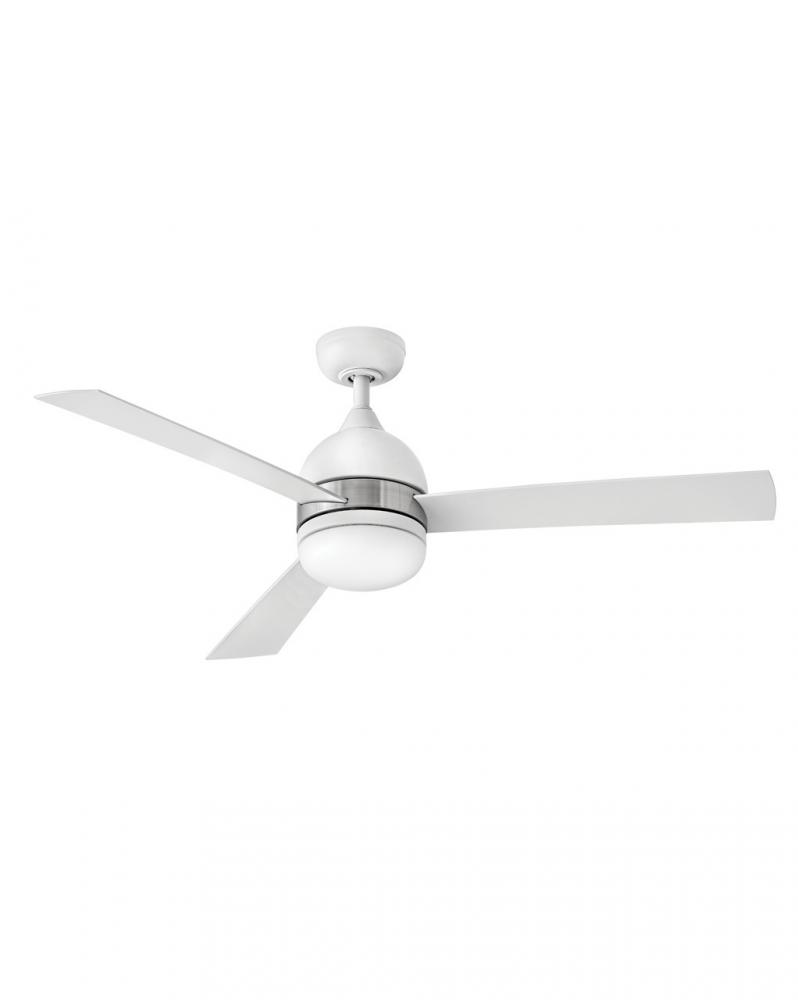

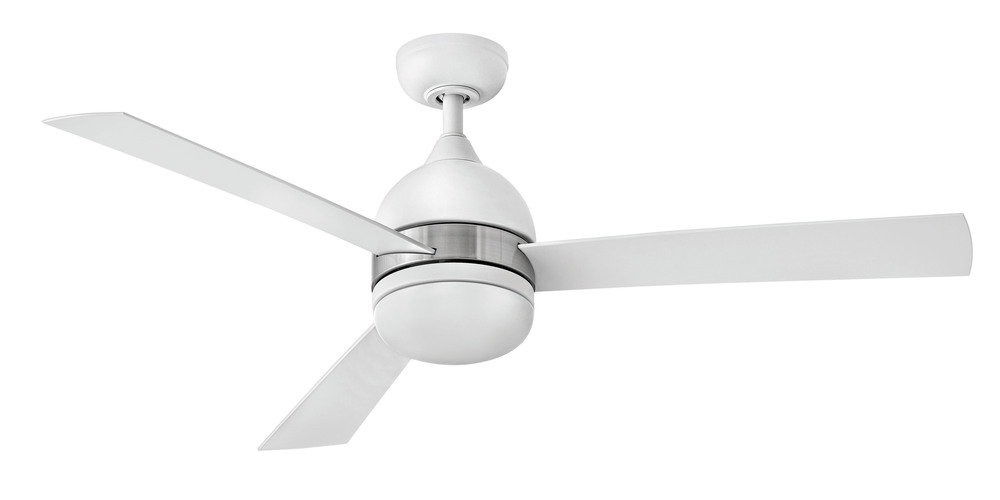

Verge 52" LED Fan

Verge 52" LED Fan
by Hinkley

Call For Price
42 In Stock
Qty
Product Specification

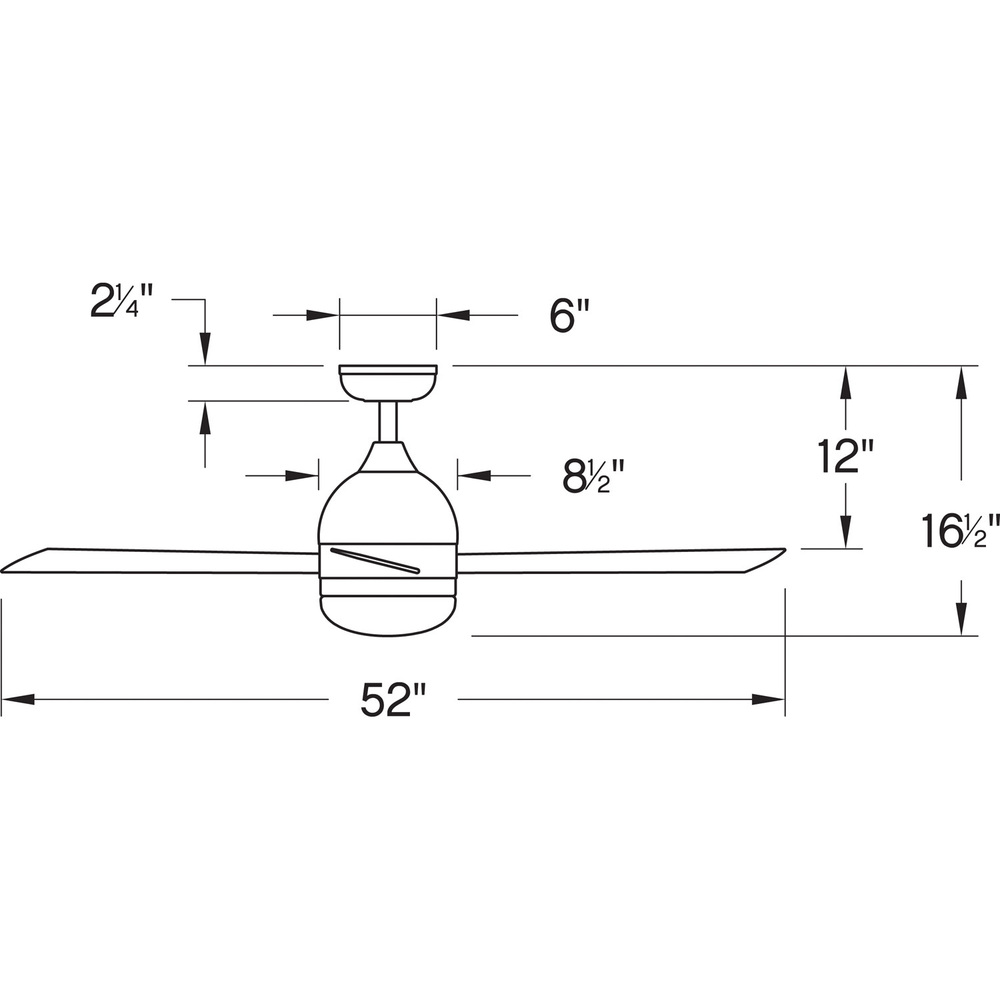

Dimensions
Height: 16.50"
Width: 52.00"
Length: 52.00"
Product Overview

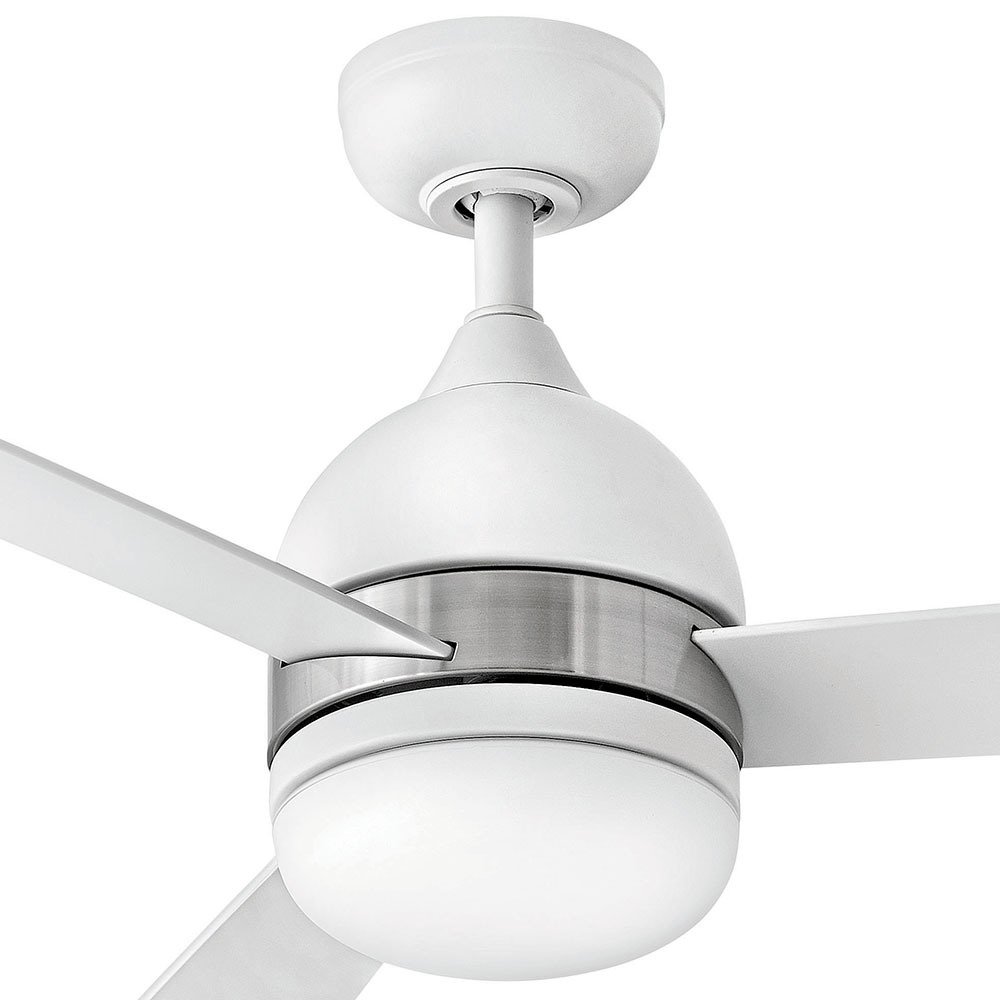

The bold silhouette of Verge combines form and function to deliver performance in style. Its minimalist blade design ensures maximum air performance while contemporary classic finish options like Brushed Nickel, Matte Black, Metallic Matte Bronze and Matte White add a subtle modern edge. Verge comes equipped with integrated LED lighting technology to deliver excellent energy efficiency. Designed for versatility, Verge can be used for both indoor and outdoor spaces. Blades are included with every fan.
Product Availability
    Item appears to be in stock and ready to ship
Additional Information
Accessory controls available that are compatible with your WiFi for the ultimate Smart Home connectivity
Blades, controls, switches, capacitors and hardware carry a 1-year warranty
Bold silhouette with dramatic details creates a modern statement

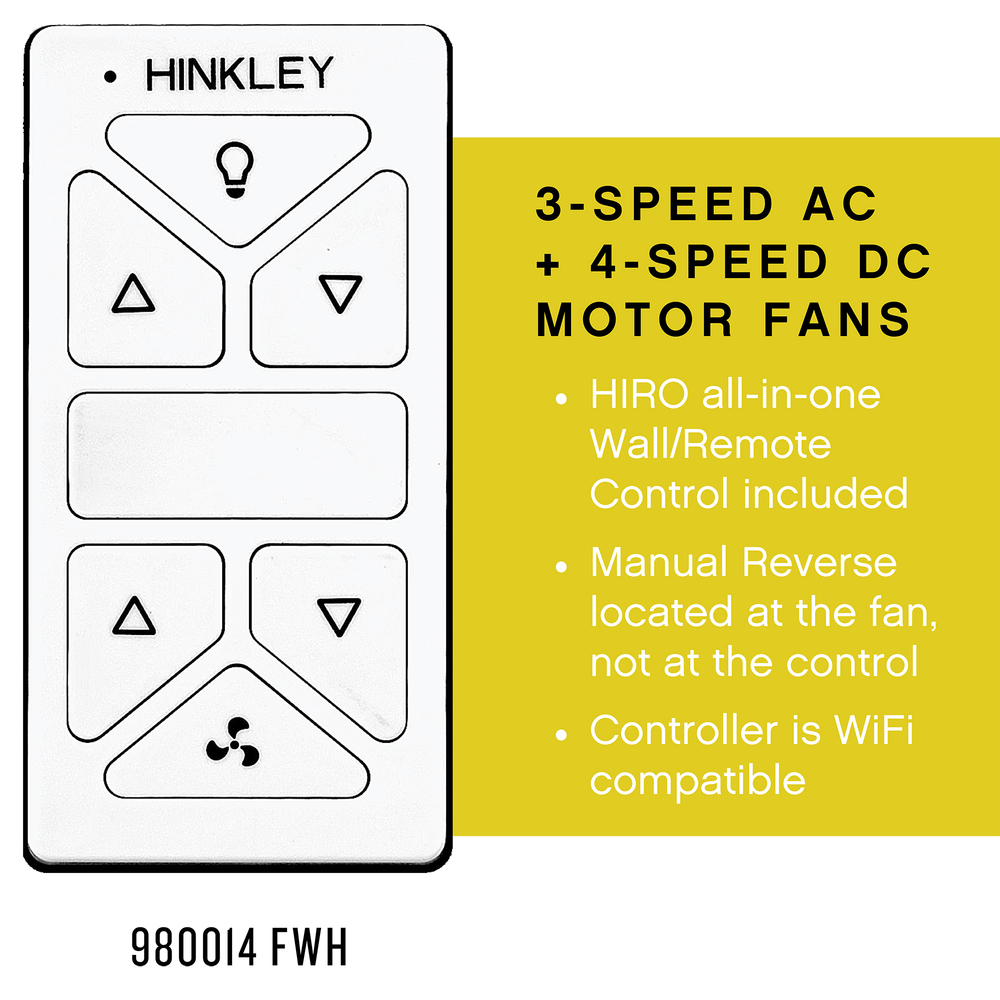

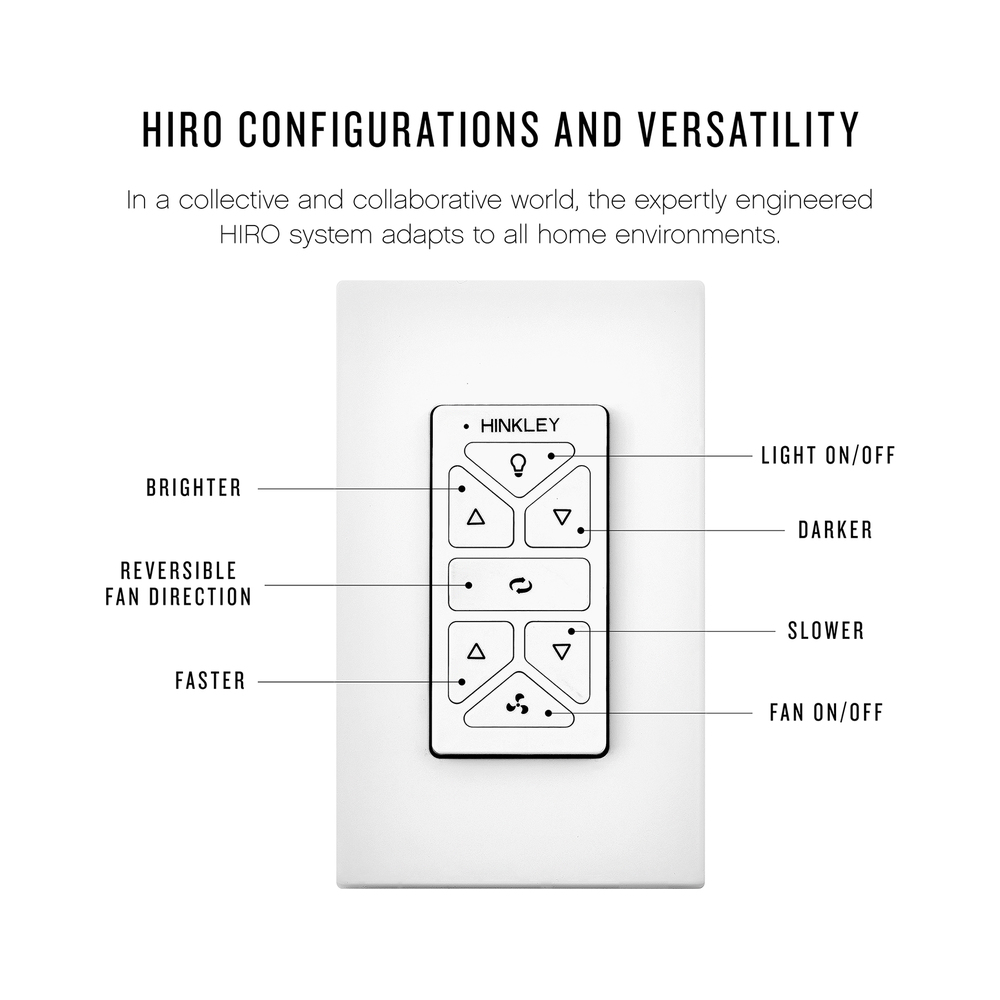

Fan Control included, HIRO Control - 3 Speed Non-Reversing
Fans should be installed at a minimum of 7 feet from the floor
For more information on how to control your ceiling fan via the Hinkley Home Automation App, click here.
LED components carry a 5-year limited warranty
Motor carries a lifetime warranty
Suitable for use in wet (outdoor direct rain) locations as defined by NEC and CEC. Meets United States UL Underwriters Laboratories & CSA Canadian Standards Association Product Safety Standards
This item includes a 4.5" down rod. Other various lengths of down rods are available and sold separately to customize the installation height.
This item may be hung on a sloped ceiling
Technical Details
Details
Category:
Exterior
Fans
Subcategory:
Exterior Fans
Outdoor Fans
Finish:
White /vendors/vendorImages white.jpg
Style:
Modern
Option:
Title 24 /vendors/vendorImages ca title 24 compliant.jpg
Wet Rated
LED
Prop 65 /vendors/vendorImages prop65.png
Number of Blades:
3 Blades
Location Rating:
Wet Rated
Category:
Fan
Finish:
Matte White
Style:
Modern
Family:
Verge
Glass:
Etched Opal
Voltage:
120 V
Number of Bulbs:
1 Bulbs
Air Flow Efficiency:
5226
Amperage:
0.44
Blade Finish:
Matte White
Blade Pitch:
20
Blade Span:
52
Blades Included:
Yes
Bulb Dimmable:
Yes - CL Type Dimmer (SSL7A)
Bulb Hours:
50000
Bulb Type:
LED
Canopy:
6 Dia. x 2.25 D
Introduction Date:
01/01/2020
Kelvin:
3000
Light Kit Included:
Yes
Lumens / Light Output:
1320
Material:
Steel
Motor Size:
153 x 17
Motor Type:
AC
Ship Carton Height:
12
Ship Carton Length:
26
Ship Carton Width:
11
Ship Weight:
18.92
Vendor Ship Method:
Parcel
Weight:
16.67
Accent Finish:
Brushed Nickel

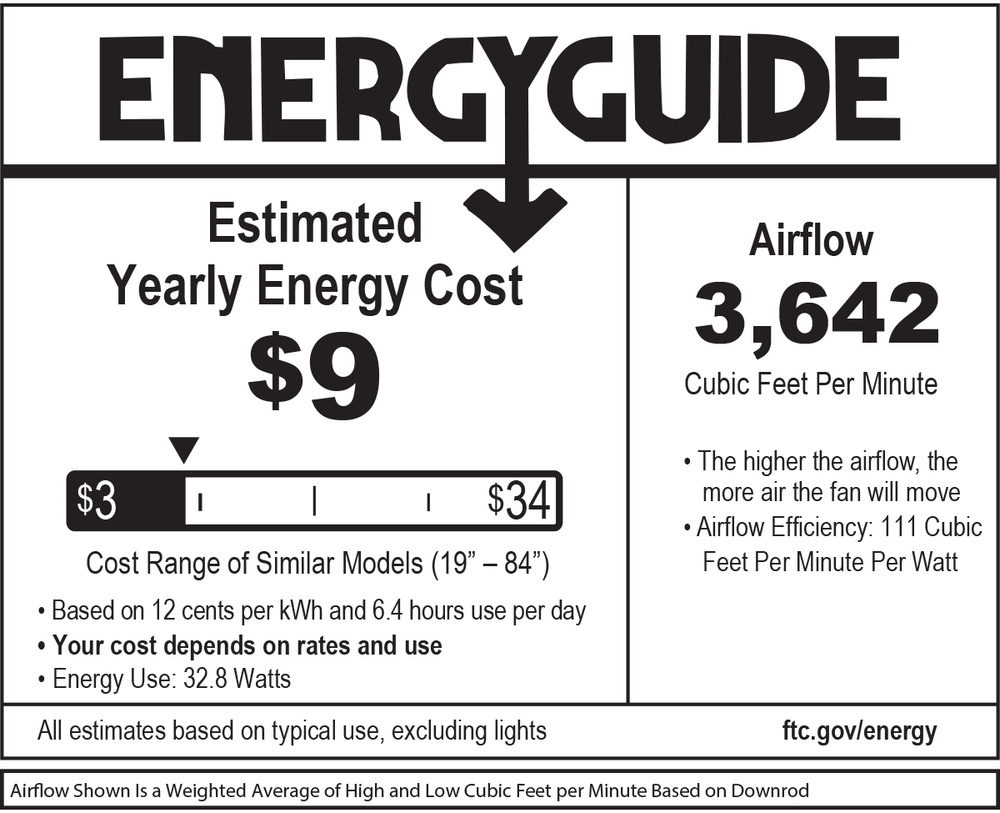

Airflow Avg:
3642
AMPS Avg:
0.31
Avg Energy Use:
32.8
Blade Material:
Composite
Blade Options Available:
No
Blade To Ceiling Height:
12
Blades Reversible:
No
Bulb CRI:
95
Bulb Included:
Yes
Control Type:
HIRO Control - 3 Speed Non-Reversing
Country of Origin:
China
Dual Mount:
No
Efficiency Avg:
111
Efficiency High:
100
Energy Cost Avg:
9
Energy Cost High:
15
Energy Use High:
52.4
Fan Control:
Yes
Flush Mount Fan:
No
Incandescent Equivalency:
100 W
Light Kit Adaptable:
No
Light Source:
Integrated LED
Location Rating:
Wet Rated
Max Wattage:
16 W
Motor Fan Speed:
3
Number of Blades:
3
Operating Frequency:
60
Prop 65 Description:
View
Receiver Included:
Yes
Reversing Control:
No
RPMS Avg:
115
RPMS High:
167
Safety Rating:
UL Approved, C-US Approved
Single Power Switch:
No
Slope:
20
Sloped Ceiling Adaptable:
Yes
Stand By Power:
0.2
Title 24:
Yes
WIFI Control Included:
No
WIFI Control Optional:
Yes
Manufactured By:
Hinkley
