Part Number: FP6285BDZ
/
Vendor ID Number: 90
/
Custom:

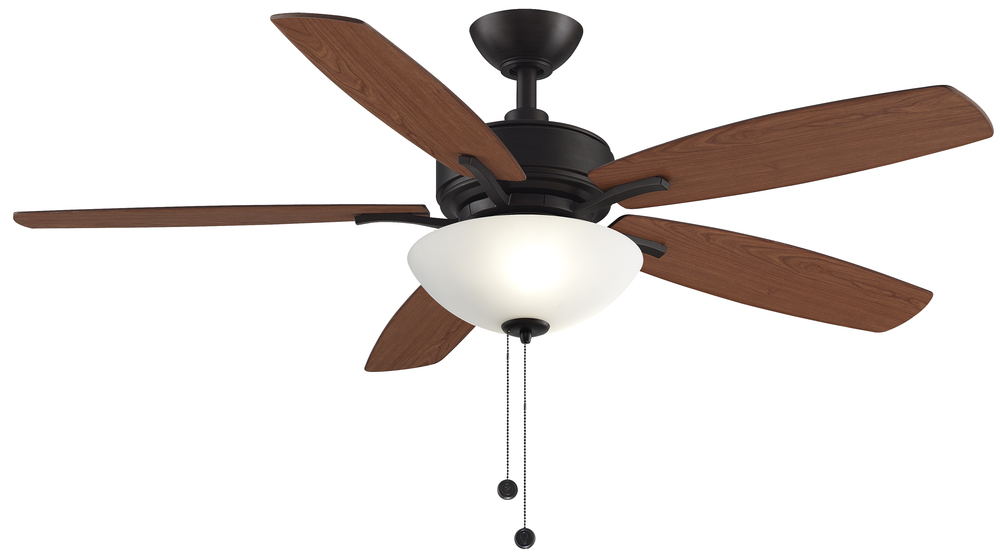

Aire Deluxe - 52 inch - DZ with LED Bowl LK
by Fanimation
Call For Price
149 In Stock
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 17.36"
Width: 52.00"
Length: 52.00"
Product Overview
Aire Deluxe from Fanimation is an exceptional transitional design for any and every indoor space. Available in 52 and 44 inch blade sweeps, three different finishes, a variety of blade finishes, and with the option of a light kit. With all of the possibilities, there is an Aire Deluxe for everyone. The Aire Deluxe features an AC motor that operates on three forward and three reverse speeds. *Dry Rated for indoor use *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use
Aire Deluxe from Fanimation is an exceptional transitional design for any and every indoor space. Available in 52 and 44 inch blade sweeps, three different finishes, a variety of blade finishes, and with the option of a light kit. With all of the possibilities, there is an Aire Deluxe for everyone. The Aire Deluxe features an AC motor that operates on three forward and three reverse speeds. *Dry Rated for indoor use *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use
Product Availability
-
Item appears to be in stock and ready to ship
Additional Information
3 Speed Ac Motor With Reverse Switch
3941 Cfm On High
Lifetime Limited Warranty
Pull Chain Operated
Set Of 5 Reversible 52 Inch Blades And (2) 9 Watt Led Bulbs And Light Kit Included
Wifi Or Bluetooth Compatible (required Controls Sold Separately)
Info & Guides
Technical Details
Energy Information at High Speed
Airflow:
4842 Cubic Feet per Minute
Electricity Rate:
55 Watts (excluded lights)
Airflow Efficiency:
88 Cubic Feet Per Minute Per Watt
Details
Category:
Fans
Subcategory:
Ceiling Fans
Finish:
Bronze /vendors/vendorImages bronze.jpg
Style:
Traditional
Option:
Dry Rated
LED
Glass Finish or Style:
Frosted
White/Off-White
Number of Blades:
5 Blades
Subfinish:
Dark Bronze
Location Rating:
Dry Rated
Wattage:
9w
Category:
Fan-Uni
Finish:
Dark Bronze
Option:
Dry Rated
Family:
Aire Deluxe
Glass:
White Frosted
Voltage:
120 V
Number of Bulbs:
2 Bulbs
Additional Info:
3 speed AC motor with reverse switch
3941 CFM on High
Lifetime Limited Warranty
Pull Chain Operated
Set of 5 reversible 52 inch blades and (2) 9 watt LED bulbs and light kit included
WiFi or bluetooth compatible (required controls sold separately)
Air Flow CFM:
4842
Air Flow Efficiency:
88
Amperage:
0.46
Blade Finish:
Cherry/Dark Walnut
Blade Pitch:
12
Blade Span:
52
Bulb Type:
9 Watt Led Bulb
Canopy:
5.91 Dia x 2.13 H
Diameter:
9.06
Down Rod Included:
4.5
Electricity Used:
55
Harmonized Codes:
8414.51.3000
Kelvin:
2700
Length:
52
Light Kit Included:
Yes
Lumens / Light Output:
1620
Material:
Wood
Motor Fan Speed:
3
Motor RPM:
158
Motor Size:
153 X 15
Motor Type:
AC
Pull Chain Included:
Yes
Ship Carton Height:
10.5
Ship Carton Length:
23
Ship Carton Width:
12.8
Ship Weight:
19.67
Sold By:
Each
Warranty:
Limited Lifetime
Weight:
17.26
Airflow Efficiency Low:
186
Airflow Efficiency Medium:
124
Avg Airflow Efficiency:
102
Avg CFM Energy:
3476
Avg Energy Use Watts:
34
Avg Estimated Yearly Energy Cost:
10
Avg Estimated Yearly Energy Cost on HIGH:
15
Blade Finish Method:
Paper Overlay
Blade Material:
Wood
Blade Reversible:
Yes
Blade Sweep:
52
Bulb Base:
E26
Bulb CRI:
90
Bulb Wattage:
9
Canopy Diameter:
5.91 Dia
Canopy Height:
2.13 H
Cap Included:
No
Carton Cubic Feet:
1.79
Cartons Per Unit:
1
Case Height:
10.5
Case Length:
23
Case Quantity:
1
Case Weight Pounds:
19.67
Case Width:
12.8
CEC Uploaded:
Yes
Ceiling To Blade Edge:
10.59
Ceiling To Bottom:
17.36
CFM Low:
1927
CFM Medium:
3222
Compatible Accessories:
CCK8002DZ, DR1-12DZ, DR1-18DZ, DR1-24DZ, DR1-36DZ, DR1-48DZ, DR1-60DZ, DR1-72DZ, DR1-CPDZ, SCK1-52DZ
Compatible Controls:
BTCR9, BTR9, C4, CRL4LA, CRL4WH, CRL8TS
Compatible Wall Controls:
CW1SWLA, CW1SWWH, CW2LA, CW2WH, CW60WH, CWRL4LA, CWRL4WH
Country of Origin:
China
CRI:
90
Current Draw High:
0.46
Current Draw Low:
0.2
Current Draw Medium:
0.33
DOE Classification:
LSSD
DOE-FTC Uploaded:
Yes
DOEFTC Uploaded:
Yes
Downrod Length:
4.5
Dry Rated:
Yes
Exempt from DOE Procedure:
No
Fan Energy Star:
No
Housing Diameter:
9.06
Included Control Type:
Pull Chain
Leadwire:
54
Light Kit Energy Star:
No
Max Ceiling Slope:
19
Max Watt:
55
Maximum Slope Degree:
19
Motor Finish Method Type:
Painted
Motor Reversible:
Yes
Number of Blades:
5
Number Of Speeds:
3
Regulated Product:
Yes
Reverse Switch Location:
Switch Housing
RPM High (VI):
158
RPM Low (II):
67
RPM Medium (IV):
113
Safety Rating:
UL Approved, cUL Approved
Voltage Cycles:
60 hz
Watts Low:
10
Watts Medium:
26
Watts Per Bulb:
9
Manufactured By:
Fanimation
