Part Number: FP6284GR
/
Vendor ID Number: 90
/
Custom:

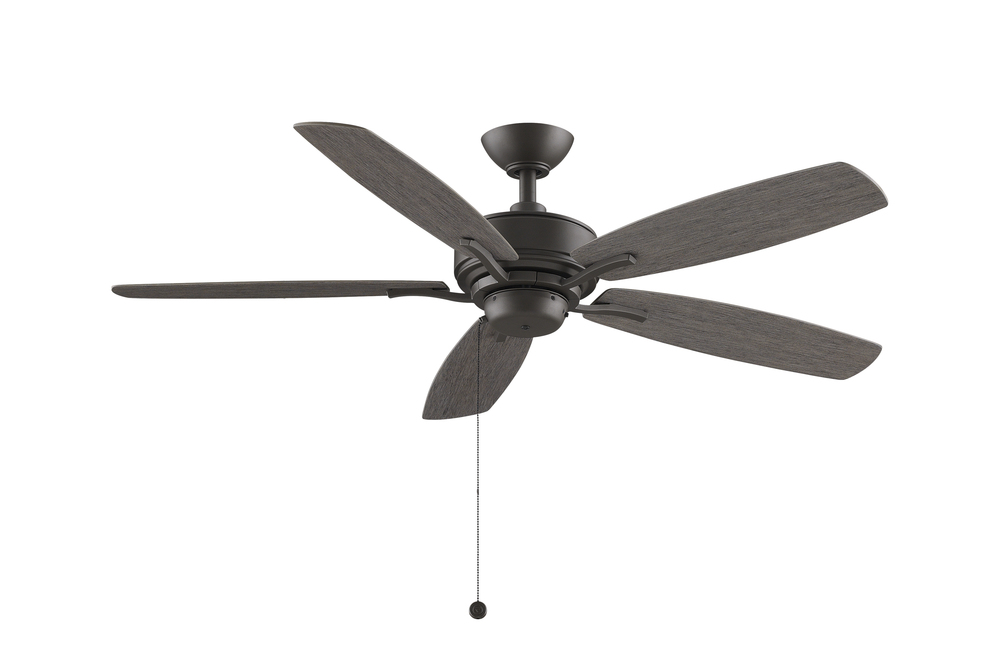

Aire Deluxe - 52 inch - GR with WE Blades
by Fanimation
Call For Price
Call for Availability
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 12.77"
Width: 52.00"
Length: 52.00"
Product Overview
Aire Deluxe from Fanimation is an exceptional transitional design for any and every indoor space. Available in 52 and 44 inch blade sweeps, three different finishes, a variety of blade finishes, and with the option of a light kit. With all of the possibilities, there is an Aire Deluxe for everyone. The Aire Deluxe features an AC motor that operates on three forward and three reverse speeds. *Dry Rated for indoor use *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use
Aire Deluxe from Fanimation is an exceptional transitional design for any and every indoor space. Available in 52 and 44 inch blade sweeps, three different finishes, a variety of blade finishes, and with the option of a light kit. With all of the possibilities, there is an Aire Deluxe for everyone. The Aire Deluxe features an AC motor that operates on three forward and three reverse speeds. *Dry Rated for indoor use *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use
Product Availability
-
Item is usually in stock, but we'll be in touch if there's a problem
Additional Information
3 Speed Ac Motor With Reverse Switch
3941 Cfm On High
Lifetime Limited Warranty
Pull Chain Operated
Set Of 5 Reversible 52 Inch Blades And (2) 9 Watt Led Bulbs And Light Kit Included
Wifi Or Bluetooth Compatible (required Controls Sold Separately)
Info & Guides
Technical Details
Energy Information at High Speed
Airflow:
4908 Cubic Feet per Minute
Electricity Rate:
55 Watts (excluded lights)
Airflow Efficiency:
89 Cubic Feet Per Minute Per Watt
Details
Category:
Fans
Subcategory:
Ceiling Fans with Light
Finish:
Gray /vendors/vendorImages gray.jpg
Miscellaneous /vendors/vendorImages miscellaneous.jpg
Style:
Traditional
Option:
Dry Rated
Number of Blades:
5 Blades
Location Rating:
Dry Rated
Category:
Fan-Uni
Finish:
Matte Greige
Option:
Dry Rated
Family:
Aire Deluxe
Voltage:
120 V
Additional Info:
3 speed AC motor with reverse switch
3941 CFM on High
Lifetime Limited Warranty
Pull Chain Operated
Set of 5 reversible 52 inch blades and (2) 9 watt LED bulbs and light kit included
WiFi or bluetooth compatible (required controls sold separately)
Air Flow CFM:
4908
Air Flow Efficiency:
89
Amperage:
0.46
Blade Finish:
Weathered Wood
Blade Pitch:
12
Canopy:
5.91 Dia x 2.13 H
Diameter:
9.06
Down Rod Included:
4.5
Electricity Used:
55
Harmonized Codes:
8414.51.3000
Length:
52
Light Kit Included:
No
Material:
Wood
Motor Fan Speed:
3
Motor RPM:
158
Motor Size:
153 X 15
Motor Type:
AC
Ship Carton Height:
9.3
Ship Carton Length:
23
Ship Carton Width:
10.9
Ship Weight:
17.67
Sold By:
Each
Warranty:
Limited Lifetime
Weight:
15.36
Airflow Efficiency Low:
183
Airflow Efficiency Medium:
126
Avg Airflow Efficiency:
102
Avg CFM Energy:
3496
Avg Energy Use Watts:
34
Avg Estimated Yearly Energy Cost:
10
Avg Estimated Yearly Energy Cost on HIGH:
15
Blade Finish Method:
Paper Overlay
Blade Material:
Wood
Blade Reversible:
No
Blade Sweep:
52
Canopy Diameter:
5.91 Dia
Canopy Height:
2.13 H
Cap Included:
No
Carton Cubic Feet:
1.35
Cartons Per Unit:
1
Case Height:
9.3
Case Length:
23
Case Quantity:
1
Case Weight Pounds:
17.67
Case Width:
10.9
CEC Uploaded:
Yes
Ceiling To Blade Edge:
10.59
CFM Low:
1897
CFM Medium:
3288
Compatible Accessories:
CCK8002GRW, DR1-12GR, DR1-18GR, DR1-24GR, DR1-36GR, DR1-48GR, DR1-60GR, DR1-72GR, DR1-CPGR, SCK1-52GR
Compatible Controls:
BTCR9, BTR9, CR500, CRL4WH, WFR50
Compatible Wall Controls:
CW5LA, CW5WH, CWRL4LA, CWRL4WH, WC1WH, WC2WH, WR500WH, WR501WH
Country of Origin:
China
Current Draw High:
0.46
Current Draw Low:
0.2
Current Draw Medium:
0.33
DOE Classification:
LSSD
DOE-FTC Uploaded:
Yes
DOEFTC Uploaded:
Yes
Downrod Length:
4.5
Dry Rated:
Yes
Exempt from DOE Procedure:
No
Fan Energy Star:
No
Housing Diameter:
9.06
Included Control Type:
Pull Chain
Leadwire:
54
Max Ceiling Slope:
19
Max Watt:
55
Maximum Slope Degree:
19
Motor Finish Method Type:
Painted
Motor Reversible:
Yes
Number of Blades:
5
Number Of Speeds:
3
Regulated Product:
Yes
Reverse Switch Location:
Switch Housing
RPM High (VI):
158
RPM Low (II):
66
RPM Medium (IV):
113
Safety Rating:
UL Approved, cUL Approved
Voltage Cycles:
60 hz
Watts Low:
10
Watts Medium:
26
Manufactured By:
